Io shelter 4 modules

Designed by Dimcar Design Department

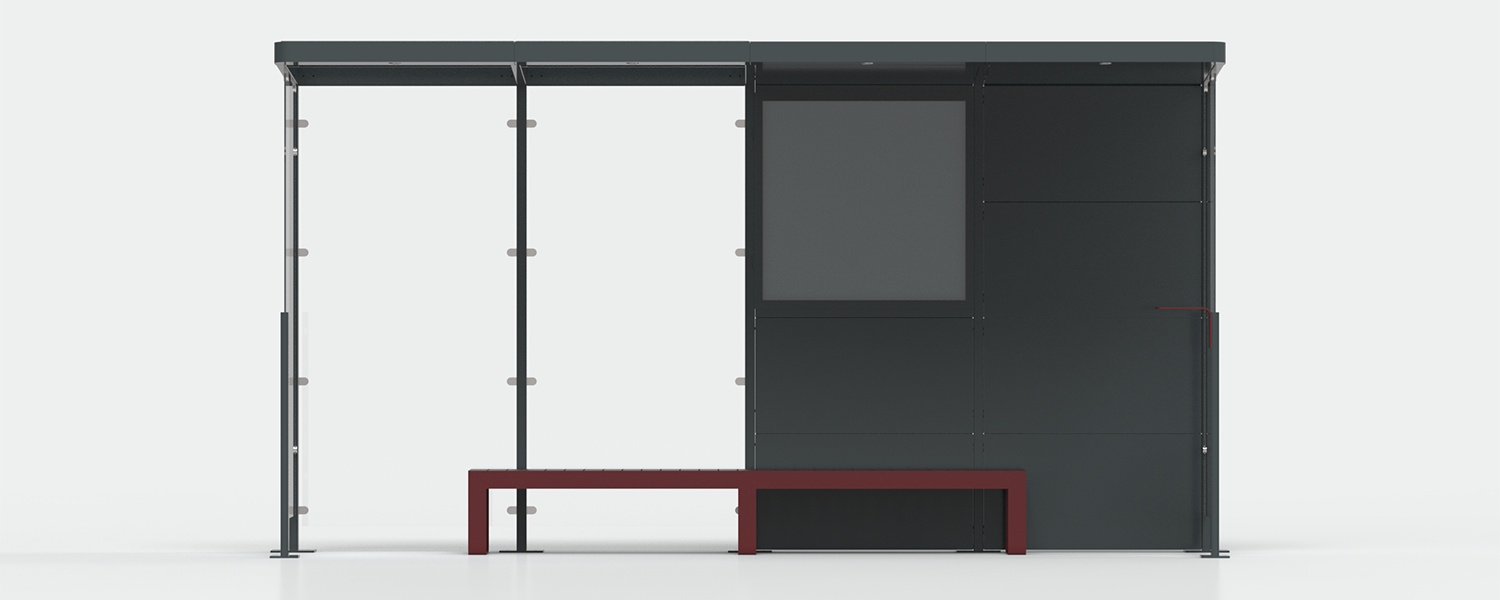

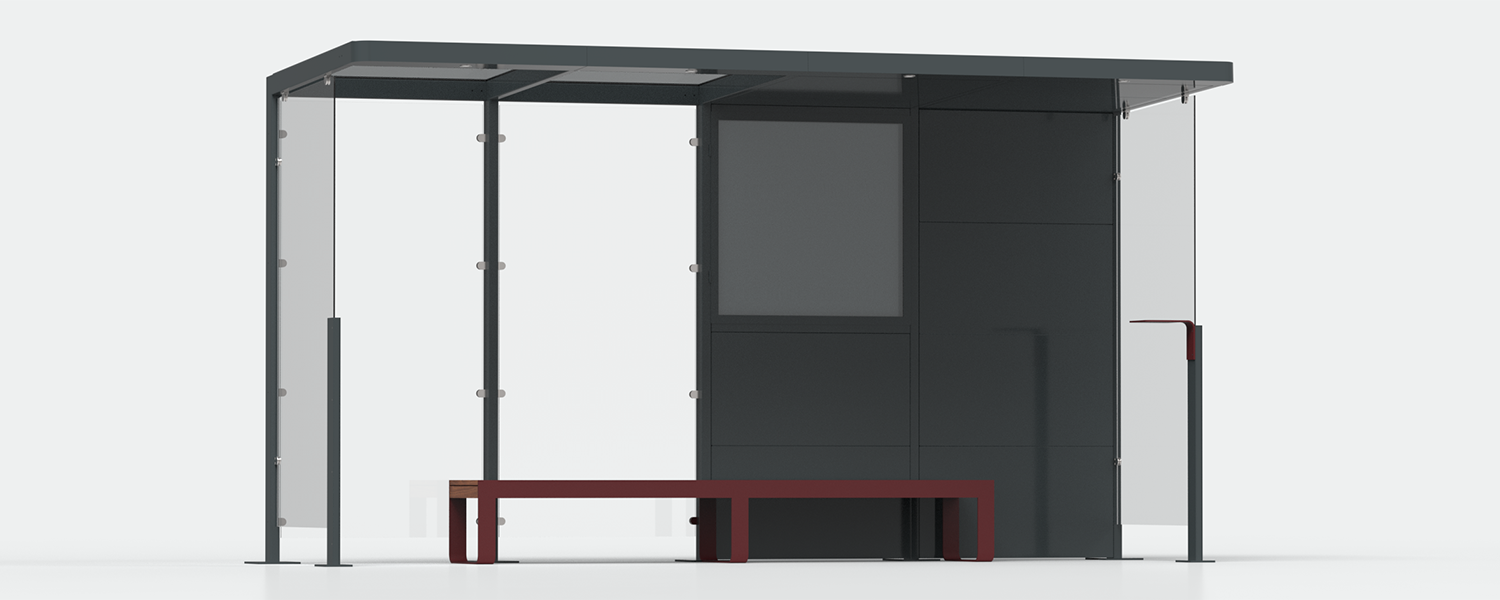

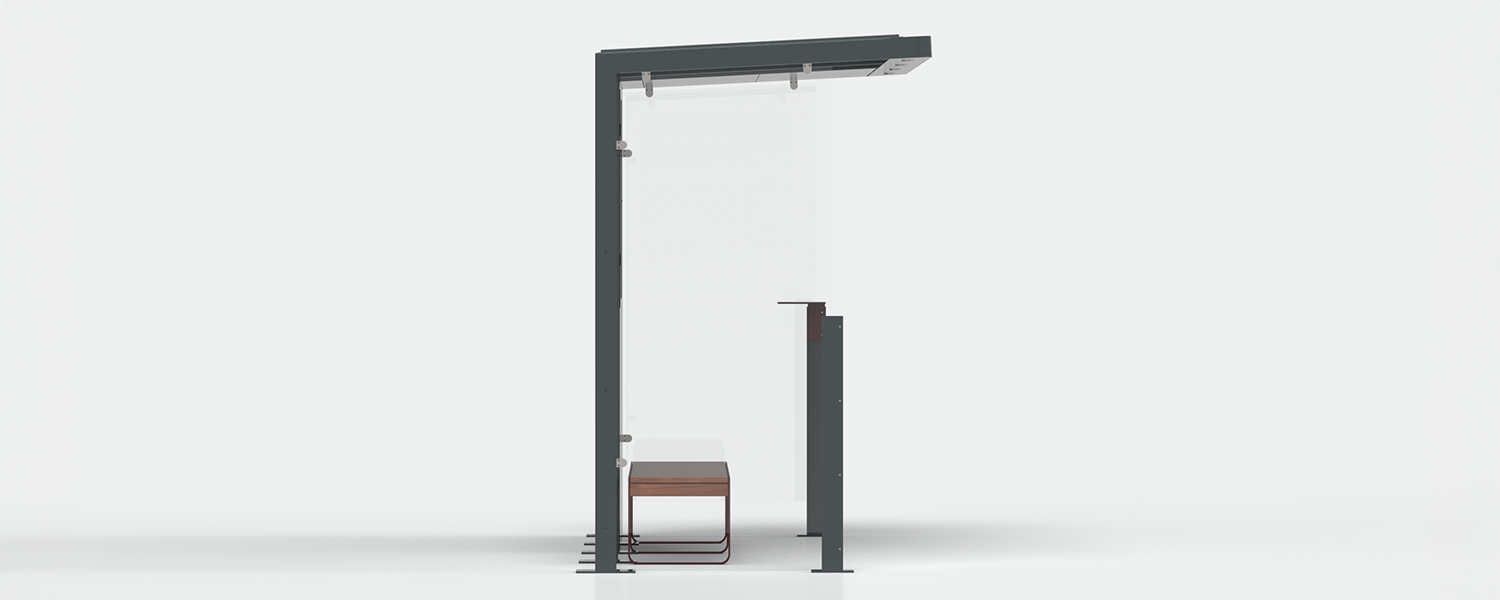

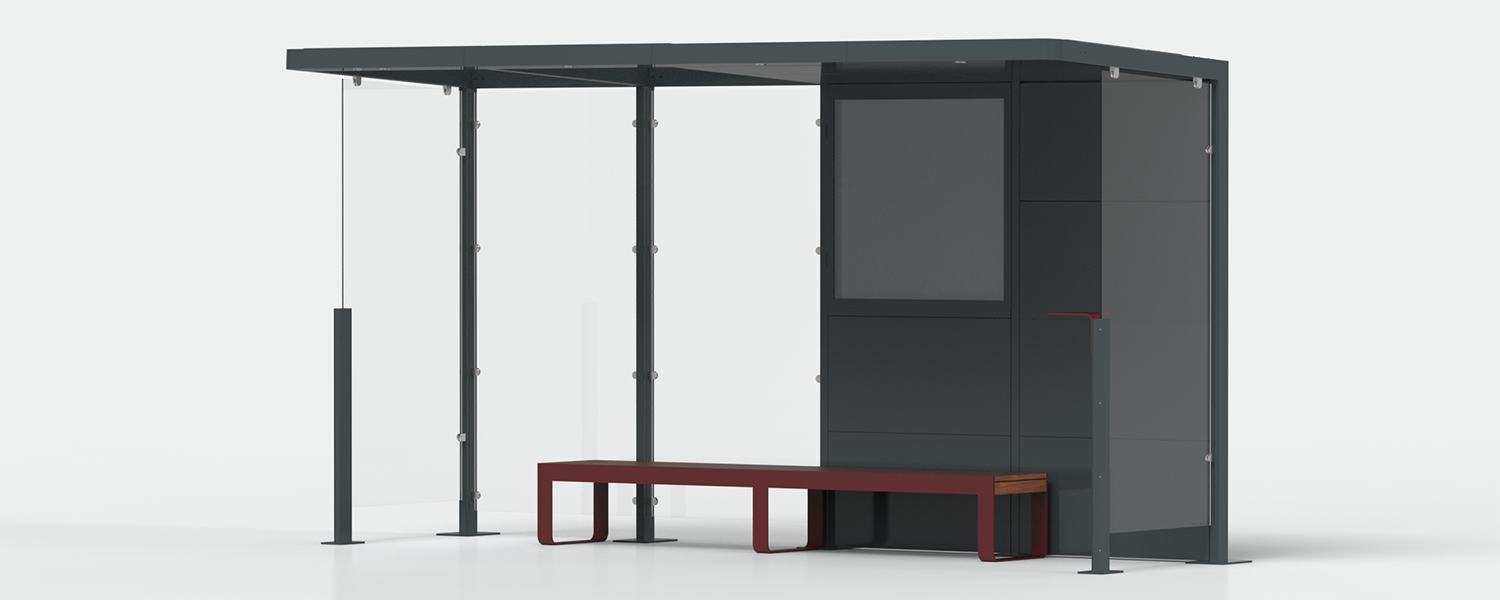

Io shelter 4 modules - composition with two glass modules, noticeboard module, sheet metal module, side walls, table and long bench.

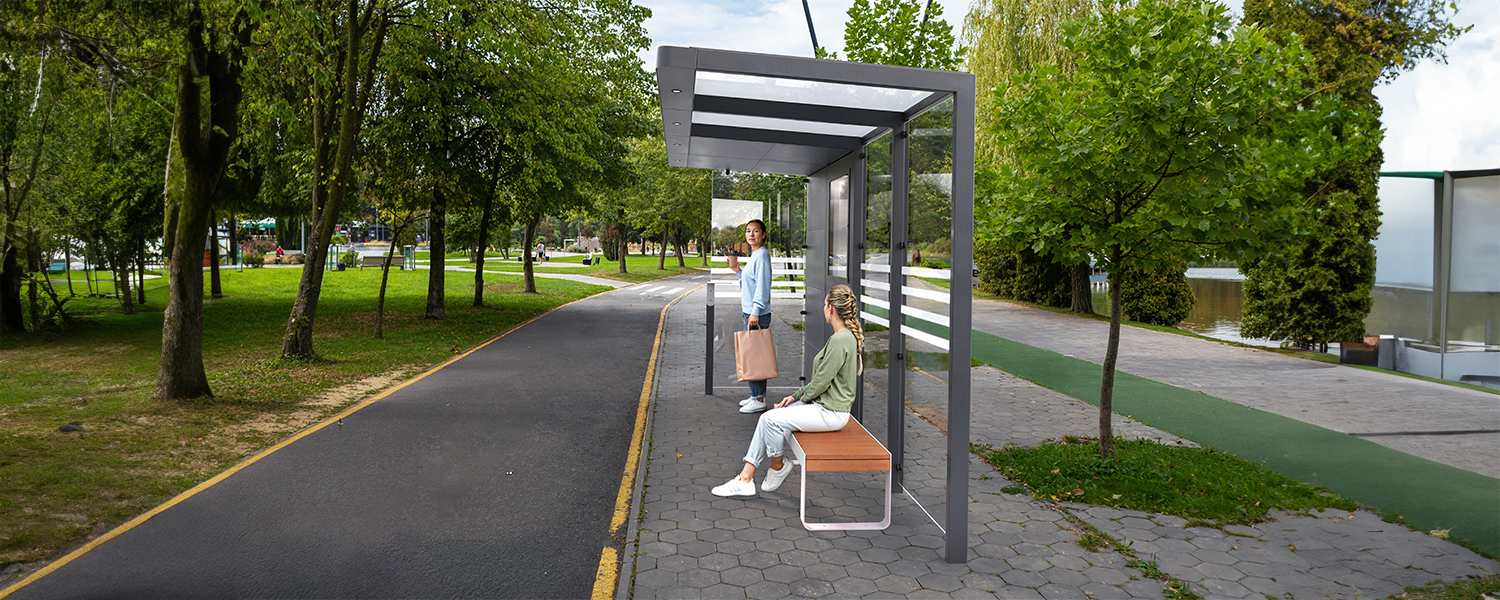

Io shelter, thanks to the combination of different optional features, generates infinite platform variants capable of adapting to any urban environment, allowing the coexistence of different functional aspects.

Creative design and advanced functionality
Load-bearing elements made of rectangular section galvanized steel profiles, with uprights equipped at the base with plates for anchoring to the ground, obtained by laser cutting and made of galvanized sheet metal. Covering frame made of front box made with shaped panels in galvanized sheet metal with shaping at the end.

Technical features
  •  Infill: The shelter is made up of four modules, each characterized by a different type of rear and upper covering infill: Left modules (front view) with infill made of transparent laminated safety glass. Rear glass installed on the load-bearing structure using special stainless steel supports, and covering glass equipped with a special frame in galvanized steel profiles with appropriate gaskets. Central right module (front view) consisting of a rear noticeboard equipped with an opening door with a special lock, and a transparent compact polycarbonate facade, and lower and rear infill module made of shaped galvanized steel panels. Compact polycarbonate covering, and internal false ceiling, made of shaped galvanized steel panels. Right module (front view) with front and rear infill made of shaped galvanized steel panels. Compact polycarbonate covering and internal false ceiling, made of shaped galvanized steel panels.
  •  Lighting: On the front of the roof, the shelter is equipped with lighting for each module. All the electrical components are enclosed in a special compartment inside the structure with the power cable outlet at the base of the structure.

Optional

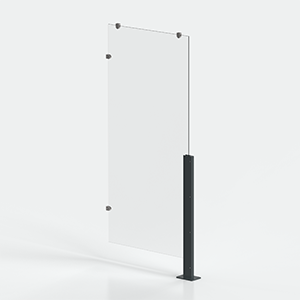

Side walls in laminated safety glass (code 604-PE-O-V), transparent with stainless steel supports and front support made of galvanized sheet metal obtained by laser cutting and equipped with a plate at the base for fixing to the ground.

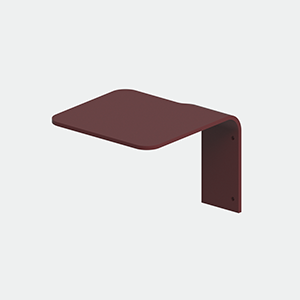

On the right side wall (front view) the shelter is equipped with the optional table (code 604-PE-O-T) made with a single support in galvanized sheet metal and obtained by laser cutting.

The composition is completed with a short bench (code 604-PE-O-PC), consisting of a metal frame made of galvanized steel profiles with a shape at the base. The seat is covered with slats in fine okumè wood. The bench is equipped with holes for fixing to the ground.

Request more information
To discover all the technical details of the product, you can download the detailed technical sheet.

The Io shelter is also available on the "acquistinretepa - MEPA" portal by searching for the code DIMCAR604PE4COMP1 "in product codes"

If you would like a personalized quote or a custom finish, contact us today!
