Designed by Dimcar Design Department

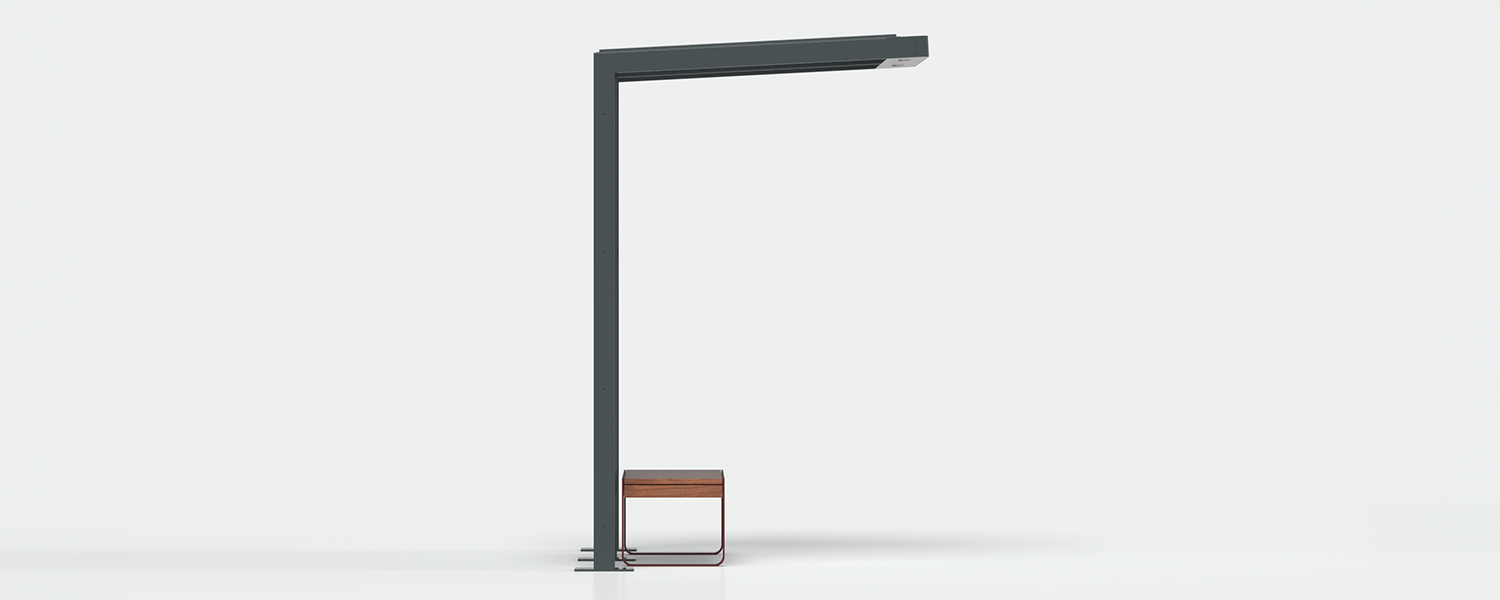

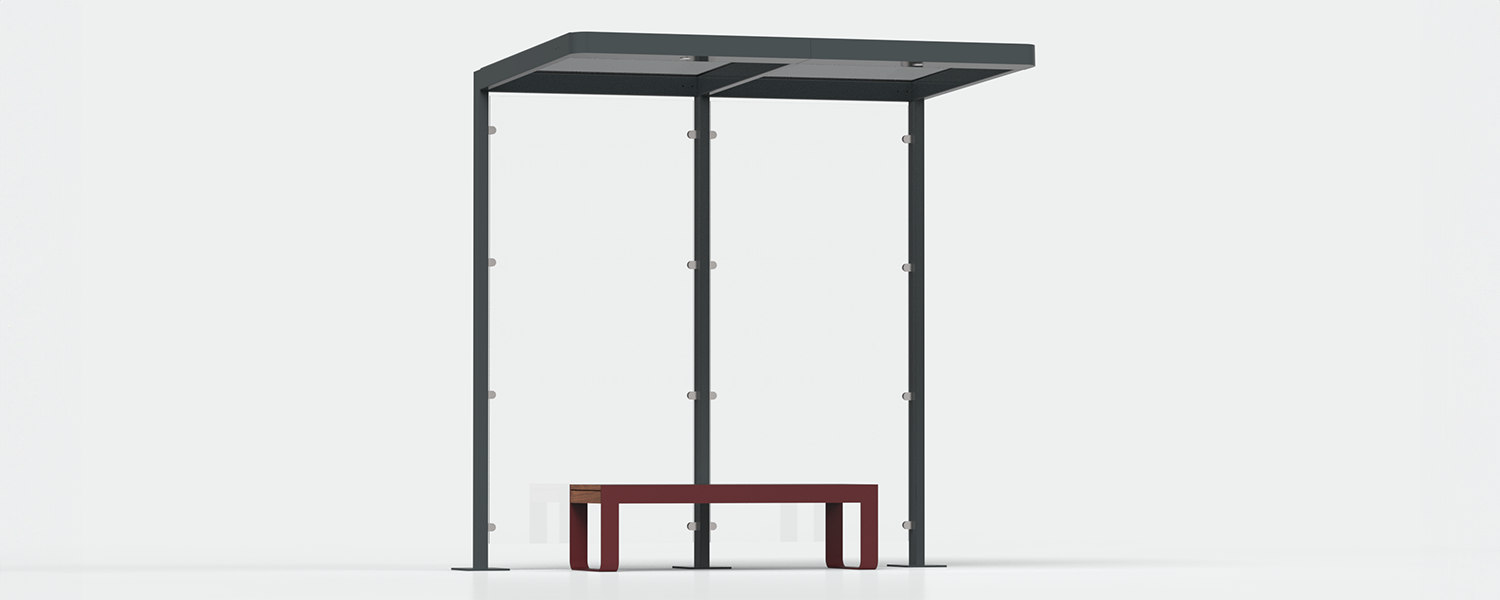

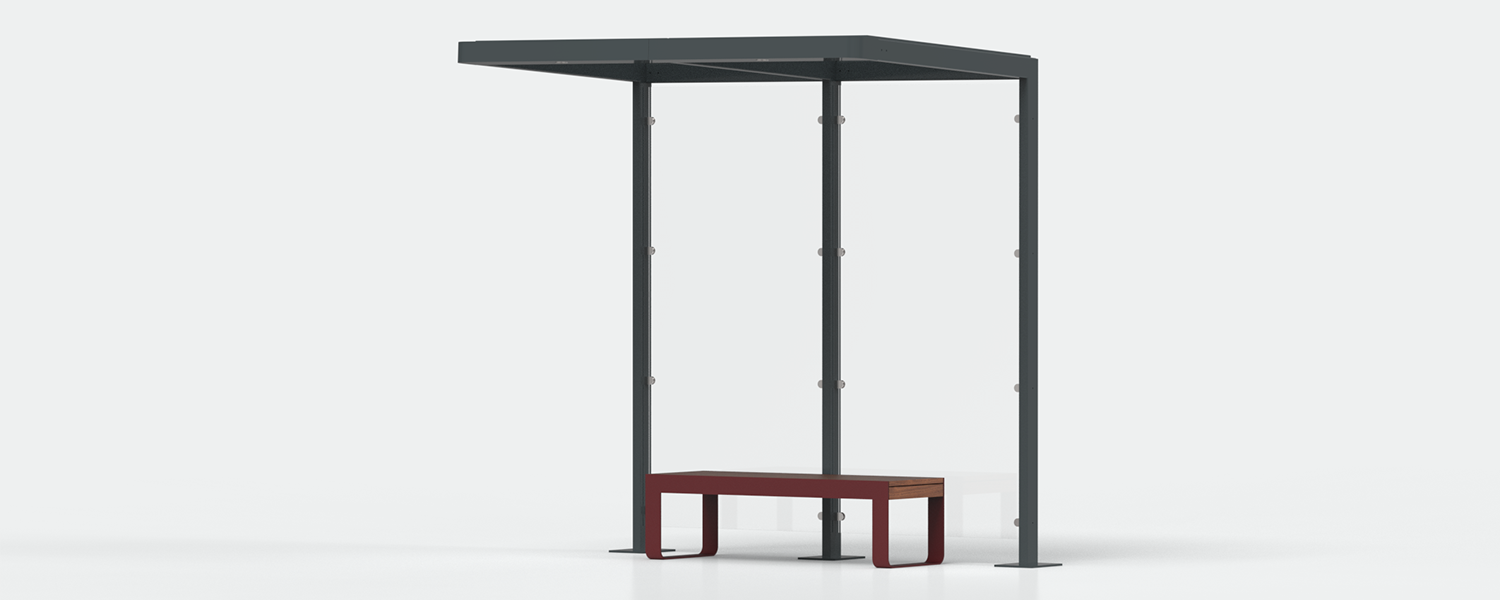

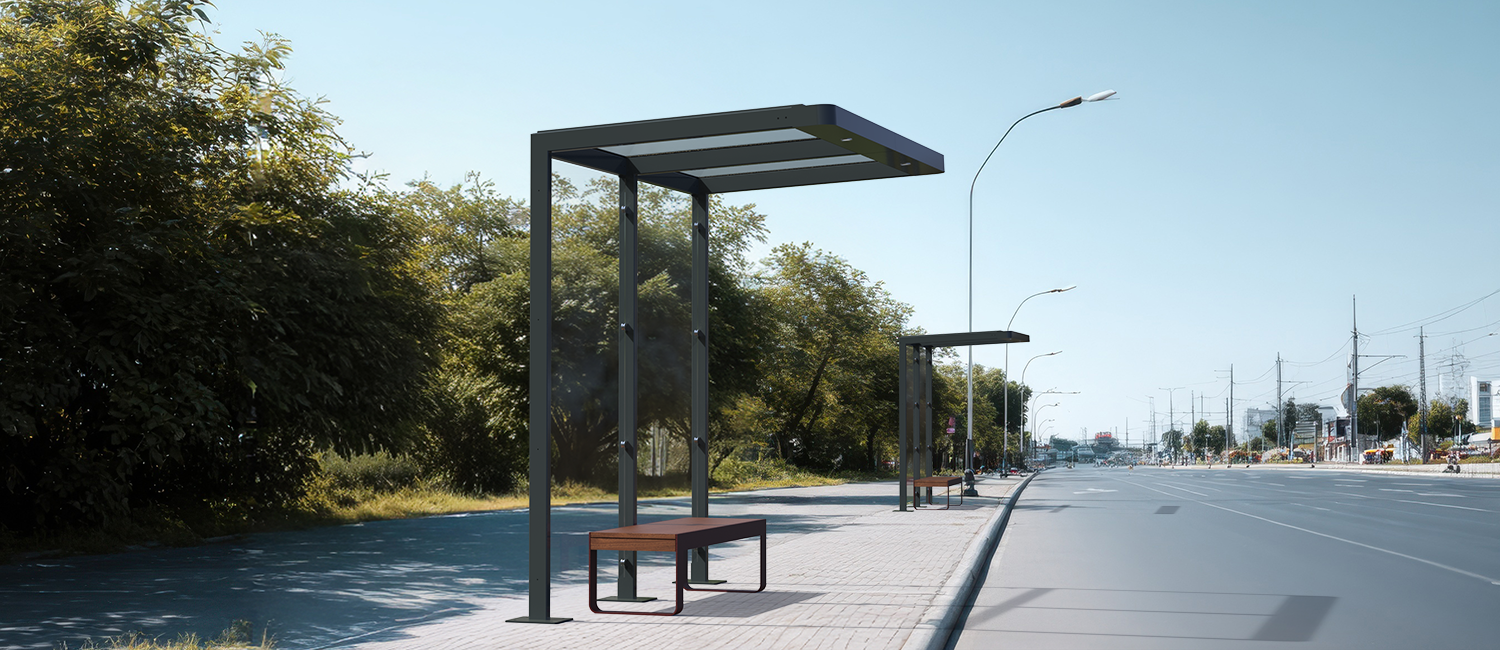

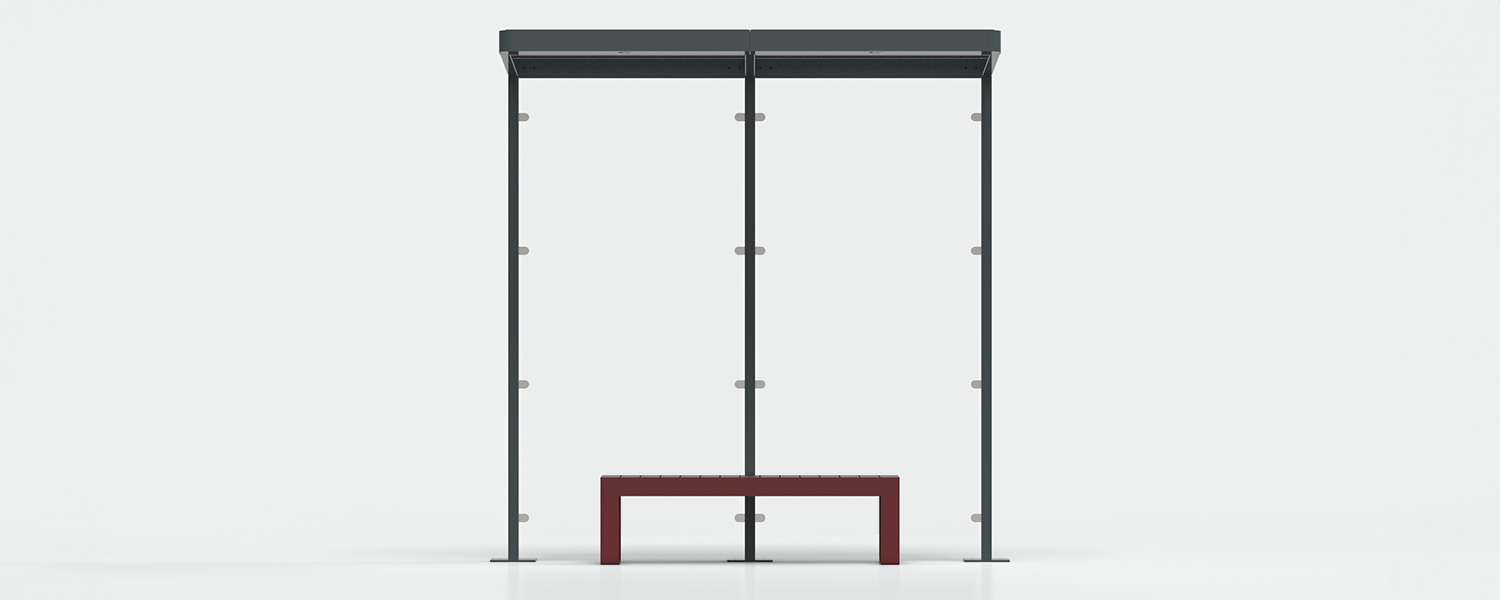

Io 2-module shelter - composition with glass modules, short bench
Thanks to the combination of different optional features, generates infinite platform variants capable of adapting to any urban environment, allowing the coexistence of different functional aspects.
Creative design and advanced functionality
Load-bearing elements made of rectangular-section galvanized steel profiles, with uprights equipped at the base with plates for anchoring to the ground, obtained by laser cutting and made of galvanized sheet metal. Covering frame consisting of a front box made of shaped panels in galvanized sheet metal with rounded corners at the ends.
Technical characteristics
• Infill: The shelter is made up of two modules, each characterized by a rear and upper infill covering in transparent laminated safety glass. Rear glass installed on the load-bearing structure using special stainless steel supports, and cover glass equipped with a special frame in galvanized steel profiles with appropriate gaskets.
• Lighting: In the front part of the cover, the shelter is equipped for each lighting module. all the electrical components are enclosed in a special compartment inside the structure with power cable outlet at the base of the structure.
• Safe Anchoring: Designed for fixing via brackets and template, preventing tipping and unwanted movements.
Optional
The composition is equipped with an internal bench, consisting of a metal frame made of galvanized steel profiles with shaping at the base. The seat is covered with slats in fine okumè wood. The bench is equipped with holes for fixing to the ground.
The bench proposed for the composition is the optional:
code 604-PE-O-PC optional short bench.
Customization and Resistance for every environment
To adapt to different aesthetic needs, the shelter is available in the basic finish "anthracite grey RAL 7016" for the structure, "wrinkled purple red RAL 3004HR" for the bench. Furthermore, upon request it is possible to request customized colors and finishes to integrate the shelter perfectly into the surrounding environment. The structure, made of galvanized steel and painted with thermosetting powders, guarantees high resistance to atmospheric agents and a long life over time.
Request more information
To discover all the technical details of the product, you can download the detailed technical sheet.
The Noi shelter is also available on the "acquistinretepa - MEPA" portal by searching for the code DIMCAR604PE2COMP1 "in product codes"
If you want a personalized quote or a custom finish, contact us today!
You can find the NOi shelter in the following configurations:
Code 604-PE-2-COMP1: Io shelter 2 modules.
Code 604-PE-3-COMP1: Io shelter 3 modules.
Code 604-PE-4-COMP1: Io shelter 4 modules.
DIMENSIONS
Wooden planks
Galvanized Steel
Laminated glass
Purple red - Wrinkled RAL 3004HR
Anthracite gray - RAL 7016
