Shelter Carlotta self supporting
Your anchor point in a city that never stops.
Codice: 448-bis
Carlotta shelter - self-supporting
This shelter self-supporting offers an elegant solution for waiting for the bus, ensuring comfort and safety for users.
Creative design and advanced functionality

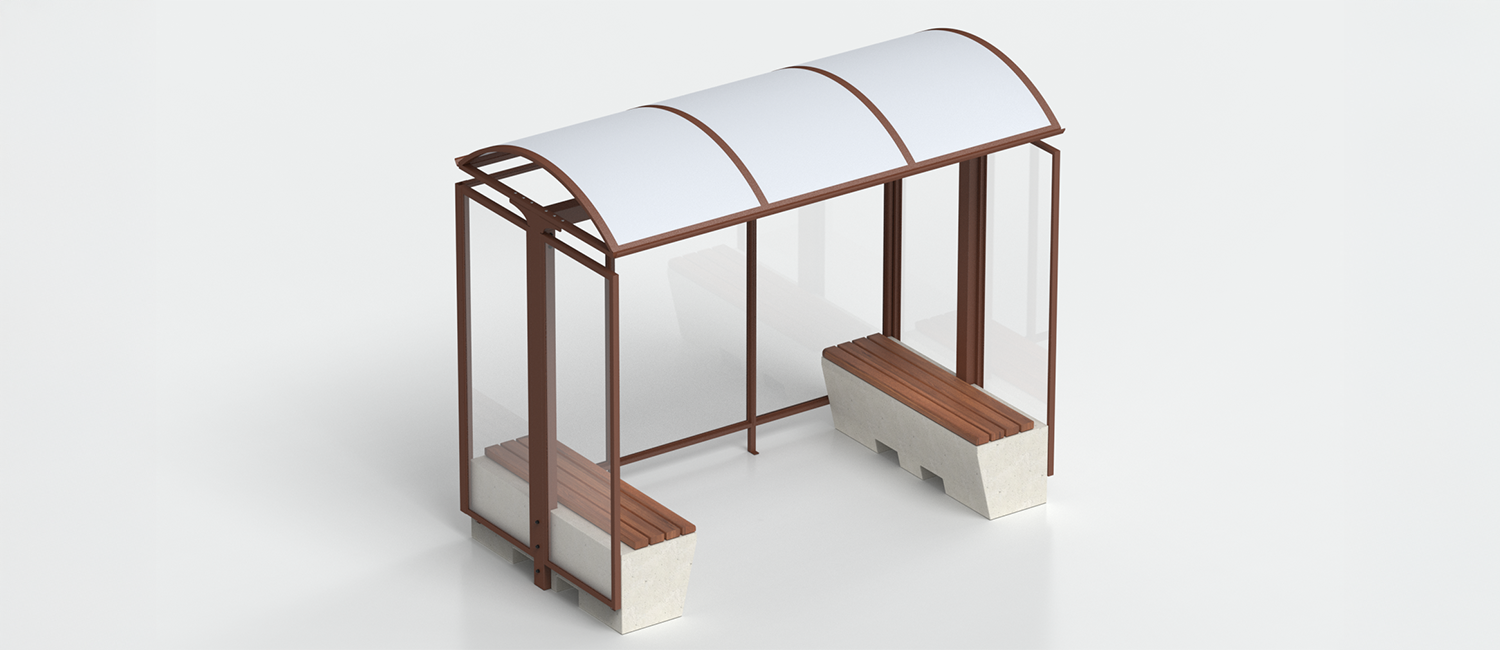

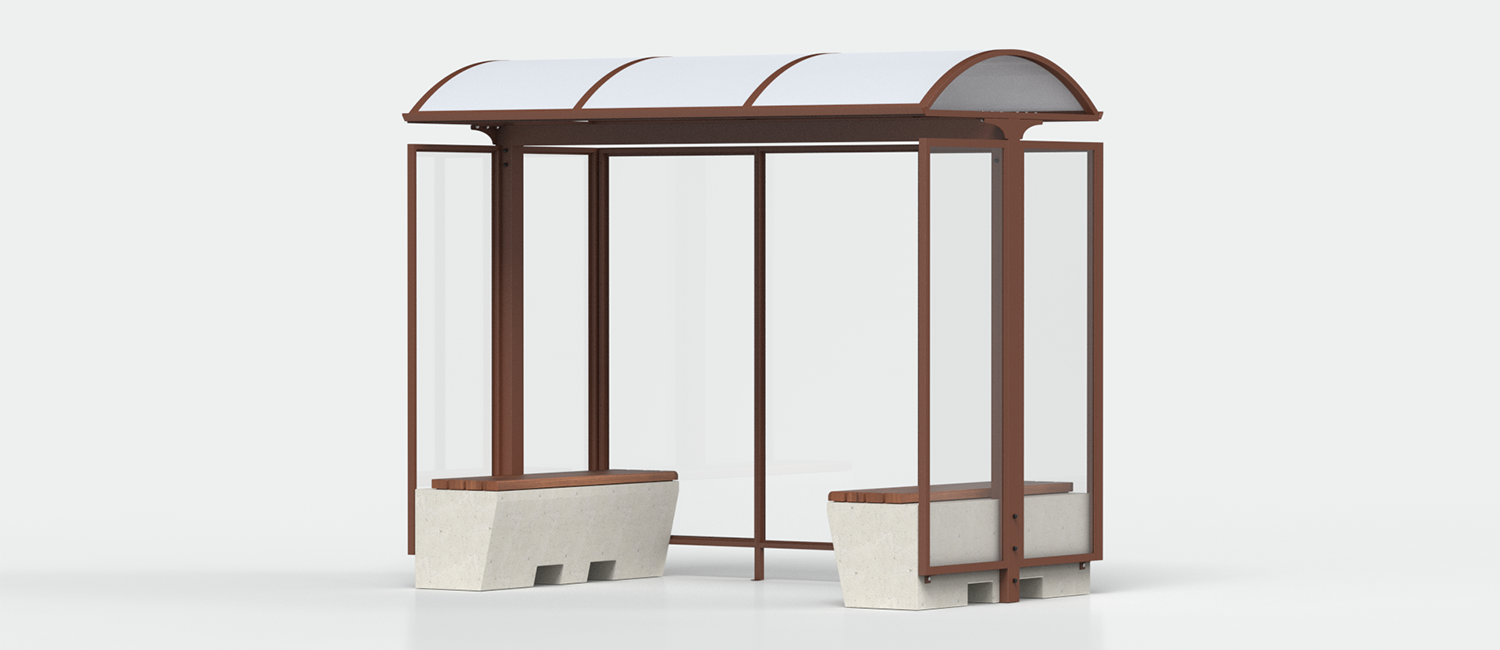

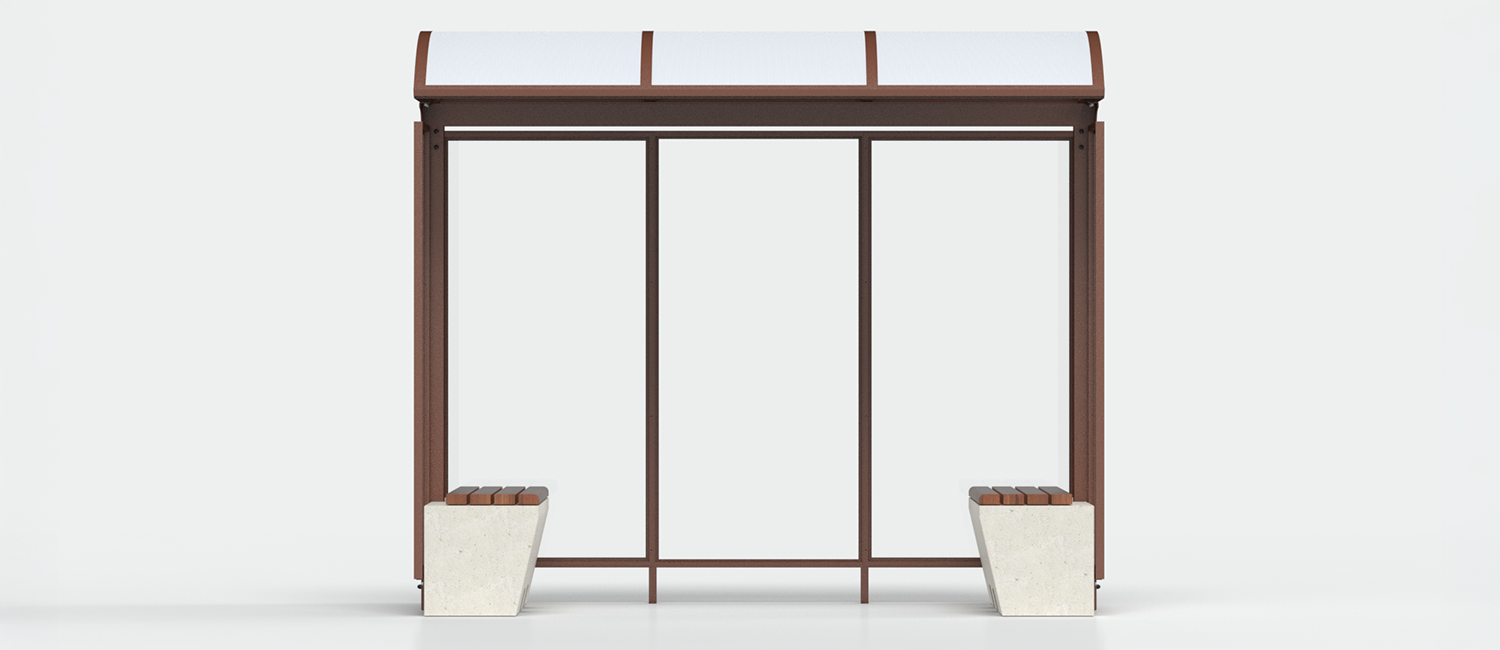

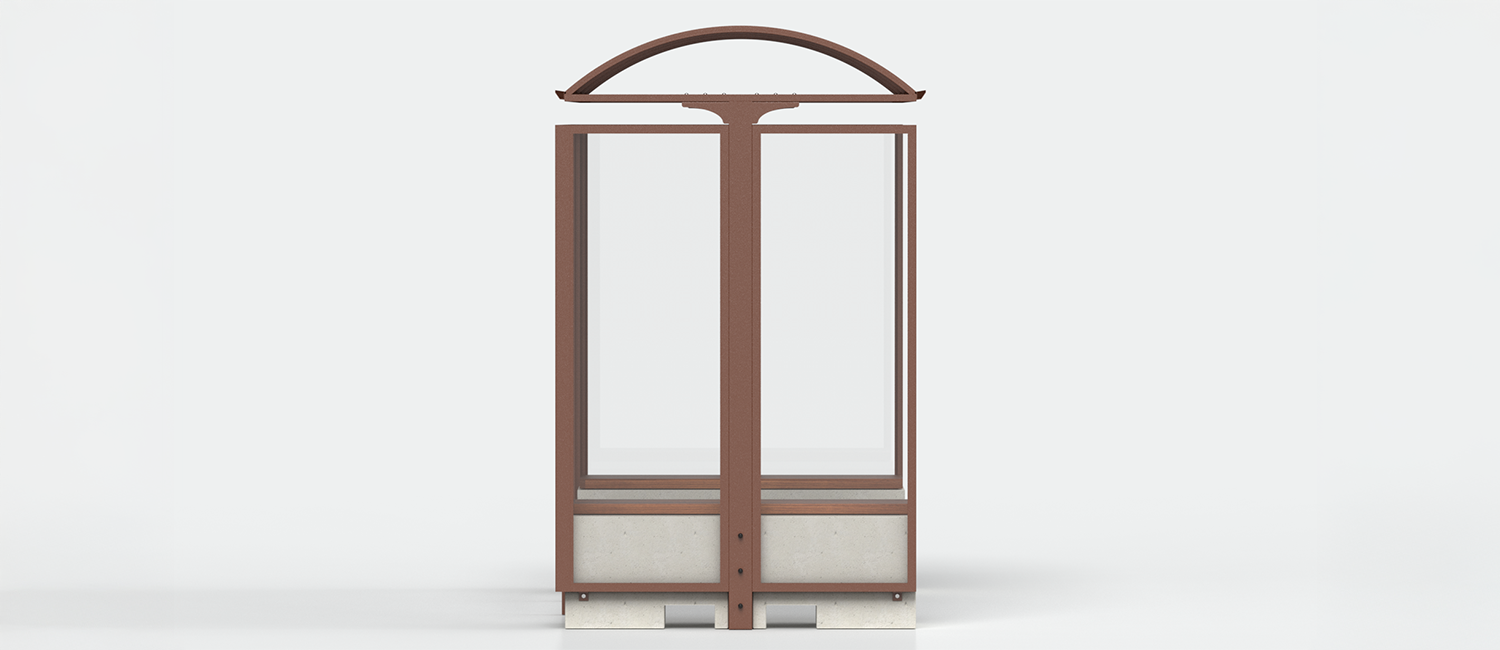

Consisting of two vertical upright structures made of galvanized steel square tubing, connected at the rear by a galvanized steel square tubing crosspiece. The uprights are supported by white, stone-effect concrete bases.
The back and side walls are made of galvanized steel profile frames. The clear, laminated glass is inserted into the frame with perimeter gaskets and supported by galvanized steel glazing beads. The opaque white compact polycarbonate roof is supported by a frame made of graduated galvanized sheet metal supports and galvanized steel transverse stiffening profiles. The frame is joined to the structure by shaped decorations positioned on the sides. The roof features a gutter at the rear to collect and drain rainwater. The seating area is located on two sides and consists of white, stone-effect concrete bases; it features four Okumè wood slats, one of which has a rounded corner at the front.
Technical features
• Rainwater drainage: The cover is characterized at the front and back by a gutter for collecting and draining rainwater.
• Bench: Bench located on two sides made up of white concrete bases with a stone effect; with 4 Okumè wood slats, one of which is at the front with a rounded corner.
• Safe Anchoring: Equipped with holes at the base for fixing to the ground, preventing tipping and unwanted movements.
Customization and Resistance for every environment

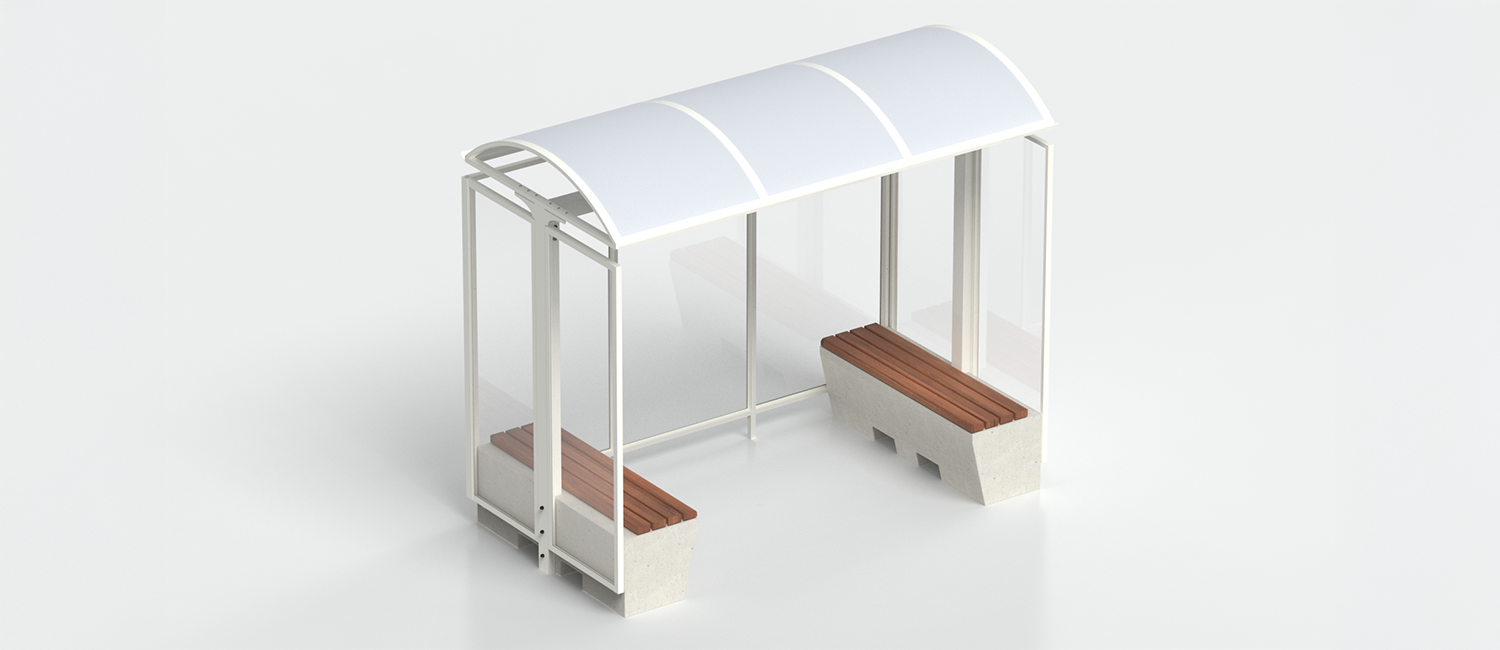

To adapt to different aesthetic needs, the shelter is available in the basic finish "gunmetal" for the back and side walls, while "Wine red RAL 3005" for uprights and roofing. Furthermore, upon request it is possible to request customized colors and finishes to integrate the shelter perfectly into the surrounding environment. The structure, made of galvanized steel and painted with thermosetting powders, guarantees high resistance to atmospheric agents and a long life over time.
Request more information
To discover all the technical details of the product, you can download the detailed technical sheet.
The self-supporting Carlotta shelter is also available on the "acquistinretepa - MEPA" portal by searching for the code DIMCAR448-BIS "in product codes"
If you would like a personalized quote or a custom finish, contact us today!
You can find the Carlotta shelter in the following versions:
Code 448: Carlotta shelter.
Code 448-BIS: Carlotta self-supporting shelter.
Materials
-
wood
-
Concrete
-
Alveolar polycarbonate
-
Galvanized steel
Certifications
EN 1090: Legally Required
A bus shelter isn't just a piece of street furniture, it's a construction project and, as such, must ensure the safety of those who use it.
Since 2011, the bus shelter has been a product that must be certified by the CE Mark therefore its production is governed by the strict norm EN 1090-1 2009 + A1:2011.
In order to work in compliance with the law, it is necessary that the carpentry...
