Shelter Carlotta

Codice: 448

Pensilina Carlotta

Designed by Arch. Stefano Montagner

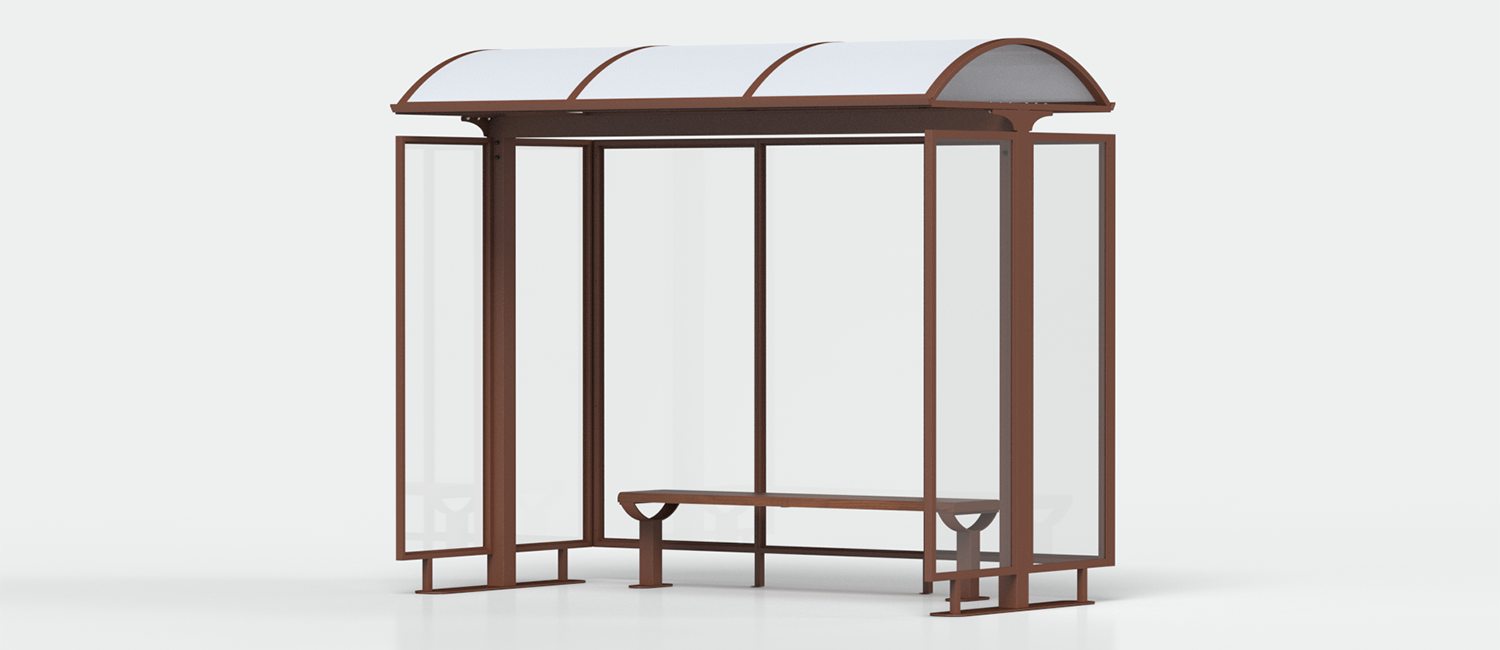

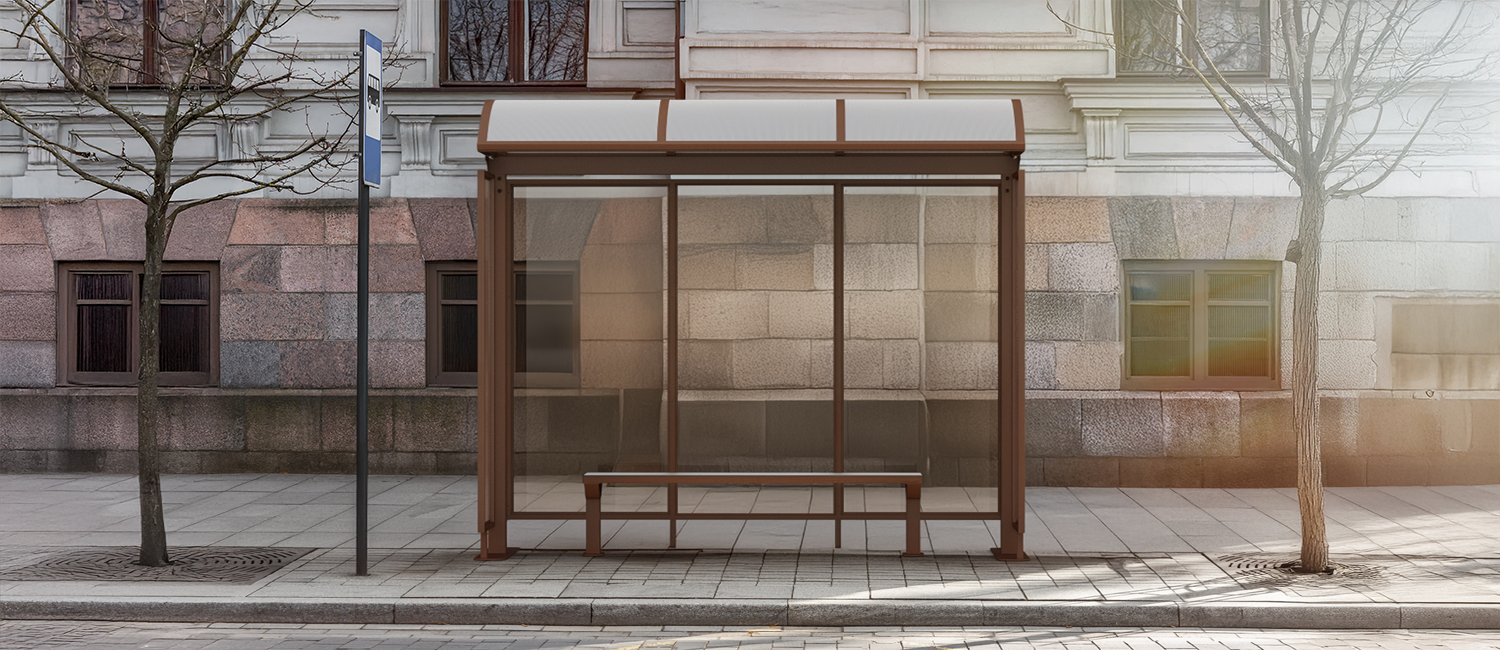

Carlotta Shelter

The Shelter offers a modern and functional solution for bus stops, ensuring comfort and protection from atmospheric agents.

Creative design and advanced functionality

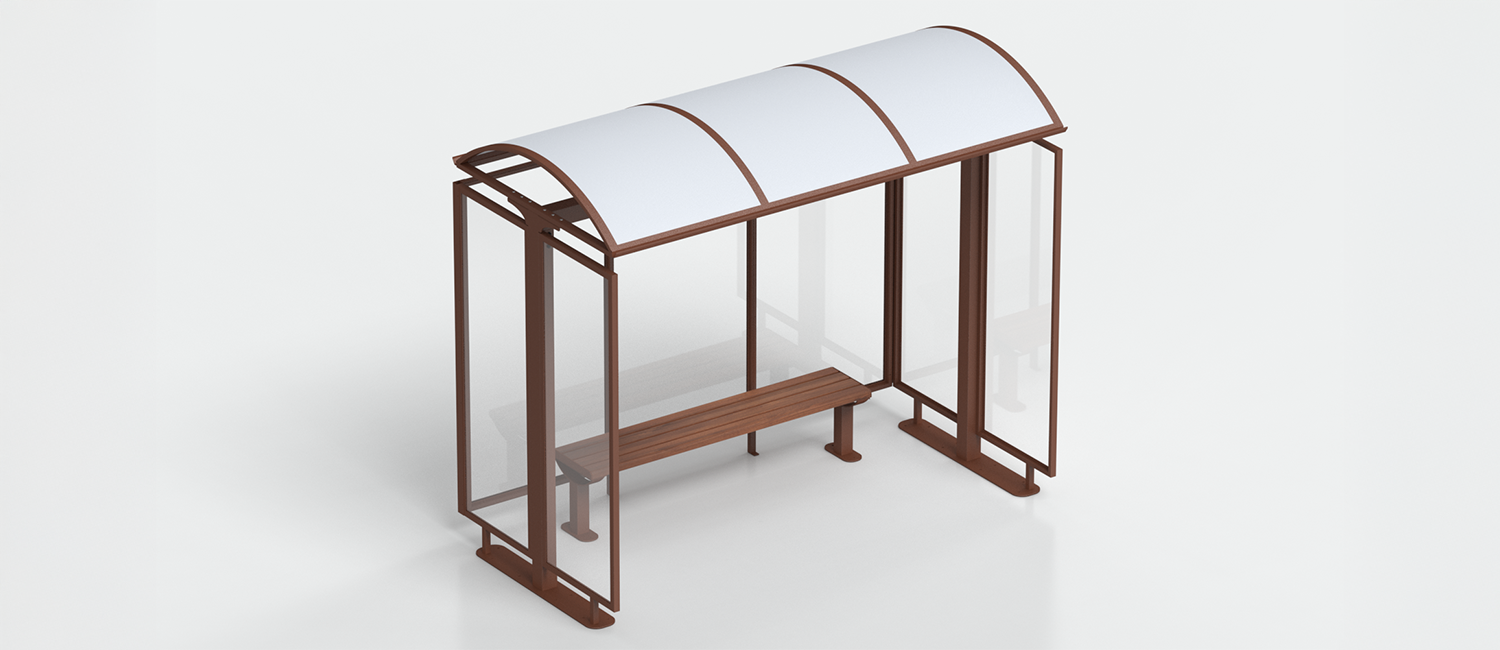

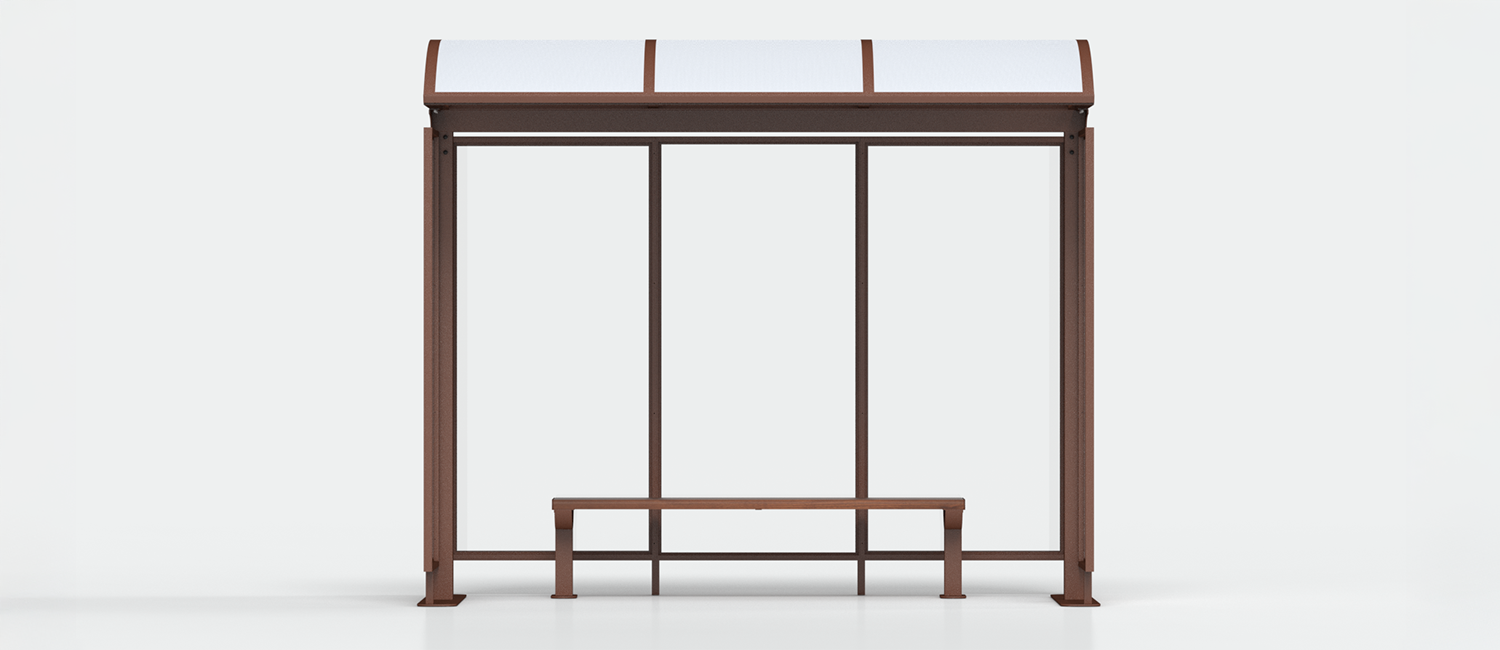

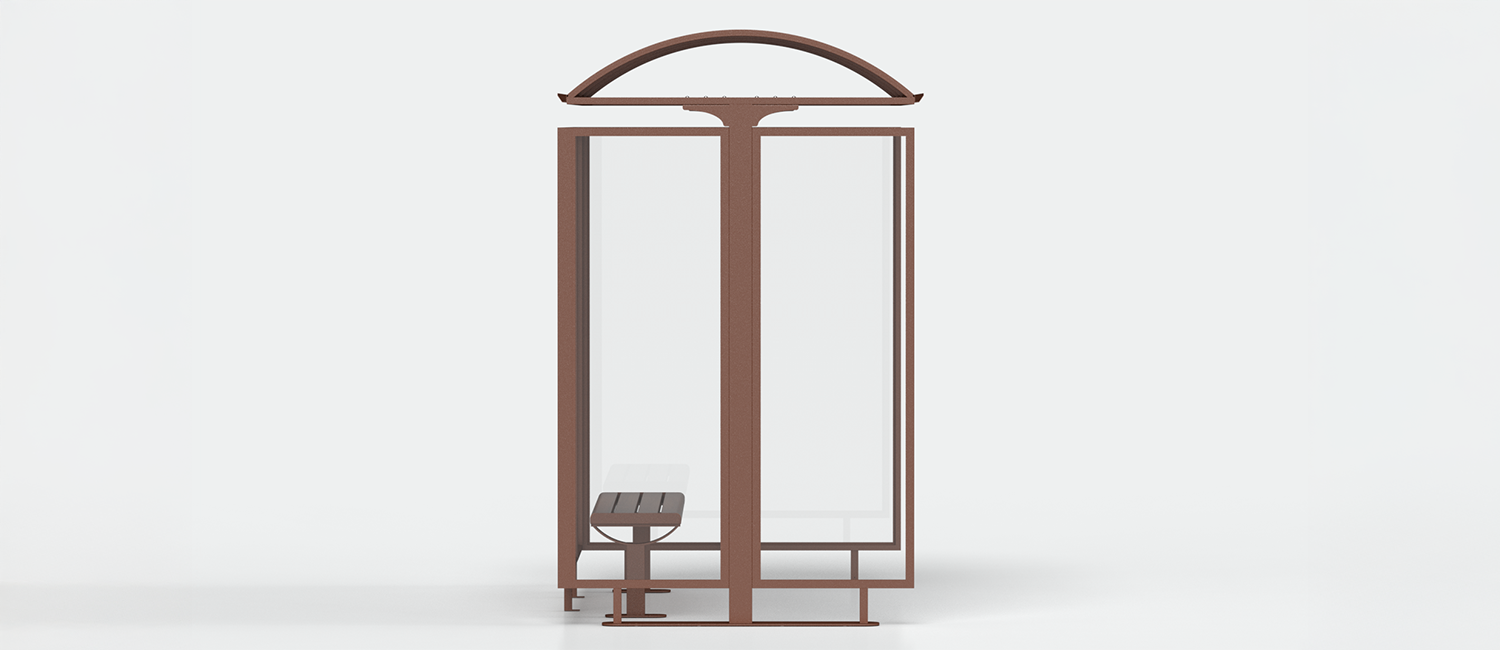

Made up of 2 vertical upright structures made of galvanized steel square tube connected to each other at the rear by a galvanized steel square tube crosspiece. Each individual upright is complete with a plate, at the base, made of galvanized sheet metal and provided with holes for fixing to the ground. Back and side walls made of galvanized steel profile frames. Transparent laminated glass with polished edge, inserted into the frame with special perimeter gaskets and supported by galvanized steel glass holders. Opaque honeycomb polycarbonate roofing. Supported by a perimeter frame in galvanized steel rectangular tube and by arches in galvanized steel rectangular tube. The frame is made integral with the structure by shaped decorations positioned on the sides.

Technical features
  •  Rainwater drainage: The roof is characterized at the front and back by a gutter for collecting and draining rainwater.
  •  Bench: Bench made up of N. 2 supports harmonized with the structure, made of galvanized steel square tube, characterized by an arched profile in galvanized sheet metal. Supports equipped with plates at the base for fixing to the ground. Seat made of N. 4 Okumè wood slats, the two external ones equipped with rounded corners.
 • Safe Anchoring: Equipped with holes at the base for fixing to the ground, preventing tipping and unwanted movements.


Customization and Resistance for every environment
To adapt to different aesthetic needs, the shelter is available in the basic finish "gunmetal" for the back and side walls, while "Wine red RAL 3005" for uprights and roofing. Furthermore, upon request it is possible to request customized colors and finishes to integrate the shelter perfectly into the surrounding environment. The structure, made of galvanized steel and painted with thermosetting powders, guarantees high resistance to atmospheric agents and a long life over time.

Request more information
To discover all the technical details of the product, you can download the detailed technical sheet.

The Carlotta shelter is also available on the "acquistinretepa - MEPA" portal by searching for the code DIMCAR448 "in product codes"

If you want a personalized quote or a custom finish, contact us today!

You can find the Carlotta shelter in the following versions:
Code 448: Carlotta shelter.
Code 448-BIS: Carlotta self-supporting shelter.

DIMENSIONS

  • Height: 257,0 cm
  • Length: 305,0 cm
  • Witdh: 154,0 cm
  • Weight: 498,0 kg

tech-image-Shelter Carlotta

Laminated glass

Mat polycarbonate honeycomb

Galvanized Steel

Red wine - RAL 3005

Gun metal grey
