Io shelter 3 modules

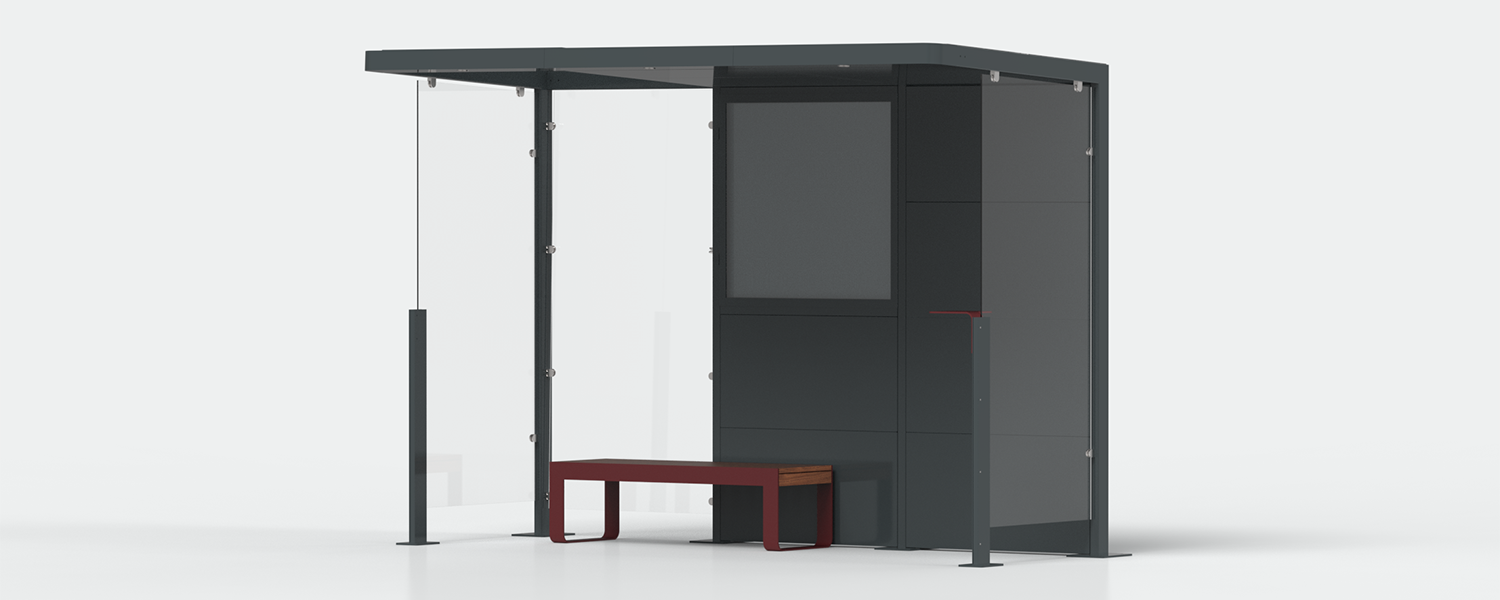

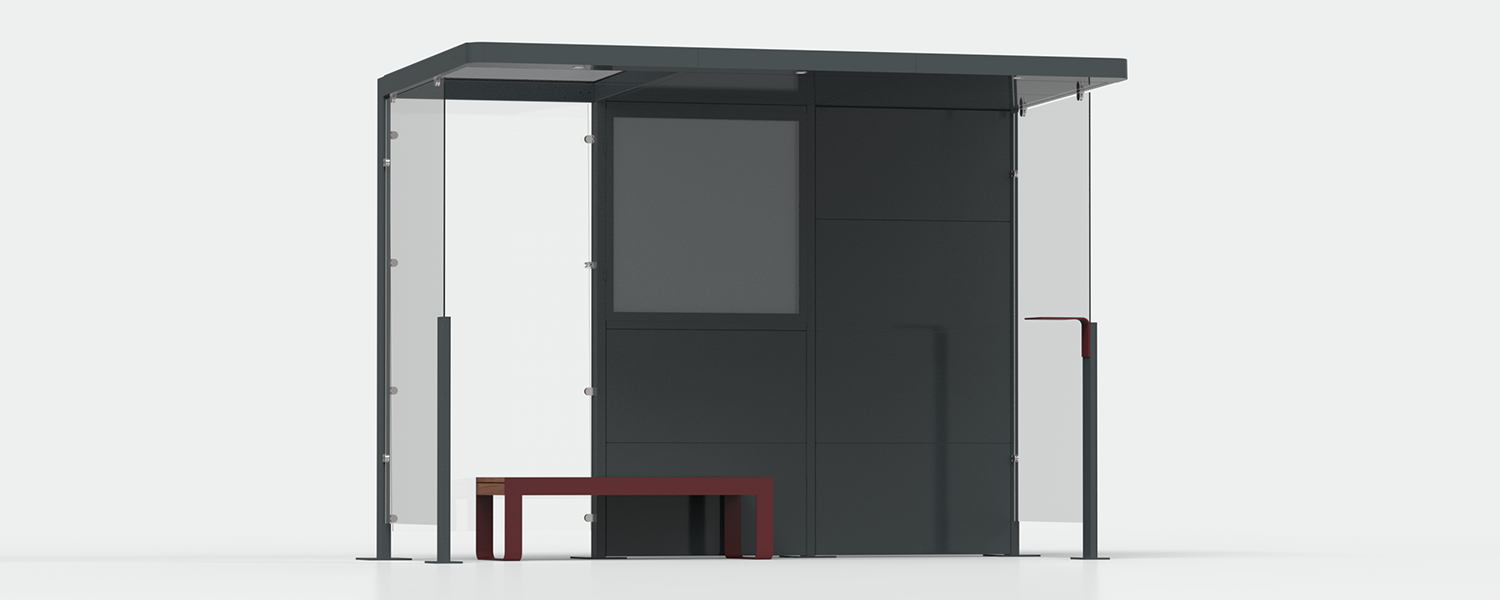

Io shelter 3 modules - composition with glass module, noticeboard module, sheet metal module, side walls, table and short bench

By combining various optional features, it generates infinite platform variations capable of adapting to any urban environment, allowing the coexistence of different functional aspects.

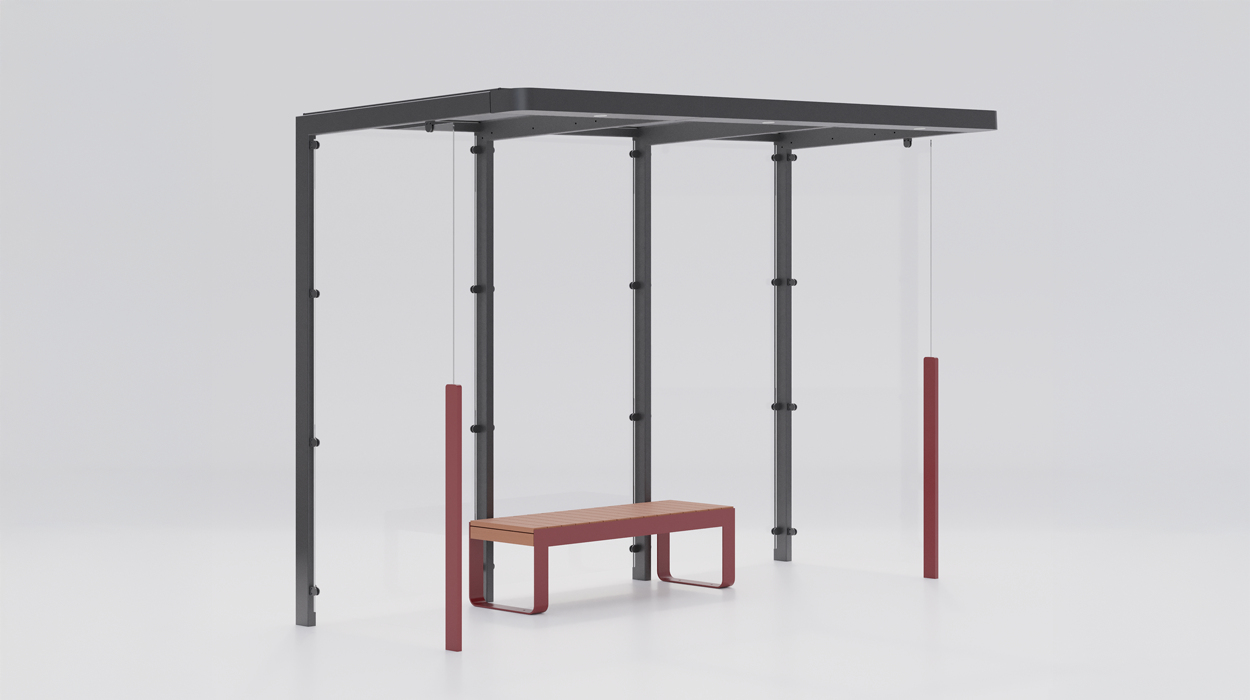

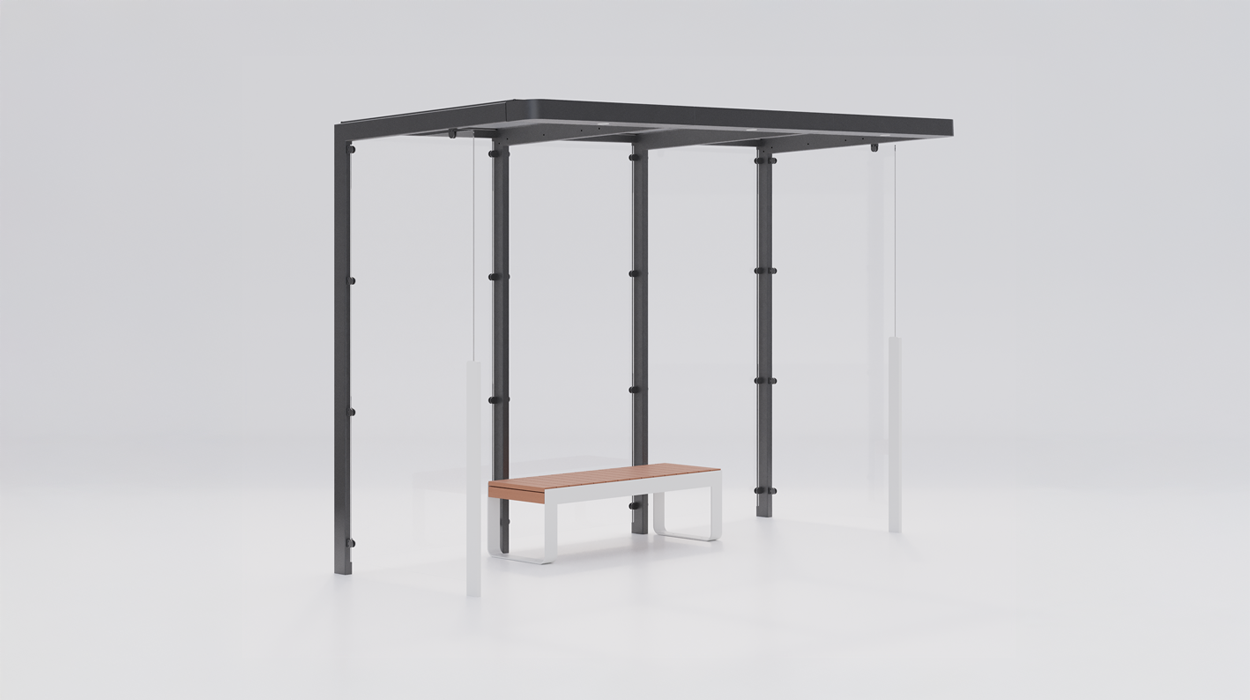

Creative design and advanced functionality It consists of load-bearing elements made of galvanized steel profiles, with uprights equipped with laser-cut plates for anchoring to the ground made of galvanized sheet metal. The roof frame consists of a front crosspiece made of steel profile with rounded corners at the ends. At the front of the roof, the canopy is equipped with lighting for each module. All electrical components are enclosed in a dedicated compartment inside the structure, with the power cable exit at the base.

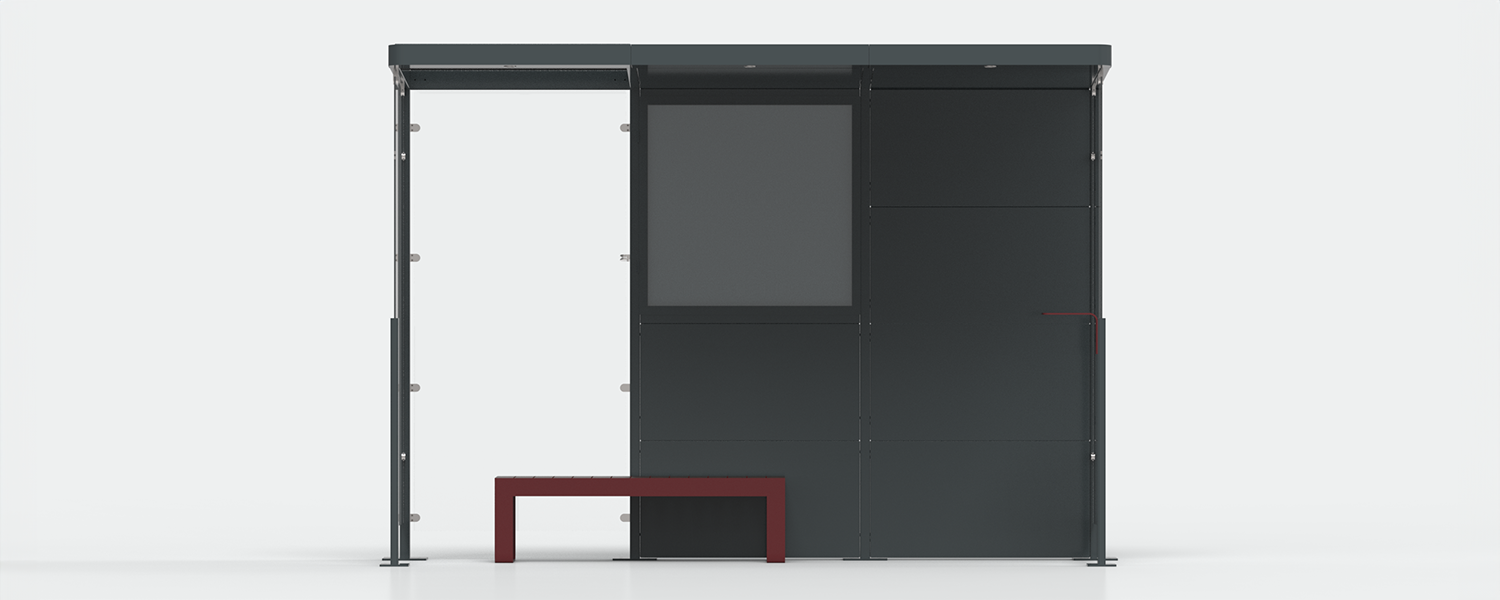

Technical characteristics The shelter is composed of three modules, each featuring different types of rear and upper covering panels: Left module (front view) with rear and upper covering panels made of 5+5 mm thick transparent laminated safety glass. The rear glass is installed on the load-bearing structure using special stainless steel supports, and the covering glass features a special frame made of aluminum and galvanized steel profiles with appropriate gaskets. Central module consisting of a rear noticeboard, equipped with a door that opens with a special lock. Facade made of transparent compact polycarbonate, lower and rear covering panels made of shaped galvanized steel panels. Roof made of galvanized sheet metal and internal false ceiling made of shaped galvanized steel panels. Right module (front view) consisting of front and rear covering panels made of shaped galvanized steel panels. Roof made of galvanized sheet metal and internal false ceiling made of shaped galvanized steel panels.
  •  Lighting: On the front of the roof, the shelter is equipped with lighting for each module. All the electrical components are enclosed in a special compartment inside the structure with the power cable outlet at the base of the structure.
  • Safe Anchoring: Designed for fixing via brackets and template, preventing tipping and unwanted movements.


Optional

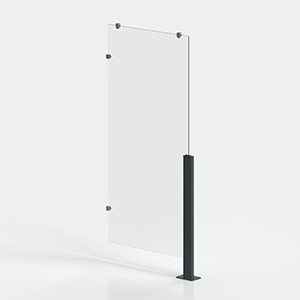

Side walls in laminated safety glass (code 604-PE-O-V), transparent with stainless steel supports and front support made of laser-cut galvanized sheet metal and equipped with a plate at the base for fixing to the ground.

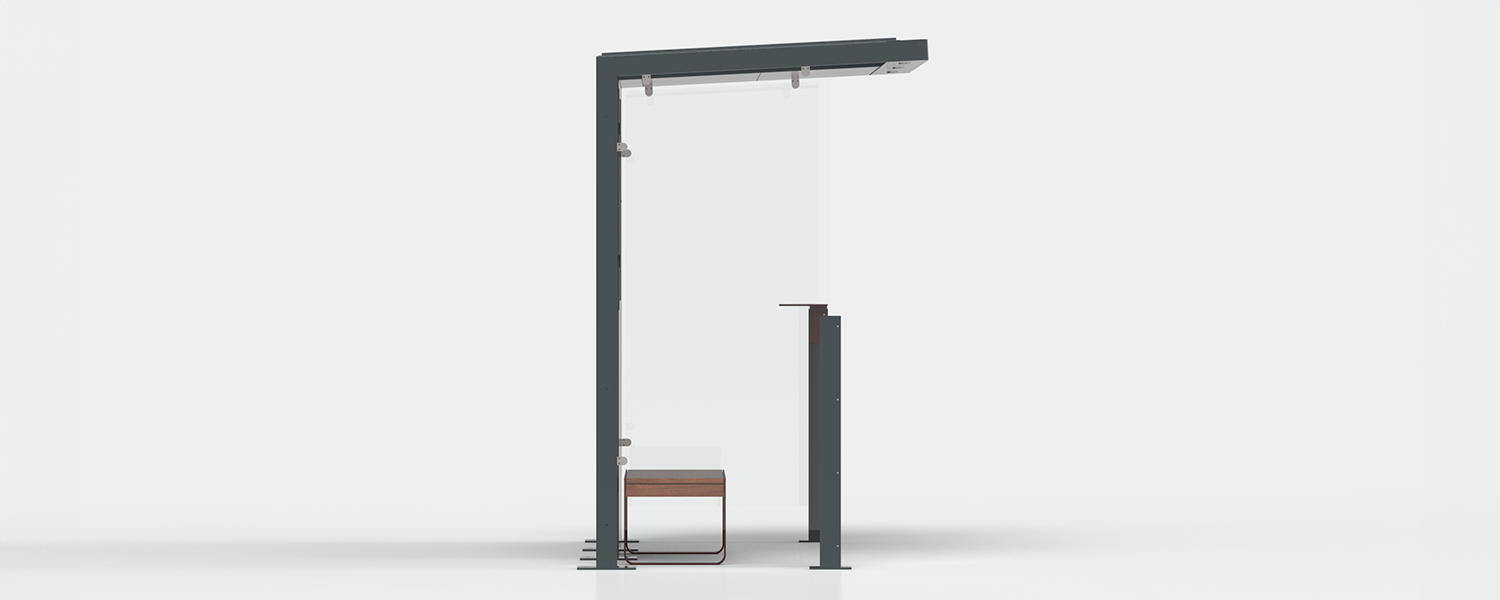

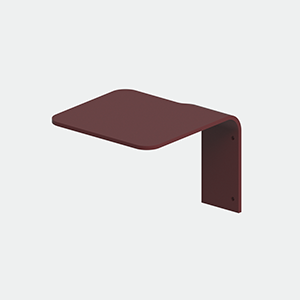

On the right side wall (front view) the shelter is equipped with the optional small table (code 604-PE-O-T) made with a single laser-cut galvanized sheet metal support.

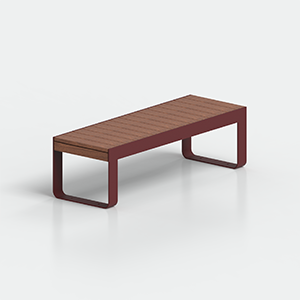

The composition is completed with a short bench (code 604-PE-O-PC), consisting of a metal frame made of galvanized steel profiles with a shape at the base. The seat is covered with slats in fine okumè wood. The bench is equipped with holes for fixing to the ground.

Customization and Resistance for every environment
To adapt to different aesthetic needs, the shelter is available in the basic finish "anthracite grey RAL 7016" for the structure, "wrinkled purple red RAL 3004HR" for the bench and table. Furthermore, upon request it is possible to request customized colors and finishes to integrate the shelter perfectly into the surrounding environment. The structure, made of galvanized steel and painted with thermosetting powders, guarantees high resistance to atmospheric agents and a long life over time.

Request more information
To discover all the technical details of the product, you can download the detailed technical sheet.

The Io shelter is also available on the "acquistinretepa - MEPA" portal by searching for the code DIMCAR604PE3COMP1 "in product codes"

If you would like a personalized quote or a custom finish, contact us today!

You can find the Io shelter in the following configurations:
Code 604-PE-2-COMP1: Io shelter 2 modules.
Code 604-PE-3-COMP1: Io shelter 3 modules.
Code 604-PE-4-COMP1: Io shelter 4 modules.
