Shelter Acaya
Waiting for the bus has never been so comfortable.
Codice: 231
Acaya Shelter - cantilever

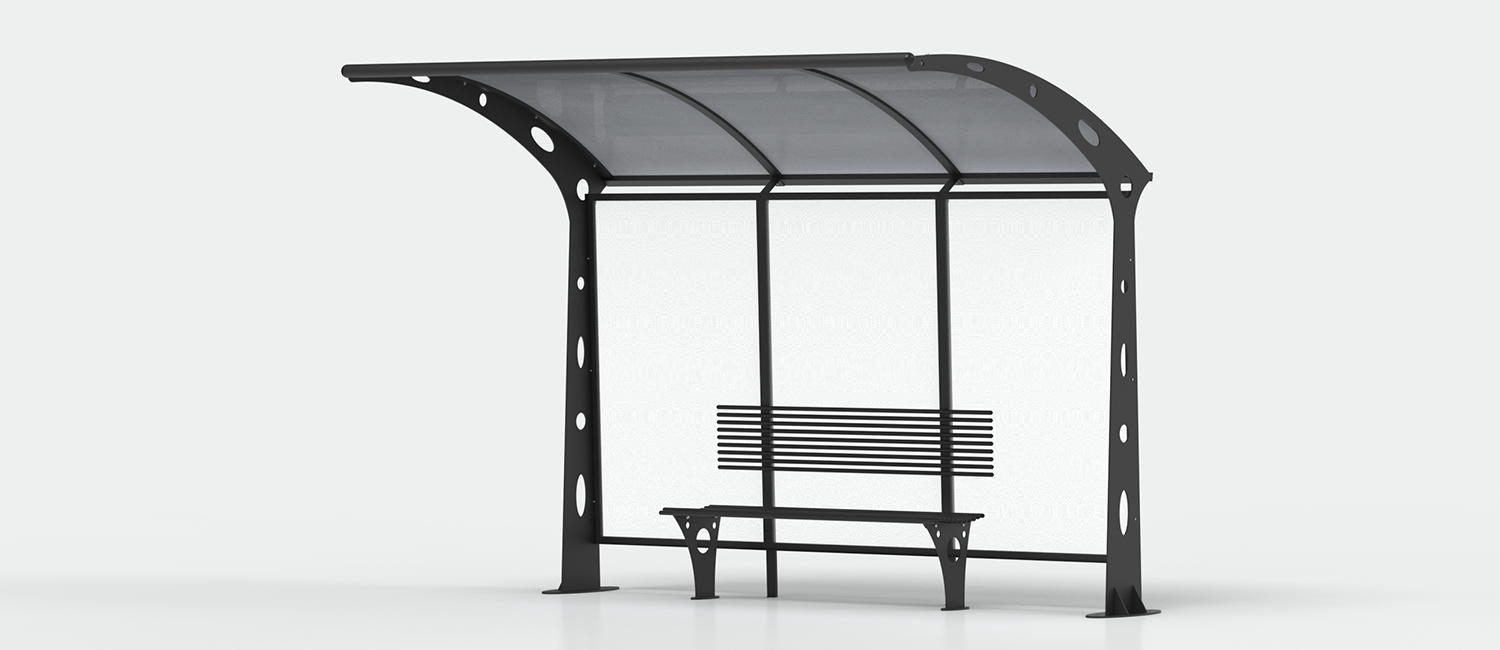

The Acaya cantilever bus shelter features a cantilever design offering exceptional durability and functionality.
Creative design and advanced functionality

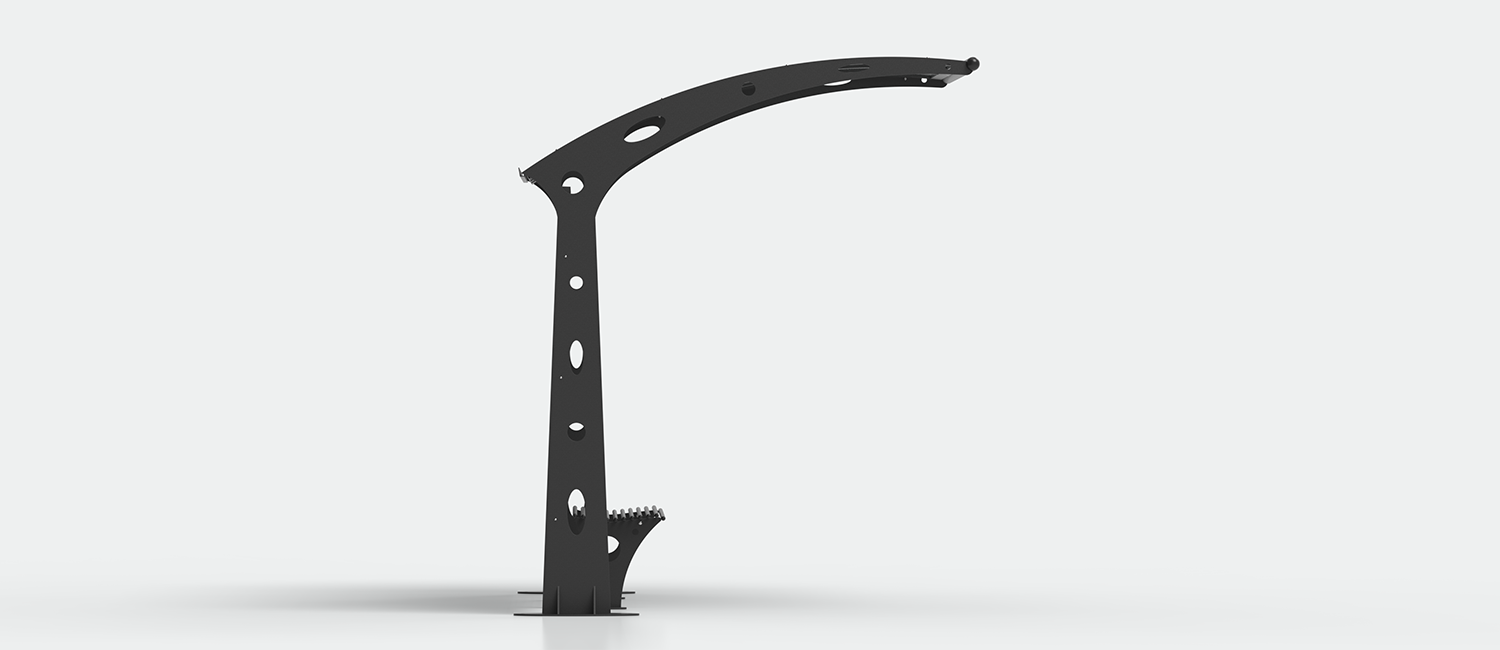

Made up of 2 vertical load-bearing structures, with upper arches made of laser-cut galvanized sheet metal, each structure is characterized by alternating decorative voids in an ellipsoidal and circular shape.

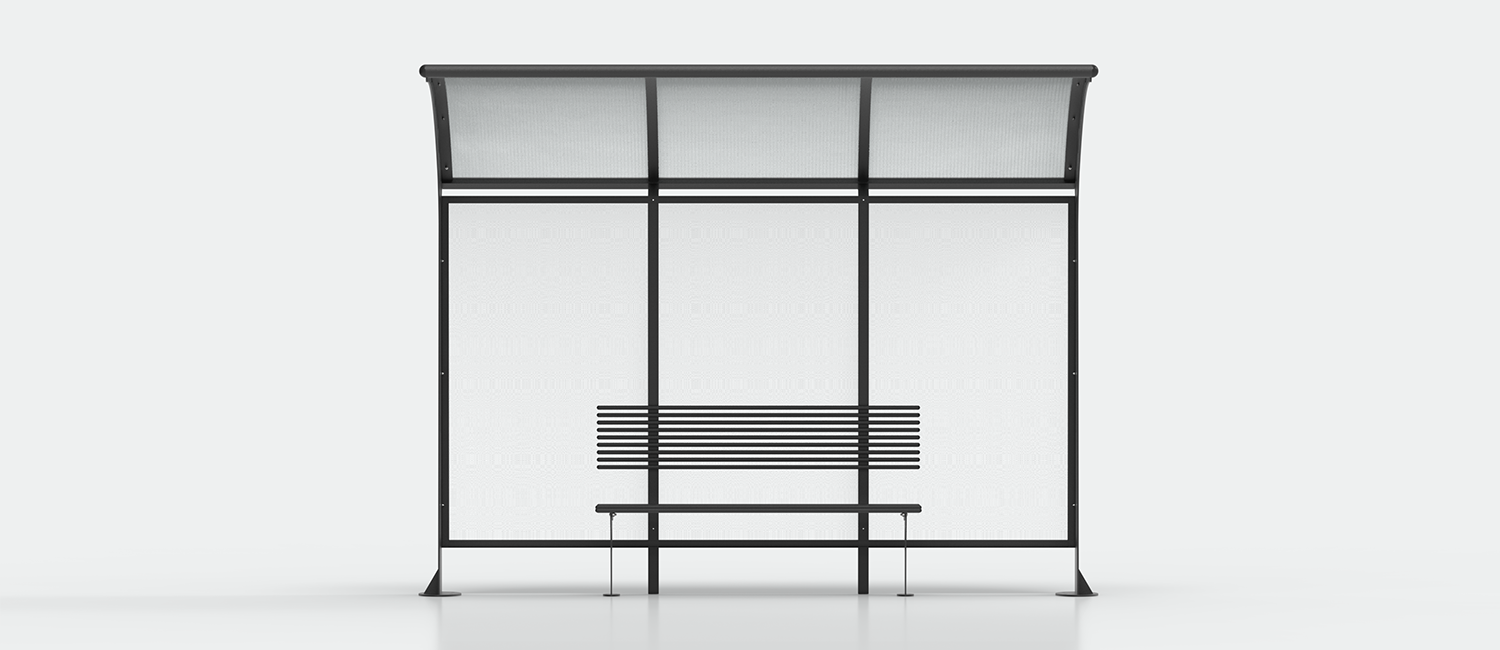

Base plates, in an ellipsoidal shape, made of galvanized sheet metal equipped with circular holes for anchoring to the concrete foundation, galvanized sheet metal stiffening triangles, welded between the base plate and the load-bearing structures; Back wall made up of a perimeter frame in galvanized steel angular profile with 2 vertical uprights in galvanized steel rectangular tube. Infill in transparent honeycomb polycarbonate supported by rectangular tube profiles in galvanized steel. Covering made with frame in rectangular tube profiles in galvanized steel; front crosspiece in round tube in galvanized steel complete with PVC end caps with spherical head;
Technical features
• Infill: Upper infill in opaque honeycomb polycarbonate. Back wall with infill in transparent honeycomb polycarbonate supported by rectangular tube profiles in galvanized steel.
• Rainwater drainage: Rear gutter for collecting and discharging rainwater.

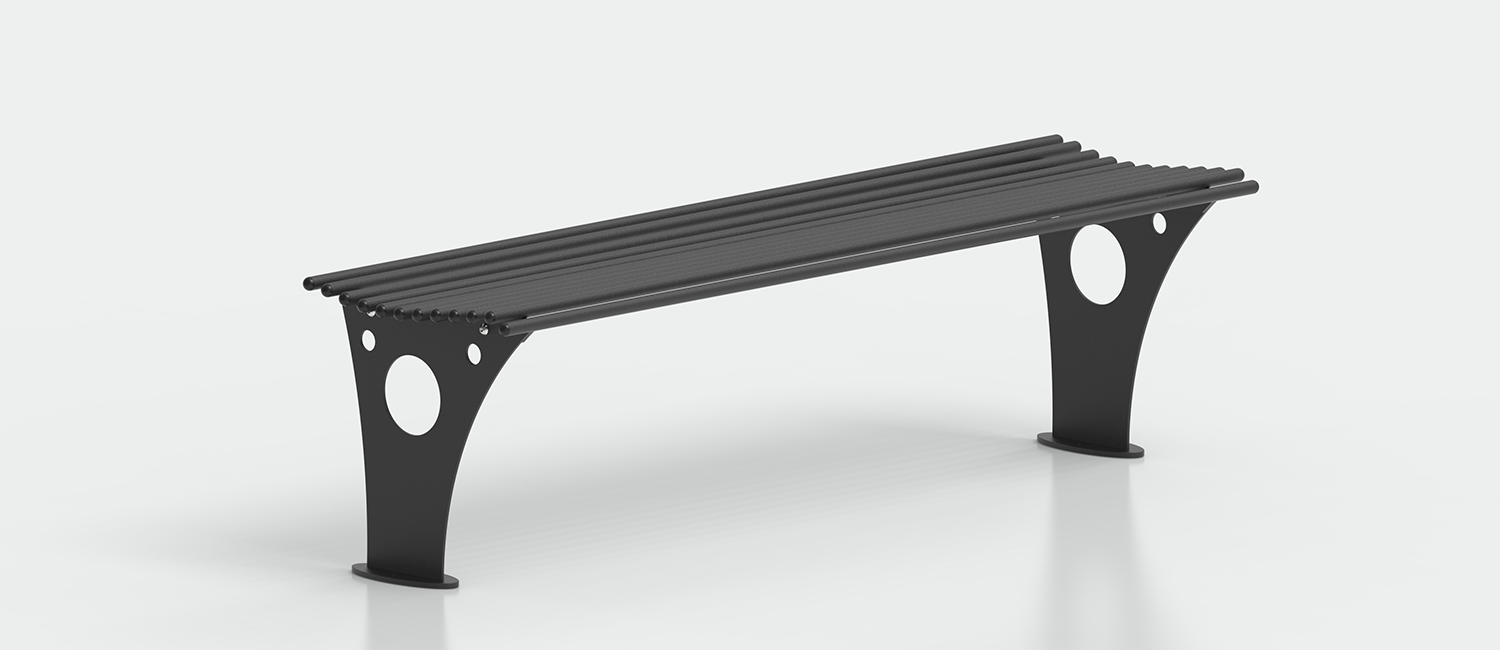

• Bench: Bench consisting of N. 2 supports harmonized with the vertical structures, in galvanized sheet metal obtained by laser cutting, both characterized by decorative carvings, base plates welded to the supports and made of galvanized sheet metal, both plates are provided with circular holes for fixing to the ground. Seat consisting of N. 12 profiles in galvanized steel round tube complete with PVC end caps with spherical head. Backrest consisting of N. 9 profiles in galvanized steel round tube complete with PVC end caps with spherical head fixed to the rear wall.
• Safe Anchoring: Designed for fixing via brackets and template, preventing tipping and unwanted movements.
Customization and Resistance for every environment
To adapt to different aesthetic needs, the shelter is available in the basic finish "gunmetal". Furthermore, upon request it is possible to request customized colors and finishes to integrate the shelter perfectly into the surrounding environment. The structure, made of galvanized steel and painted with thermosetting powders, guarantees high resistance to atmospheric agents and a long life over time.
Request more information
To discover all the technical details of the product, you can download the detailed technical sheet.
The Acaya cantilever shelter is also available on the "acquistinretepa - MEPA" portal by searching for the code DIMCAR231 "in product codes"
If you would like a personalized quote or a custom finish, contact us today!
You can find the Acaya shelter in the following versions:
Code 231: Acaya shelter with cantilever.
Code 231-BIS: Acaya shelter with side walls.
Materials
-
Alveolar polycarbonate
-
Galvanized steel
-
Alveolar polycarbonate
Certifications
EN 1090: Legally Required
A bus shelter isn't just a piece of street furniture, it's a construction project and, as such, must ensure the safety of those who use it.
Since 2011, the bus shelter has been a product that must be certified by the CE Mark therefore its production is governed by the strict norm EN 1090-1 2009 + A1:2011.
In order to work in compliance with the law, it is necessary that the carpentry...
