Shelter Acaya with sides walls

The Acaya shelter - with side walls

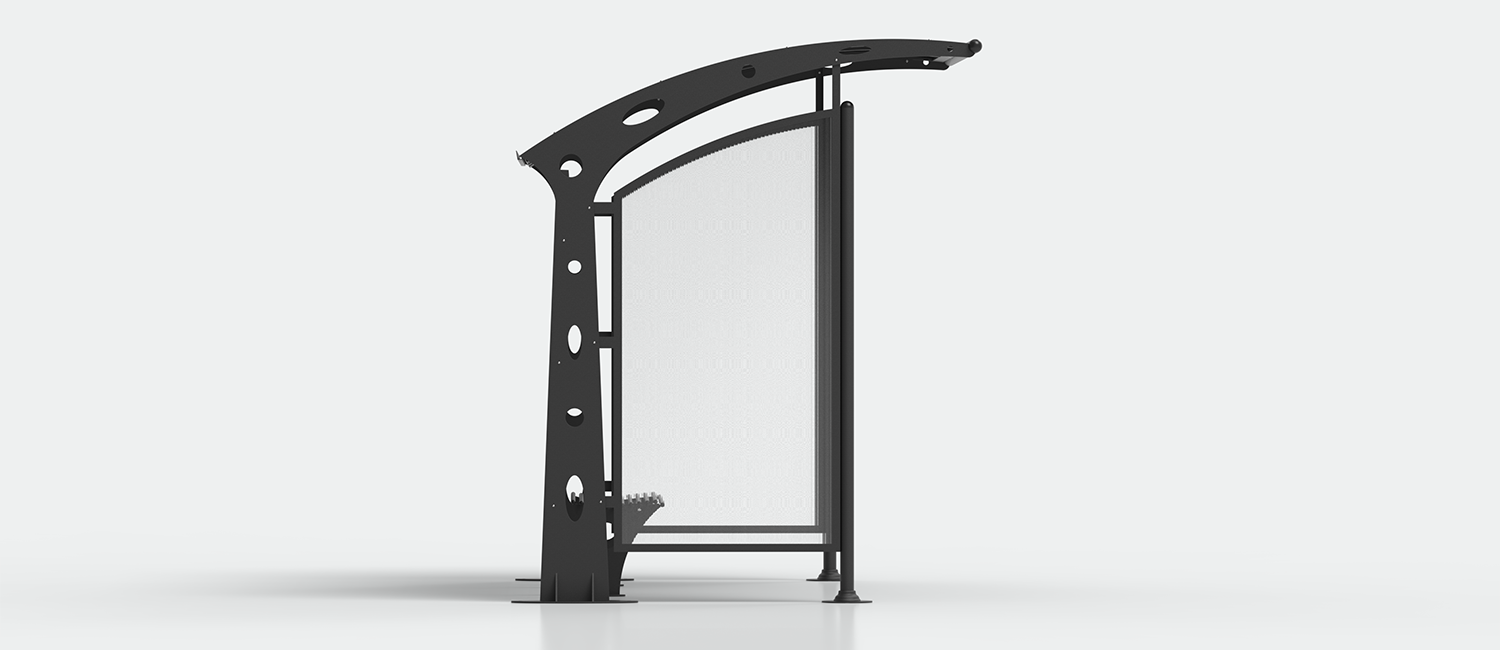

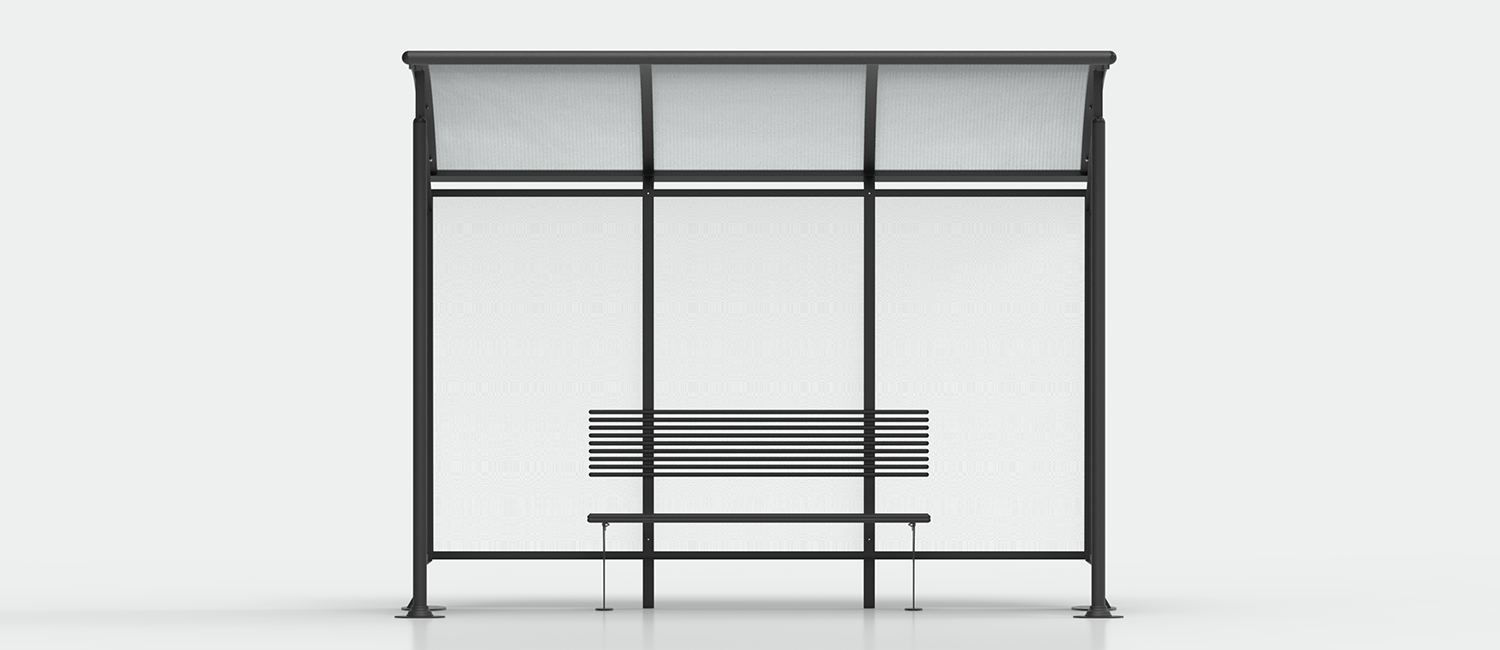

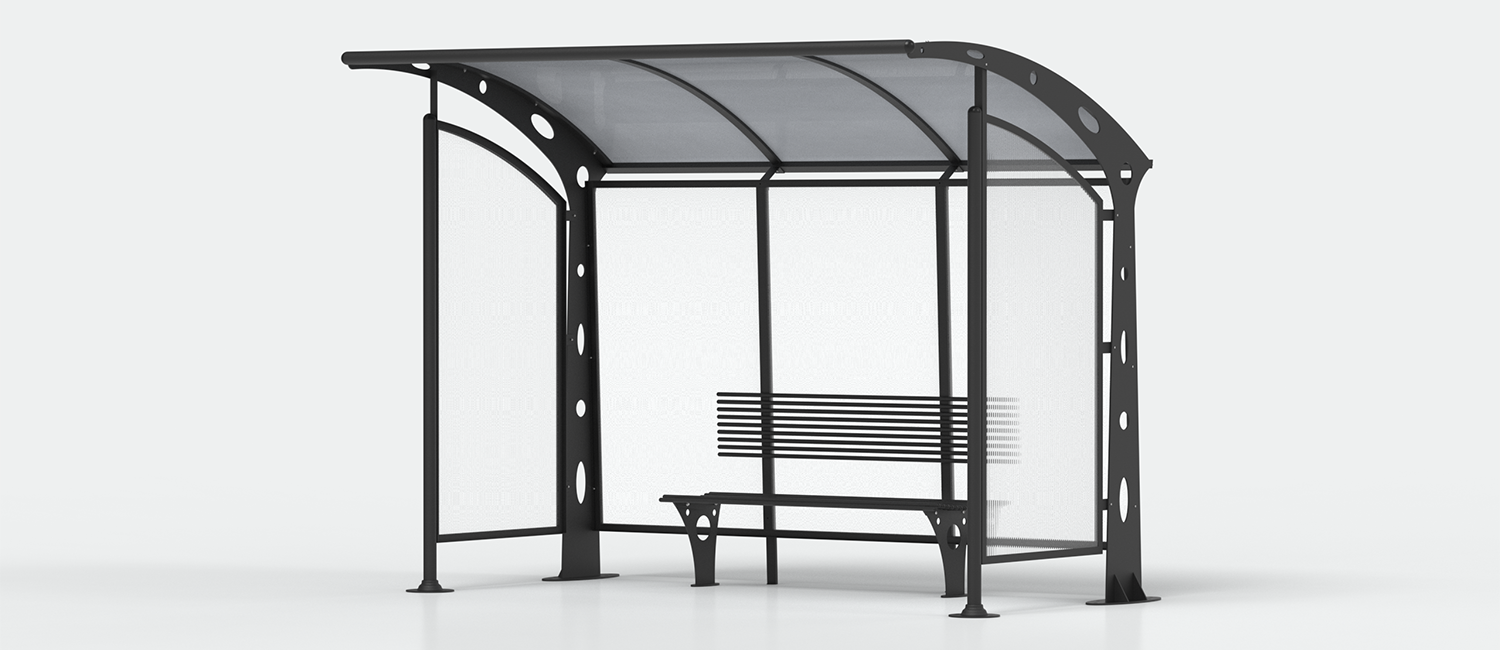

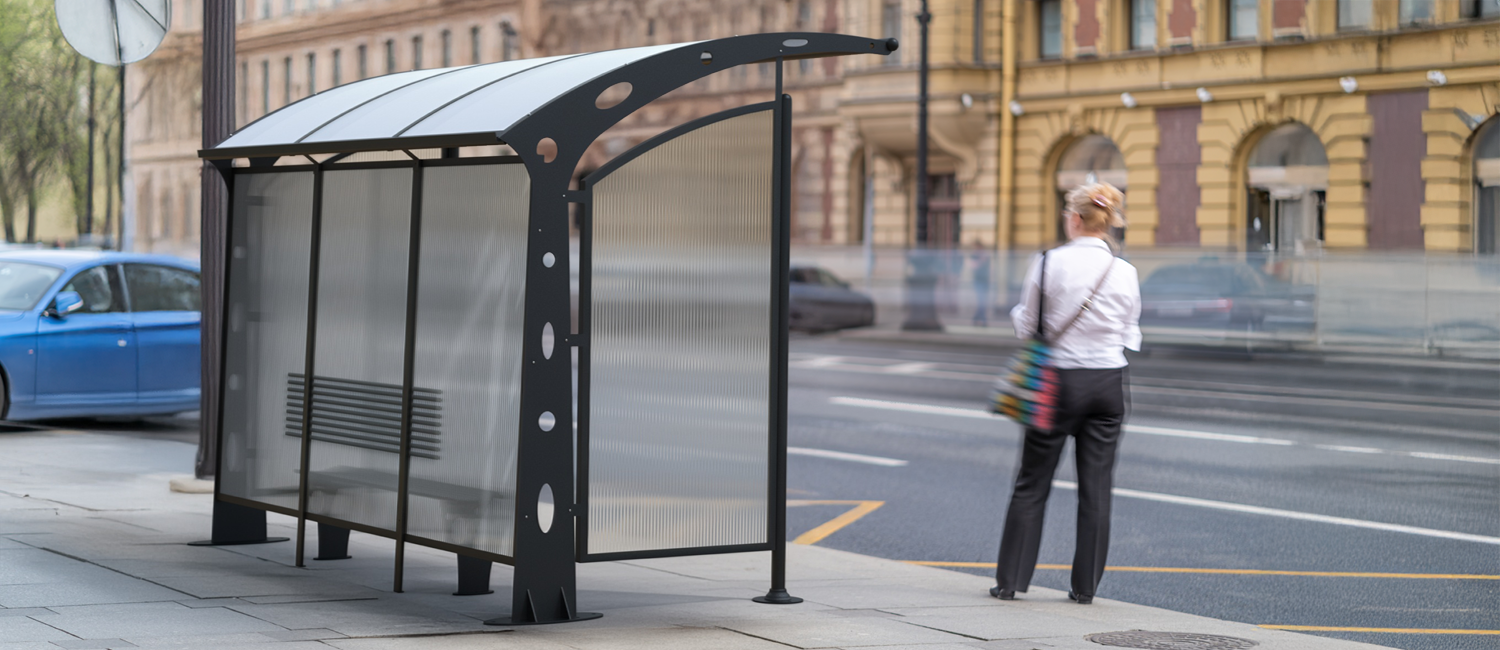

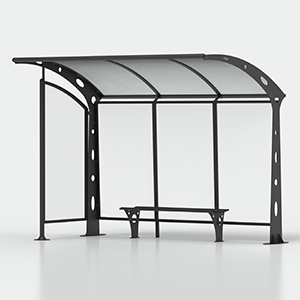

The Acaya shelter with side walls for bus stops features a cantilevered design offering exceptional durability and functionality.

Creative design and advanced functionality
Consisting of N. 2 vertical load-bearing structures, with upper arches, made of galvanized sheet metal obtained from high definition plasma cutting; each individual structure is characterized by alternating decorative hollowing in an ellipsoidal and circular shape. Base plates, in an ellipsoidal shape, made of galvanized sheet metal provided with circular holes for anchoring to the concrete foundation; stiffening triangles welded between the base plate and the load-bearing structures, in galvanized sheet metal. Back wall consisting of a perimeter frame in galvanized steel angular profile with N. 2 vertical uprights in galvanized steel rectangular tube. Side walls made of perimeter frame in galvanized steel angular profile. Roofing made with frame in galvanized steel rectangular tube profiles; front crosspiece in galvanized steel round tube complete with PVC end caps with spherical head.

Technical features
  •  Infill: Upper infill in opaque honeycomb polycarbonate. Back wall with infill in transparent honeycomb polycarbonate supported by profiles in galvanized steel rectangular tube. Side walls with infill in transparent honeycomb polycarbonate supported by profiles in galvanized steel rectangular tube.
  •  Rainwater drainage: Rear gutter for collecting and discharging rainwater.

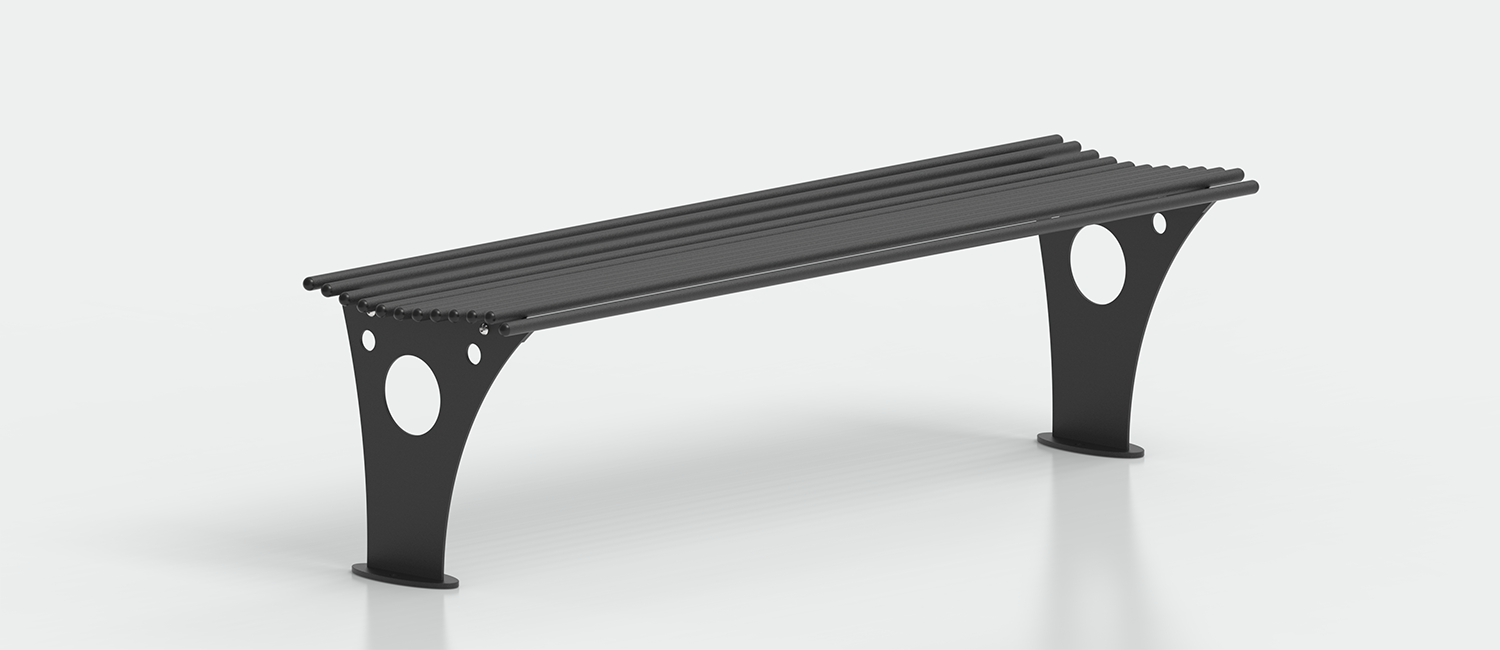

  •  Bench: Bench consisting of N. 2 supports, harmonized with the vertical structures, in galvanized sheet metal obtained from high definition plasma cutting; both supports are characterized by decorative carvings; base plates, welded to the supports, made of galvanized sheet metal; both plates are provided with circular holes for fixing to the ground. Seat consisting of N. 12 profiles in galvanized steel round tube complete with PVC end caps with spherical head. Backrest consisting of N. 09 profiles in galvanized steel round tube complete with PVC end caps with spherical head fixed to the rear wall.

Request more information
To discover all the technical details of the product, you can download the detailed technical sheet.

The Acaya shelter with side walls is also available on the "acquistinretepa - MEPA" portal by searching for the code DIMCAR231-BIS "in product codes"

If you would like a personalized quote or a custom finish, contact us today!
