Shelter Alessandra with self-supporting

Designed by Arch. Stefano Montagner

Alessandra Shelter - cantilever

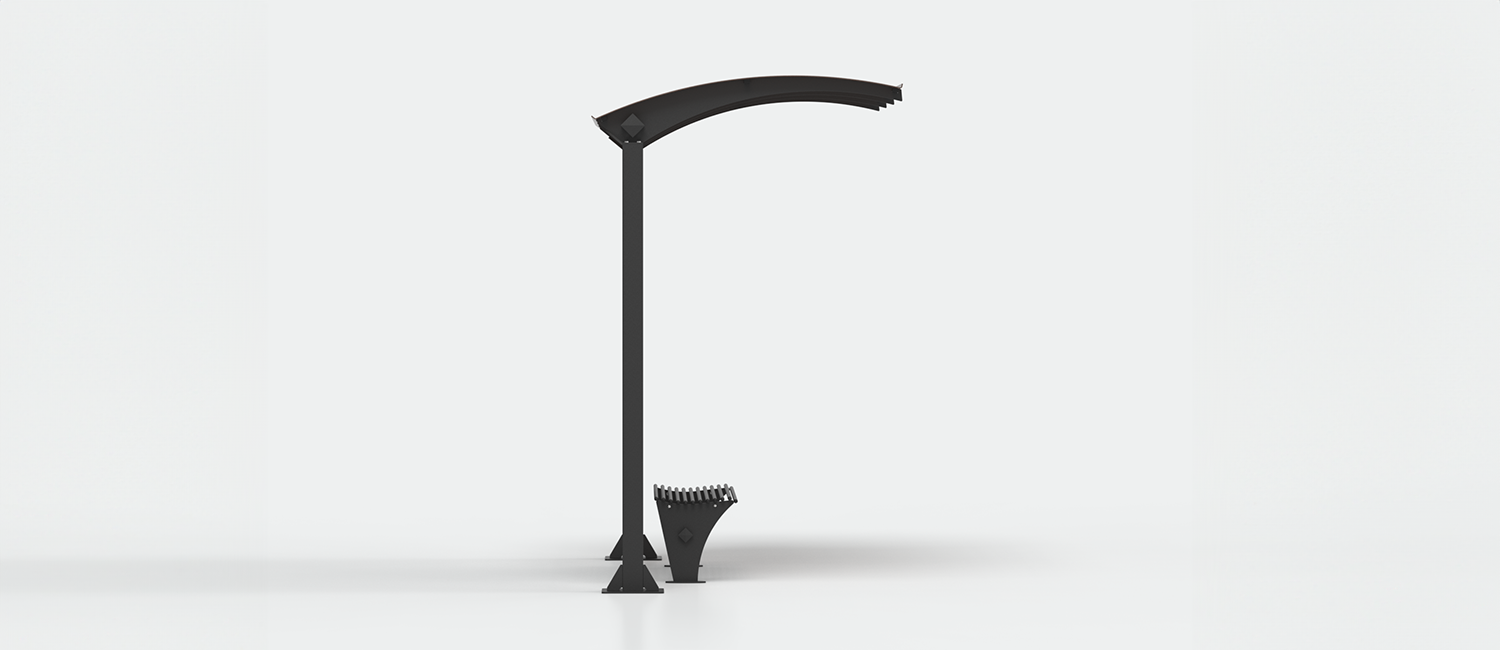

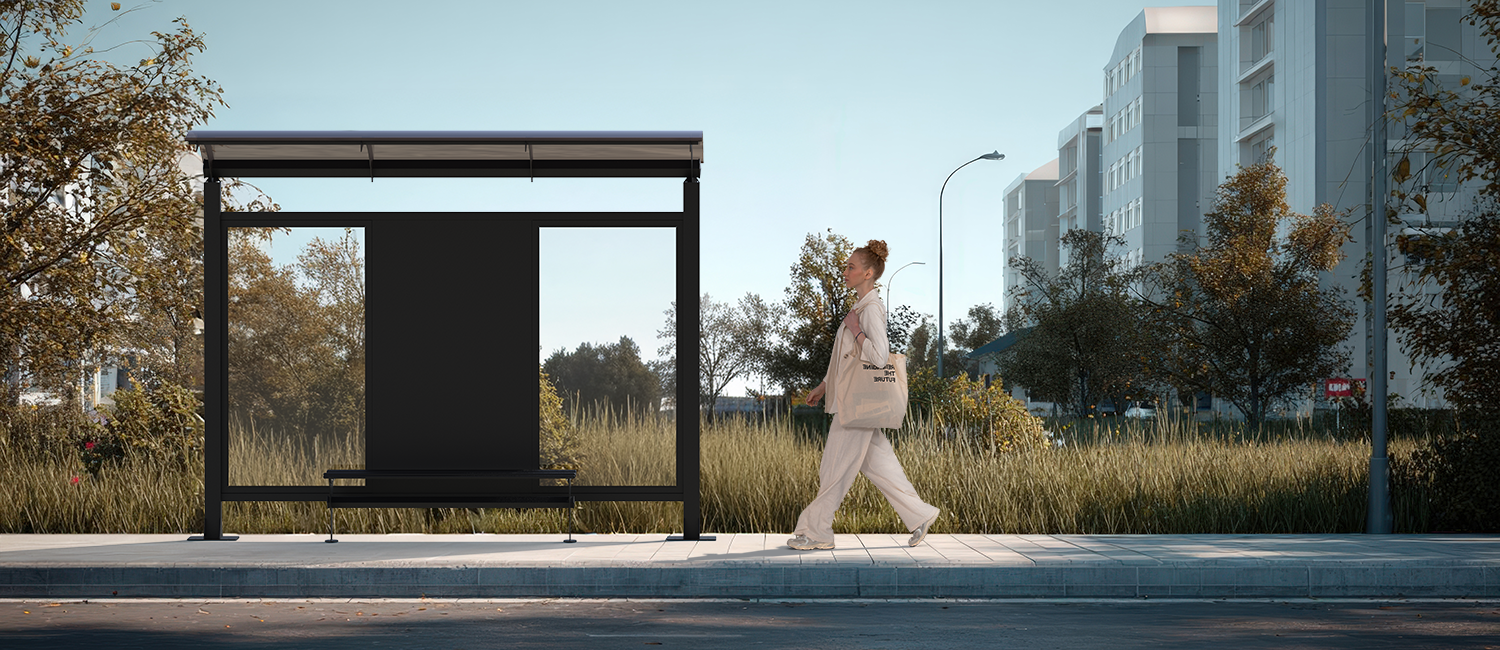

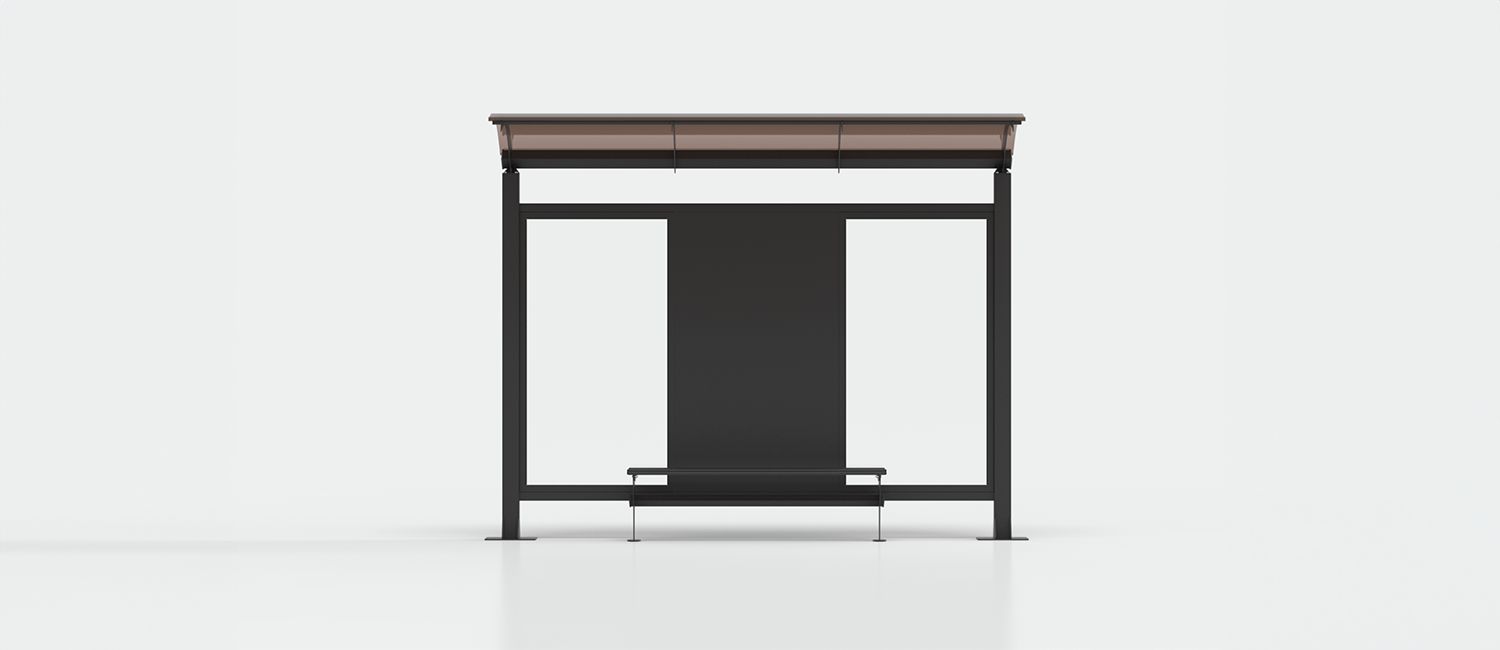

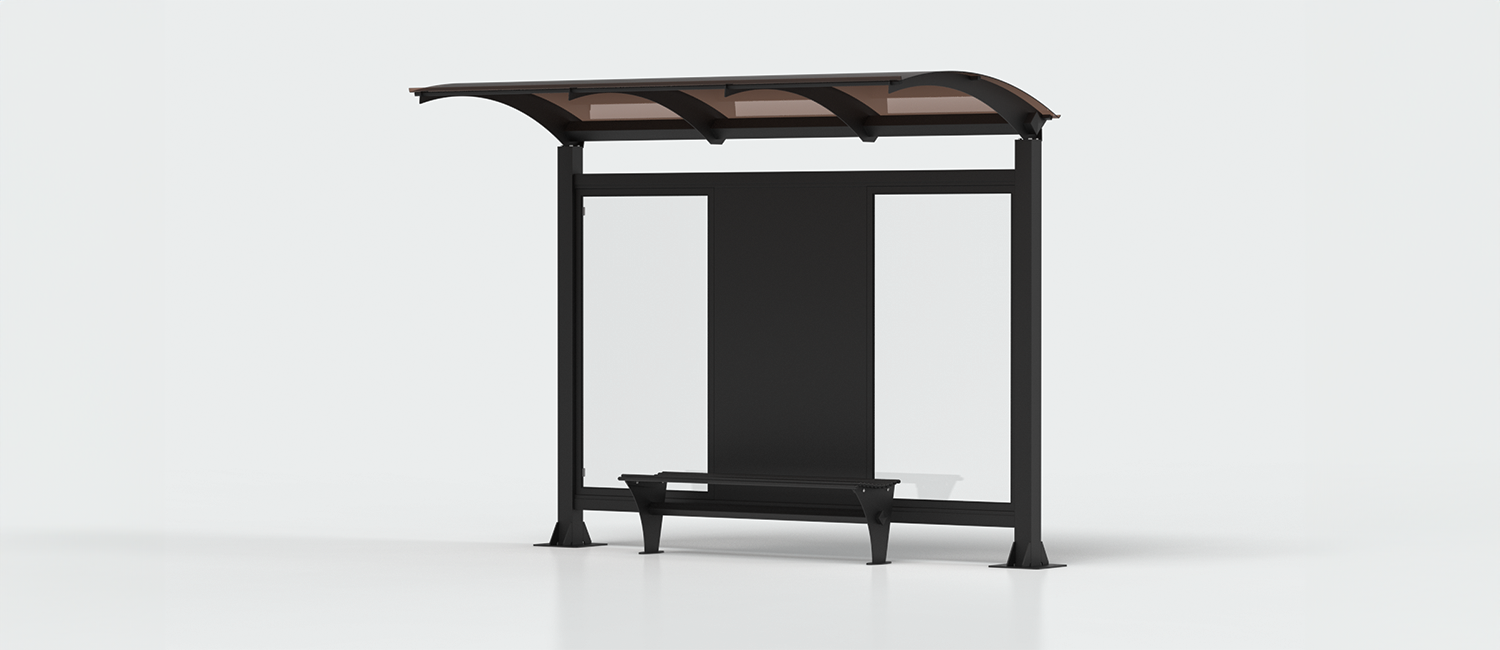

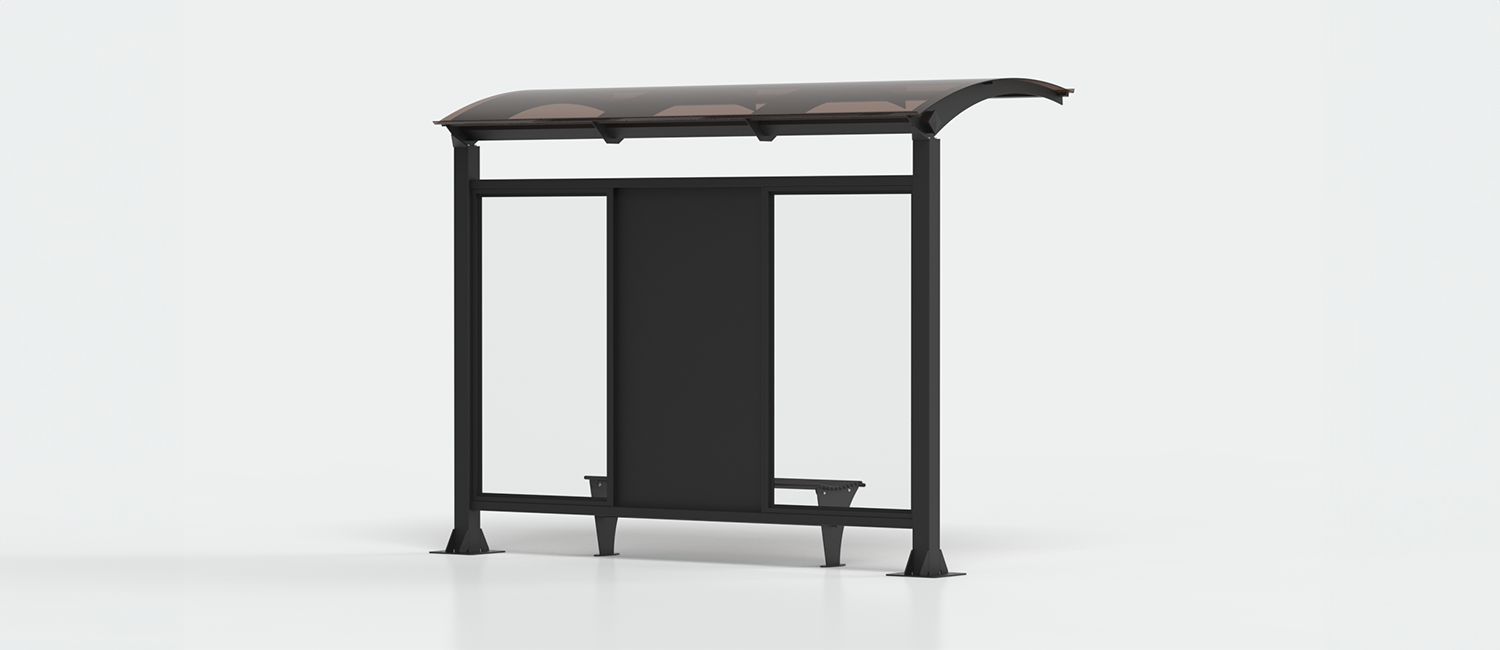

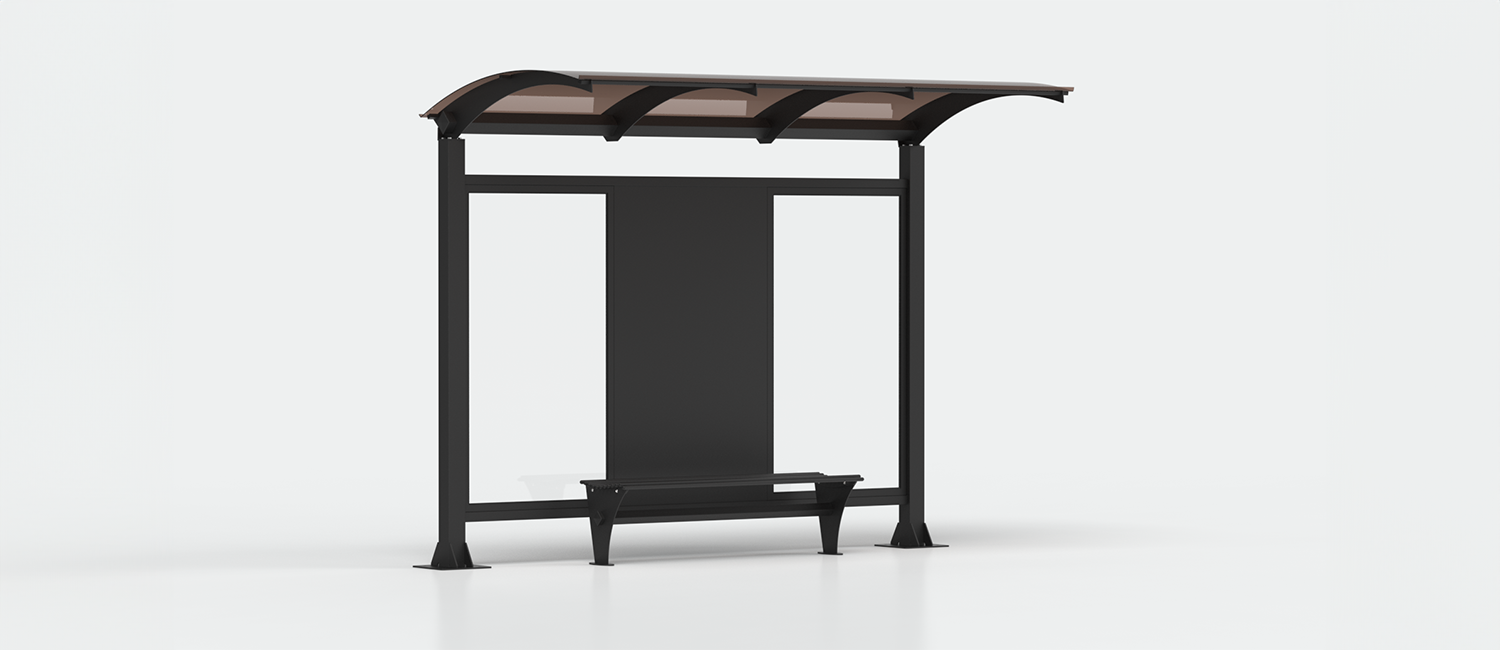

The Alessandra cantilever shelter

Creative design and advanced functionality
Made up of 2 vertical load-bearing structures made of galvanized steel square tube; each single upright is complete with a base plate, made of galvanized sheet metal with circular holes for anchoring to the concrete foundation; stiffening triangles welded between the base plate and the load-bearing structures, in galvanized sheet metal. 4 shaped upper arches, in galvanized sheet metal obtained by laser cutting, connected to each other by horizontal crosspieces in galvanized steel square tube. Each crosspiece is characterized by shaped terminals in galvanized steel. Back wall made up of 2 crosspieces (upper and lower) in galvanized steel square tube. Central module made up of galvanized sheet metal box. Lateral modules in transparent laminated glass with polished edge, inserted in a special frame with appropriate perimeter gaskets and supported by a glass holder in galvanized steel. Cover made of compact smoked polycarbonate, shatterproof, protected from UV rays and particularly suitable for outdoor use.

Technical features
  •  Rainwater drainage: The cover is characterized at the front and rear by a gutter, formed by a special shaping of the panel for the collection and drainage of rainwater.
  •  Bench: Made up of 2 supports, harmonized with the upper arches, in galvanized sheet metal obtained by laser cutting; both supports are connected to each other by a crosspiece in galvanized steel square tube. Base plates, welded to the supports, made of galvanized sheet metal; both plates are provided with circular holes for fixing to the ground. Seat made of 12 profiles in round tube of galvanized steel complete with PVC end caps with spherical head.

Request more information
To discover all the technical details of the product, you can download the detailed technical sheet.

The Alessandra cantilever shelter is also available on the "acquistinretepa - MEPA" portal by searching for the code DIMCAR447 "in product codes"

If you would like a personalized quote or a custom finish, contact us today!
