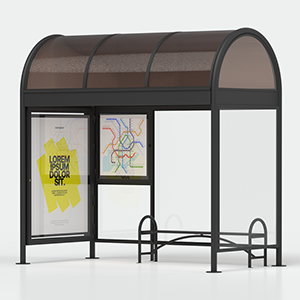

Modena shelter p165
The Modena shelter p165 is a high-quality product that meets the needs of bus waiting.
Creative design and advanced functionality

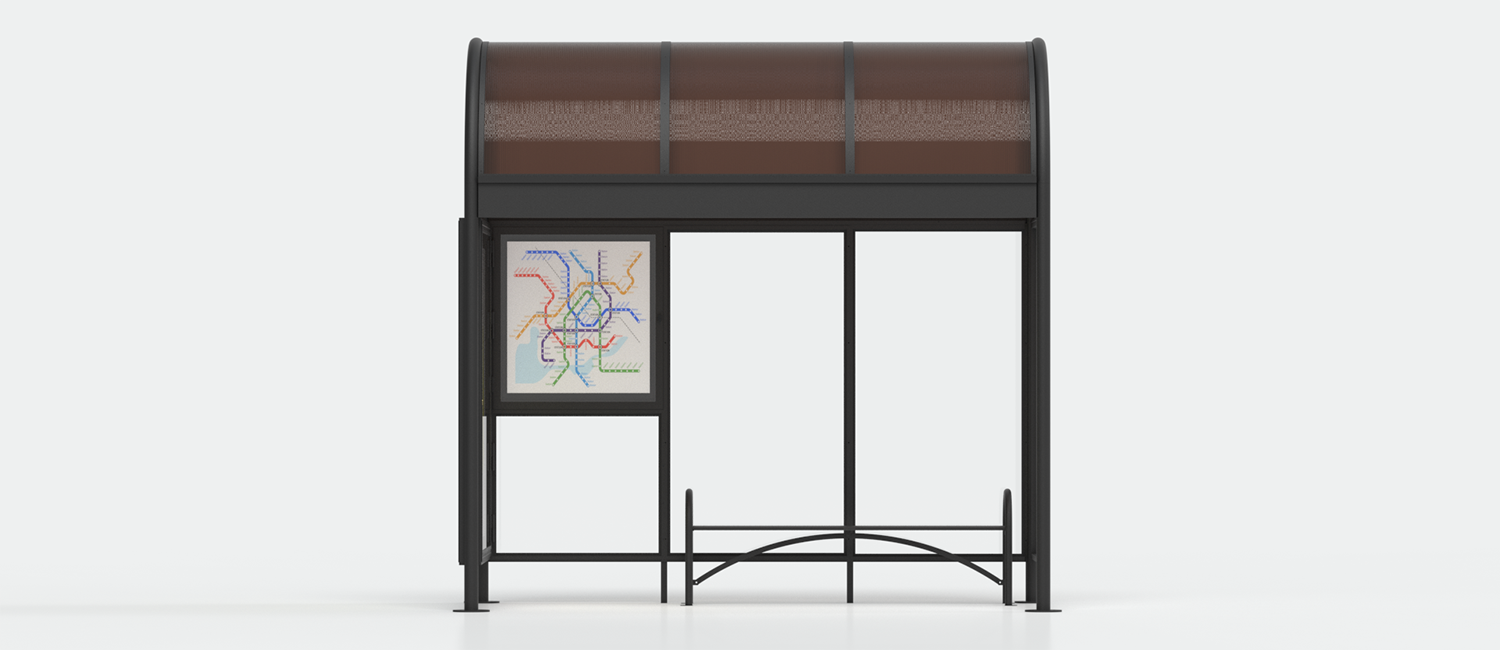

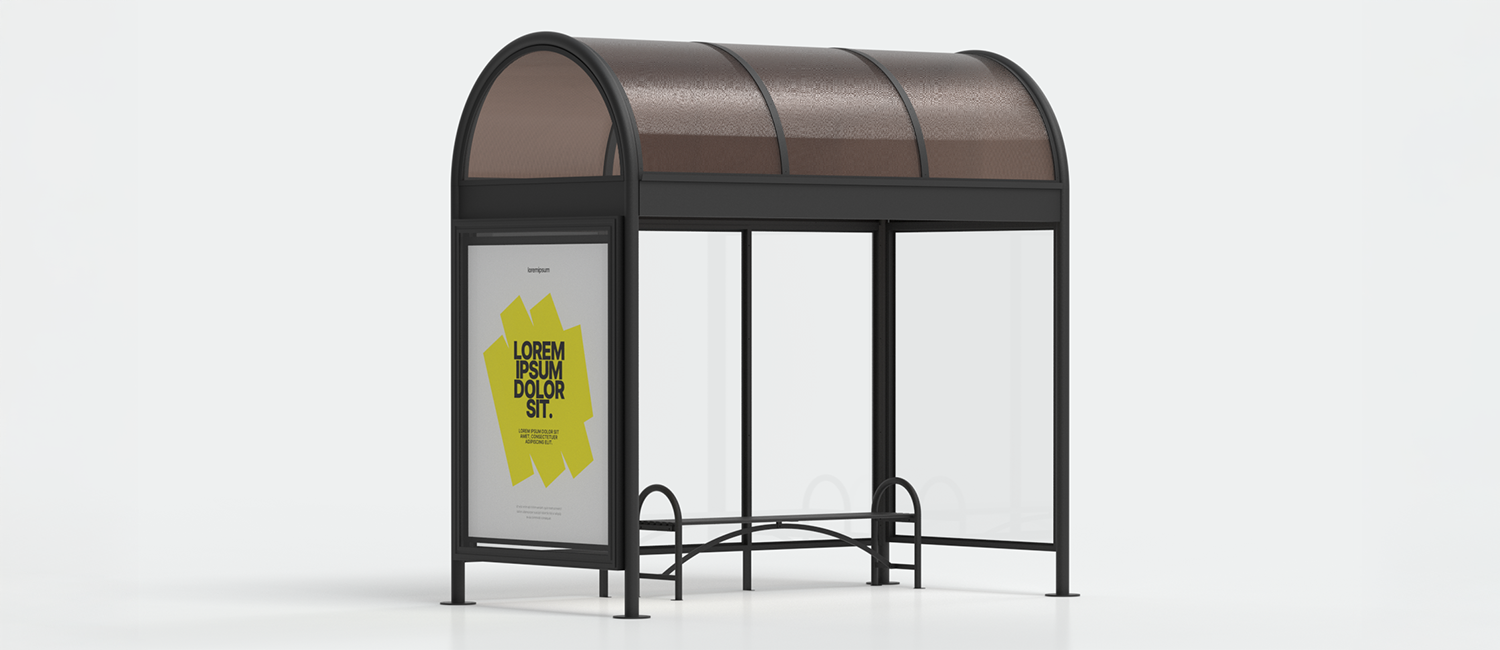

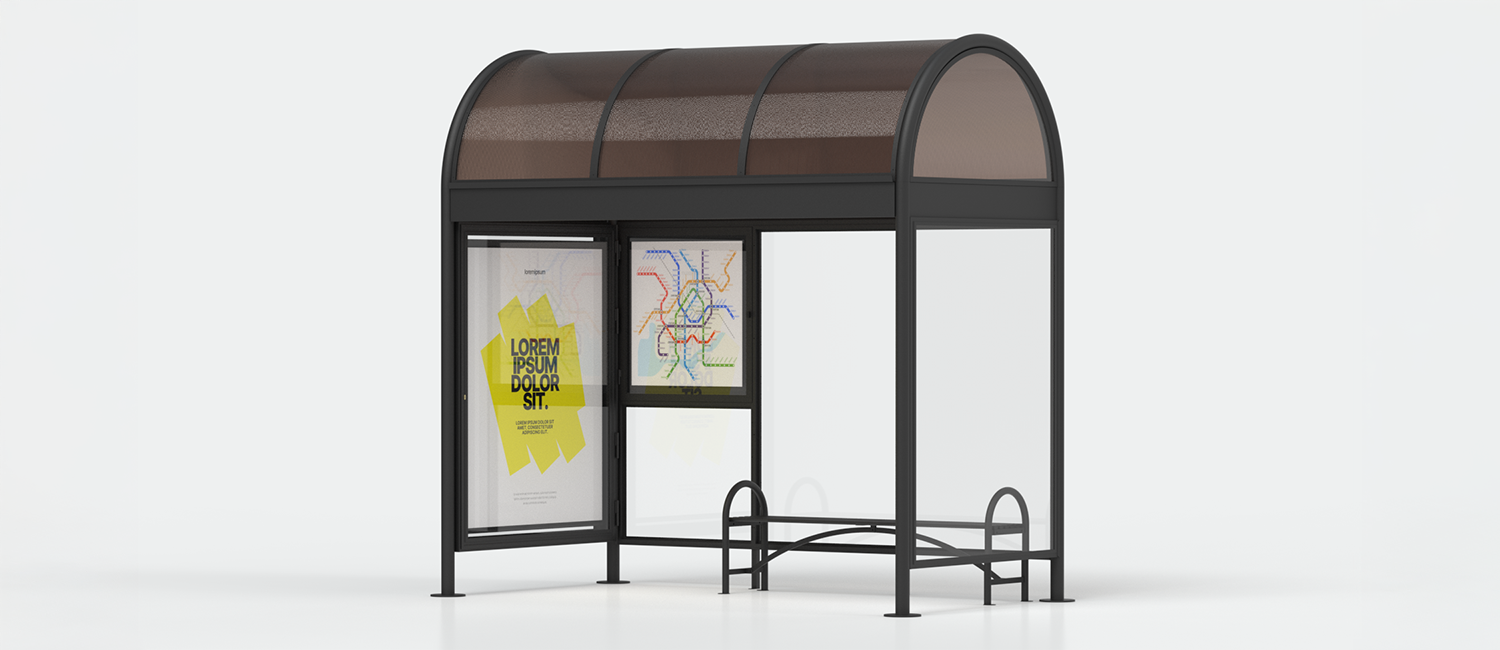

Made up of 4 vertical uprights in round galvanized steel tube; each single upright is complete with a base plate in galvanized sheet metal. 2 lateral arches, in the upper part, in round galvanized steel tube; the arches are connected and made integral with each other by 2 rectangular galvanized steel tube currents (rear and front part). Back wall made up of frames in galvanized steel profiles. Transparent laminated glass with polished edge, inserted into the frame with special gaskets and glass holder in galvanized steel angular profile. Right side walls (front view) made up of frames in galvanized steel profiles. Transparent laminated glass with polished edge, inserted into the frame with special perimeter gaskets and supported by a glass stop in galvanized steel corner profile. Left side wall (front view) consisting of a double-sided noticeboard, made of galvanized steel box; central dividing panel in galvanized sheet metal; No. 2 book-opening doors made of galvanized steel profiles and key lock. Vault-type roofing made of smoked honeycomb polycarbonate supported by arches in galvanized steel rectangular tube. Side gables in transparent compact polycarbonate, shatterproof, protected from UV rays and particularly suitable for outdoor use.
Technical features
• Infill: Infill doors in transparent laminated glass with polished edge, inserted into the frame with suitable perimeter gaskets and supported by a glass stop in galvanized steel. Posting is done using magnets.
• Rainwater drainage: Gutter, at the front, for collecting and draining rainwater.
• Bench: Bench made up of N. 2 supports in round galvanized steel tube provided with base plates in galvanized sheet metal. N. 1 stiffening arch in rectangular galvanized steel tube. Seat made up of N. 6 profiles in galvanized steel tube with oval section complete with end caps.

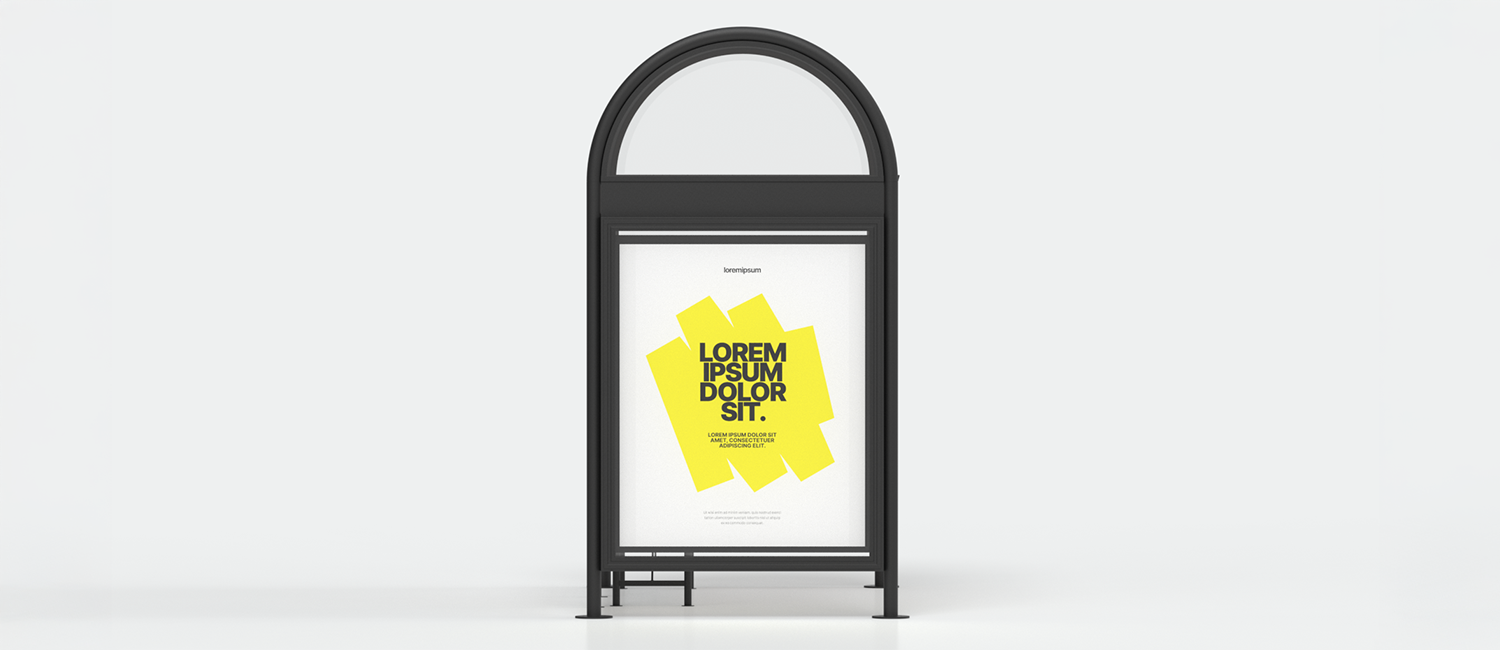

• Noticeboard: N. 1 noticeboard (left side, front view) in galvanized steel box with book-type opening door, made of galvanized steel profiles and key lock (universal key). Reading side in transparent compact polycarbonate, shatterproof, protected from UV rays and particularly suitable for outdoor use. Posting of notices or other communications using magnets.

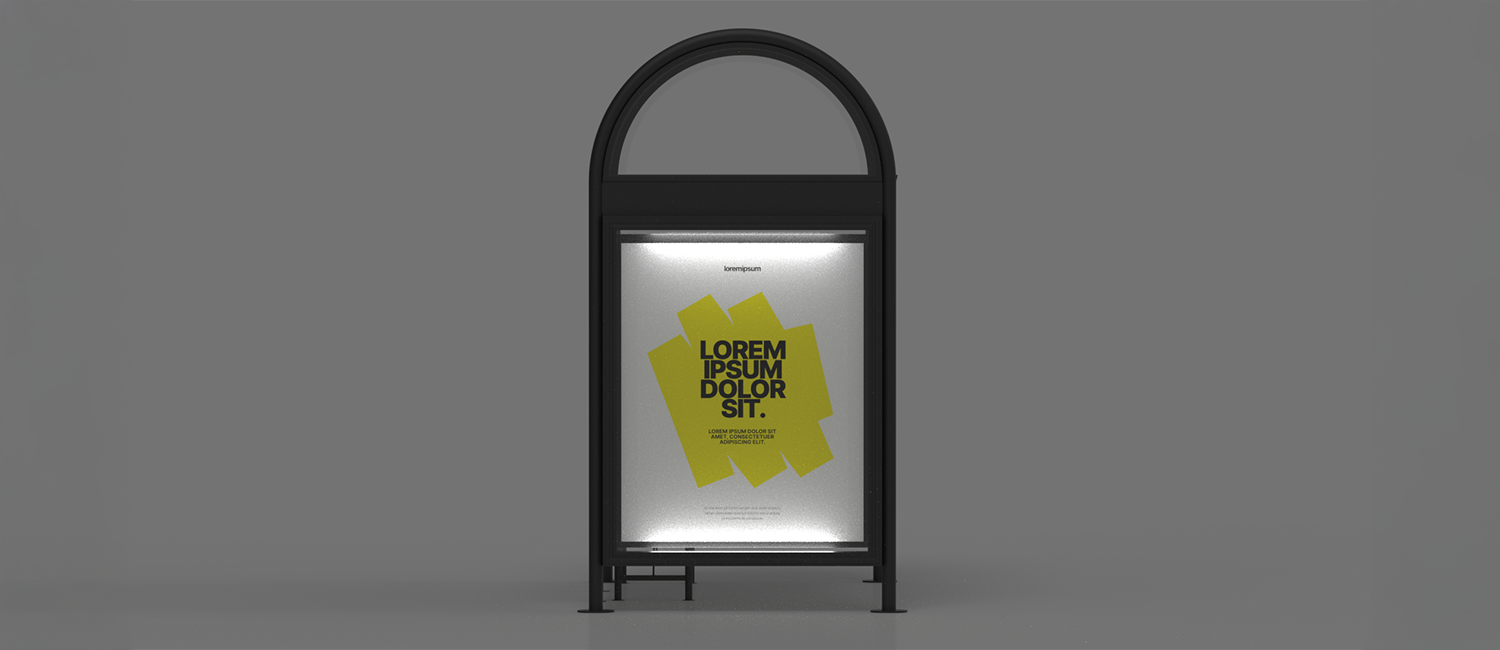

• Lighting: The noticeboard is equipped with an internal lighting system, consisting of 2 horizontally arranged LED ceiling lights (upper and lower part), with white light. Automatic switch-off system (when the door is opened), wiring and cables in compliance with standards, and power cable with output at the base for subsequent connection to the public network.
• Safe Anchoring: Designed for fixing via brackets and template, preventing tipping and unwanted movements.
Customization and Resistance for every environment
To adapt to different aesthetic needs, the shelter is available in the basic finish "gunmetal". Furthermore, upon request it is possible to request customized colors and finishes to integrate the shelter perfectly into the surrounding environment. The structure, made of galvanized steel and painted with thermosetting powders, guarantees high resistance to atmospheric agents and a long life over time.
Request more information
To discover all the technical details of the product, you can download the detailed technical sheet.
The Modena p165 cantilever shelter is also available on the "acquistinretepa - MEPA" portal by searching for the code DIMCAR311-BIS "in product codes"
If you would like a personalized quote or a custom finish, contact us today!
You can find the Modena shelter in the following versions:
Code 311: Modena shelter P95.
Code 311-BIS: Modena shelter P195.
DIMENSIONS
Smoked polycarbonate honeycomb
Galvanized Steel
Compact transparent polycarbonate
Laminated glass
Gun metal grey
