PopUp shelter
Here, even a lonely wait is a safe wait.
Codice: G543
PopUp Shelter

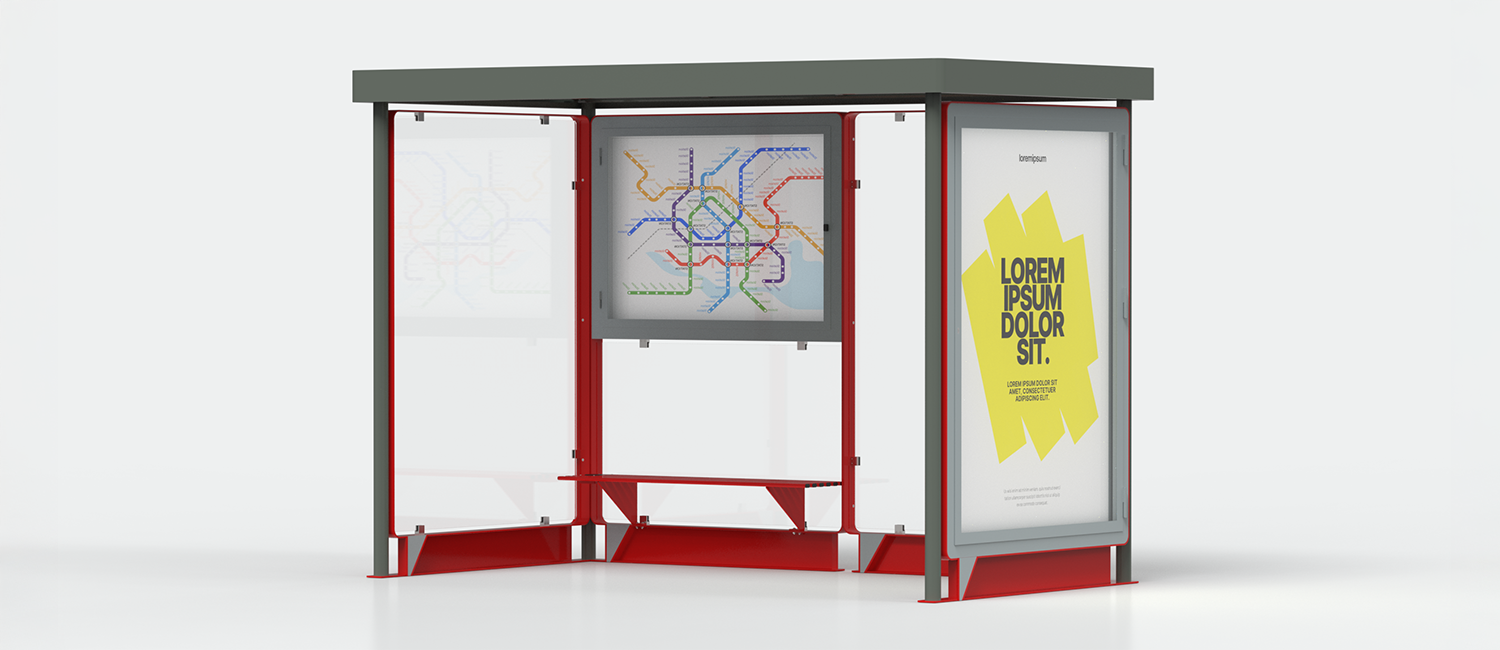

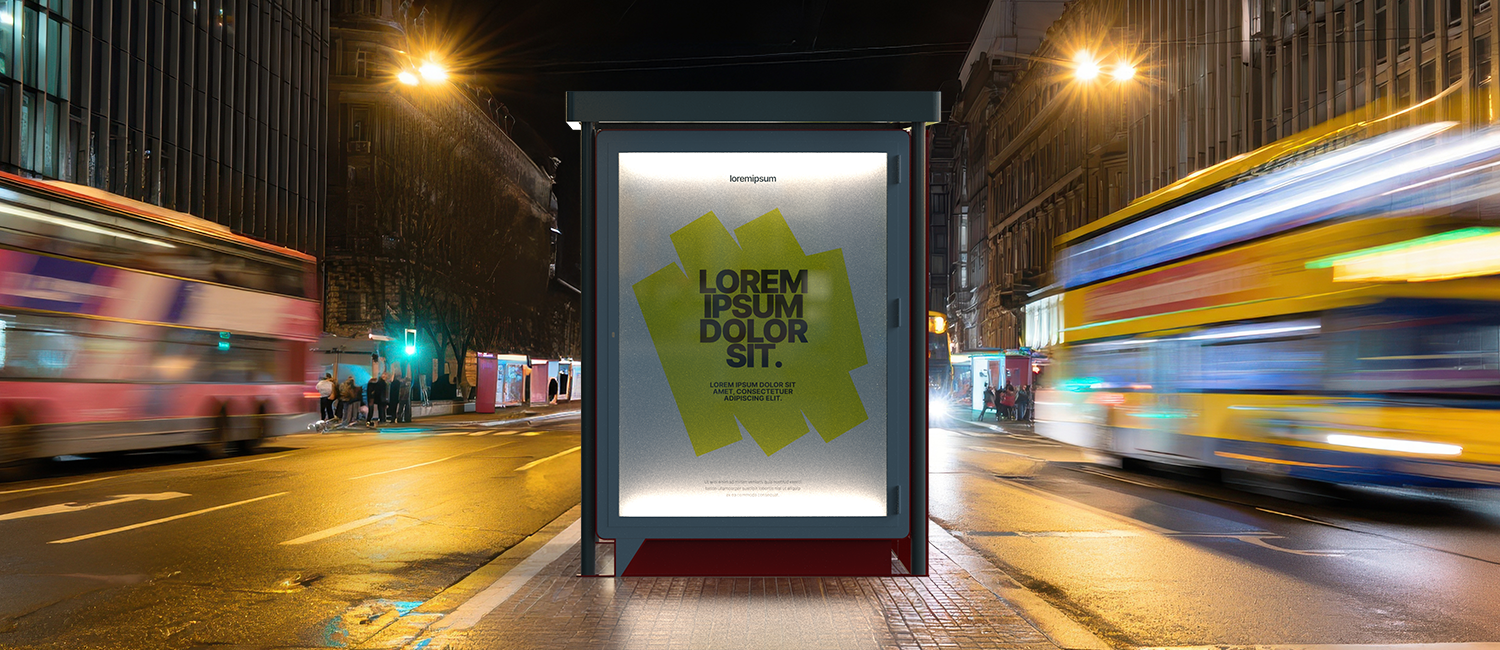

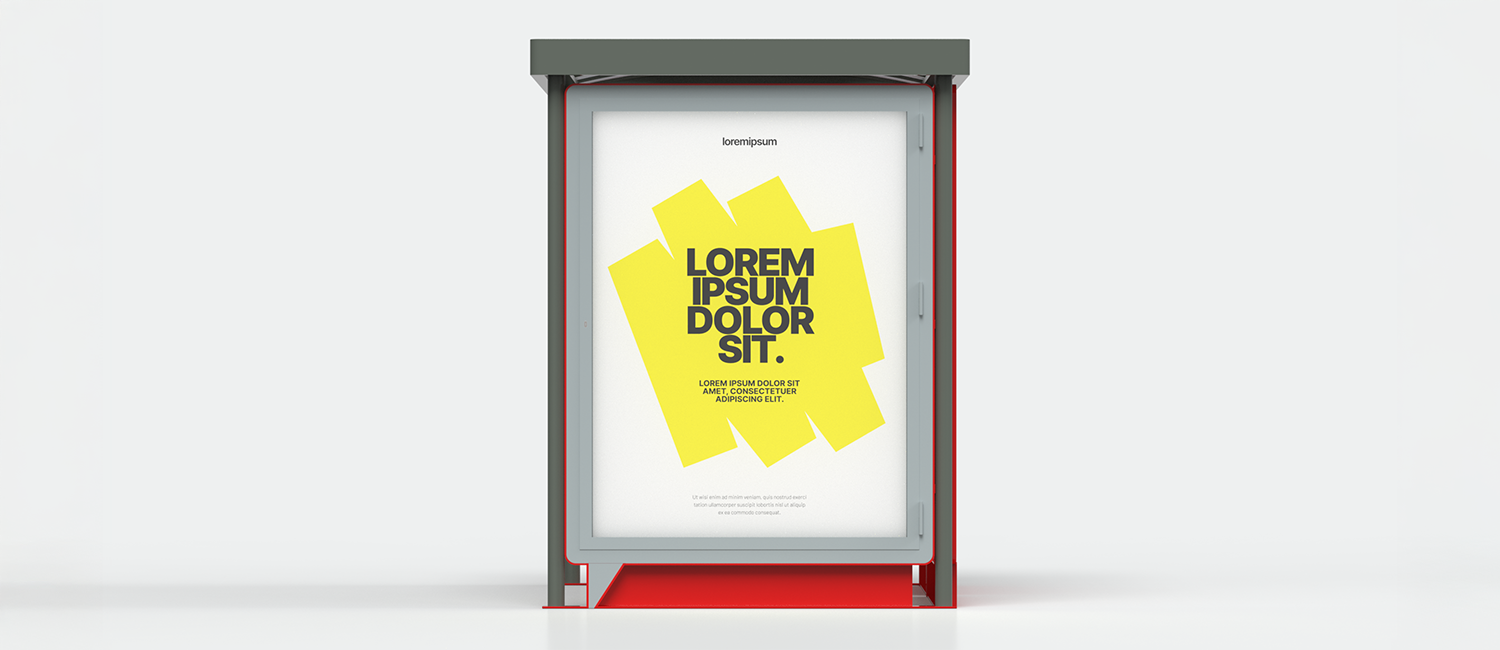

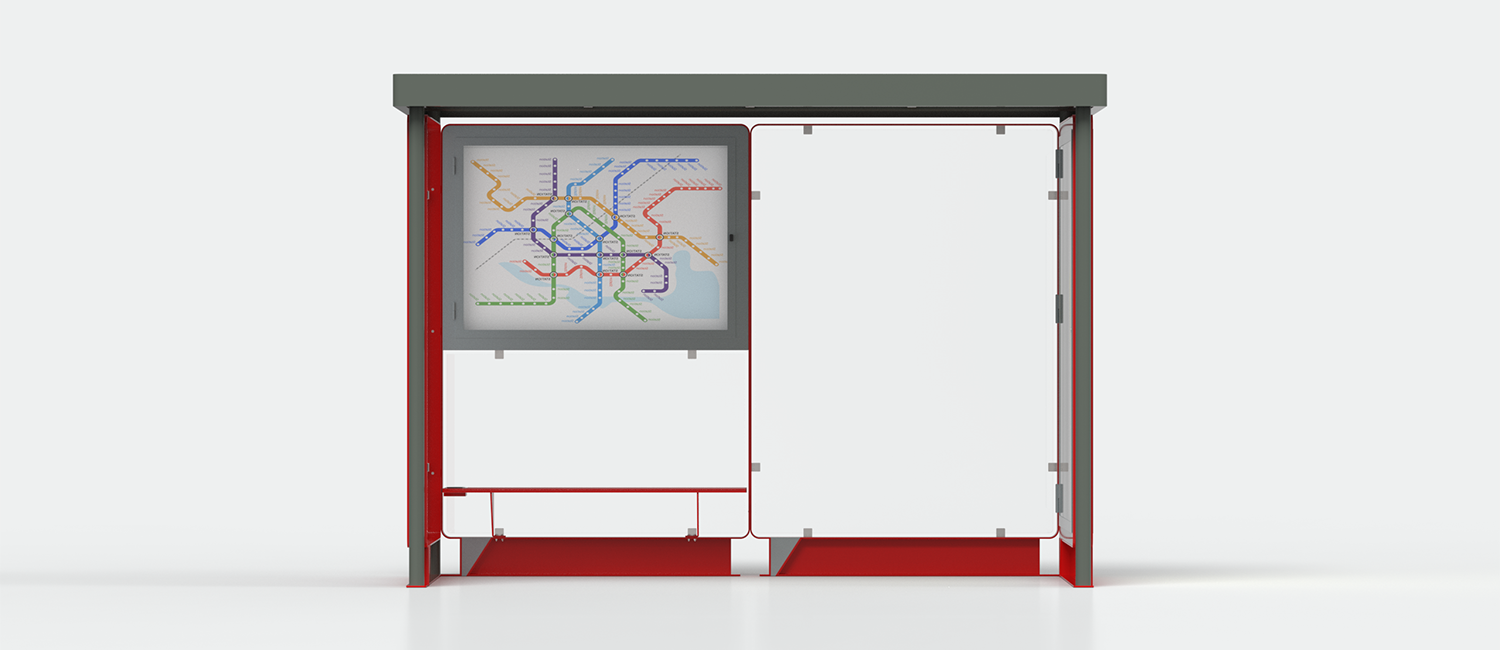

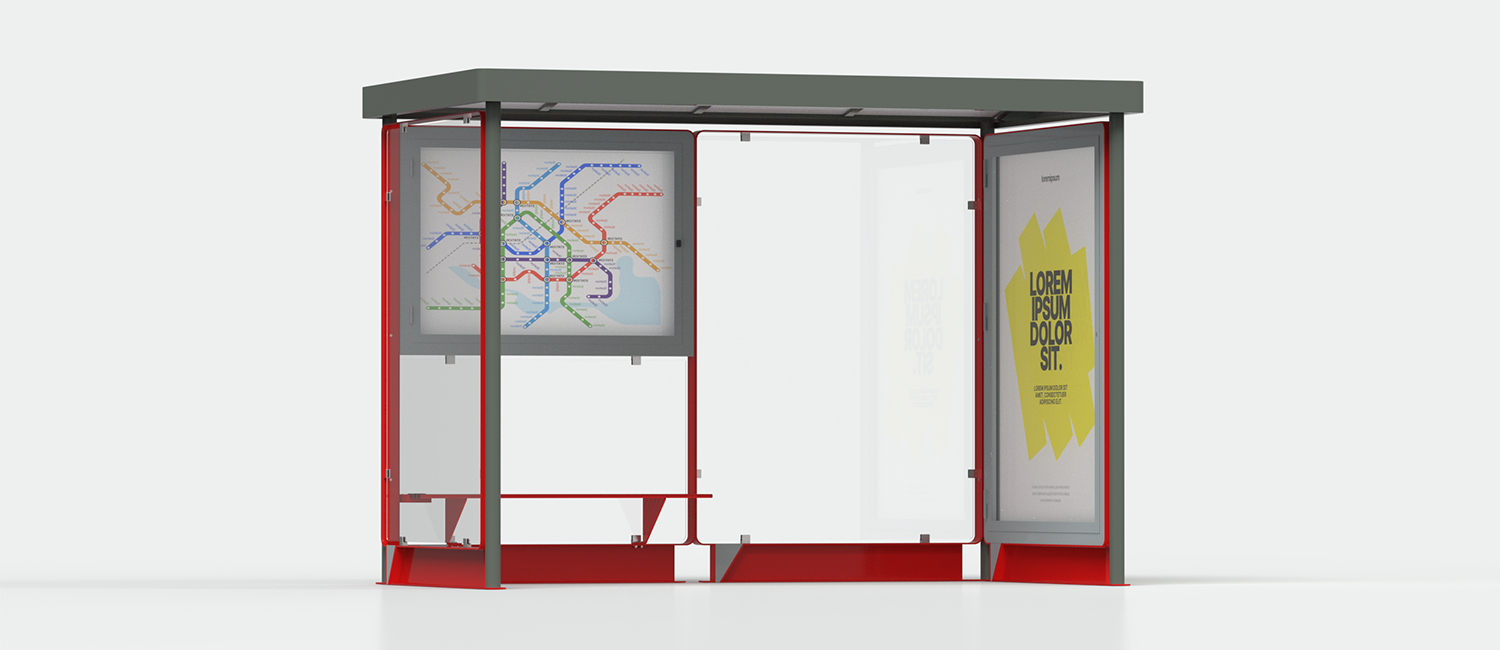

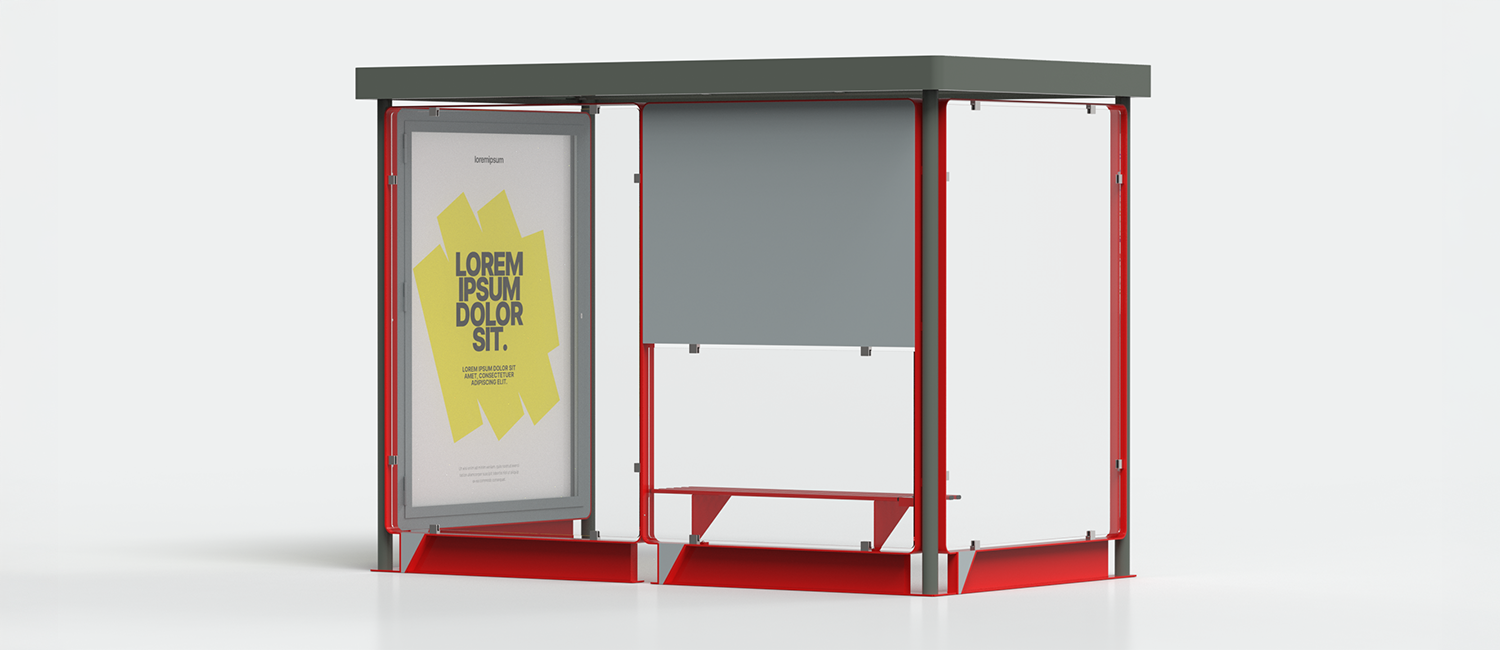

The PopUp Shelter represents an innovative solution to improve the waiting experience of bus passengers.
Creative design and advanced functionality
With its particular shape, the PopUp shelter is made up of perimeter modules made of galvanized flat iron with rounded corners and a base profile made with an IPE beam featuring a decorative "Comma" positioned at the base (front and back), and no. 4 perimeter uprights supporting the roof made of galvanized steel round tube. Covering frame made of a perimeter band in galvanized steel box and a frame made of galvanized steel profiles.
Technical features
• Infill: Left rear module with lower infill in transparent laminated glass with polished edge supported by appropriate clamps. Left side module consisting of an infill wall, with a shape in transparent laminated glass with polished edge supported by appropriate clamps. Right rear module consisting of an infill wall, with a shape in transparent laminated glass with polished edge supported by appropriate clamps. Covering frame with upper infill in opaque honeycomb polycarbonate.
• Bench: The bench is positioned on the rear frame and is made with shaped supports in galvanized steel and a seat made of oval section tube profiles. The seat is equipped with a wireless charging device for smartphones.
• Noticeboard: Right side module consisting of a noticeboard (double-sided) in galvanized steel box with central dividing panel, and N. 2 doors made of galvanized steel profiles and universal key lock. Reading front made of transparent, shatterproof, UV-protected, compact polycarbonate and particularly suitable for outdoor use. Posting using magnets.
Rear left module consisting of an upper noticeboard, made of galvanized steel box with door made of galvanized steel profiles and universal key lock. Reading front made of transparent, shatterproof, UV-protected, compact polycarbonate and particularly suitable for outdoor use; posting using magnets.

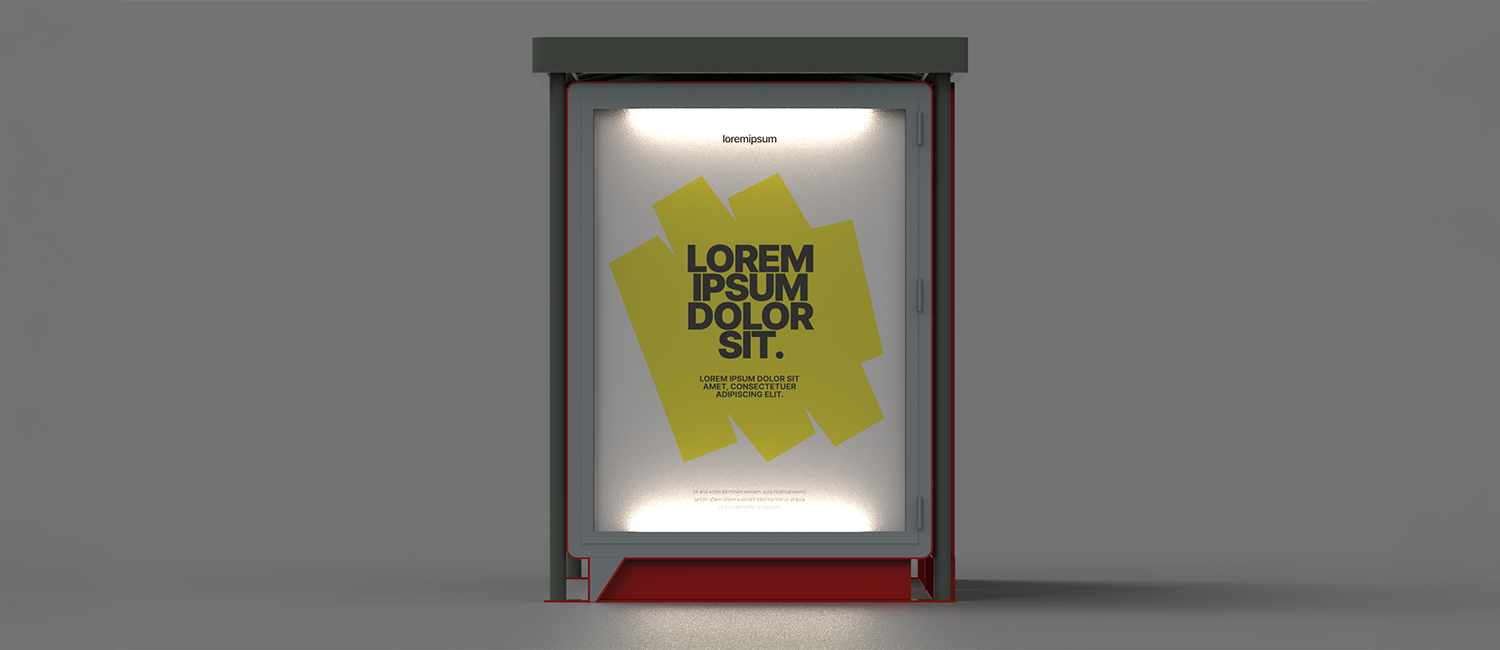

• lighting: Internal noticeboard lighting system consisting of N. 2 horizontally arranged lighting fixtures (upper and lower part); automatic power cut-off system when the doors open, wiring with standard cables and power cable with exit at the base (floor level) for subsequent connection to the public network.
• Safe Anchoring: Equipped with holes at the base for fixing to the ground, preventing tipping and unwanted movements.
Customization and Resistance for every environment
To adapt to different aesthetic needs, the shelter is available in the basic finish "traffic red RAL 3020" for the module frame, "silver grey RAL 7001" for the boxed noticeboards and lower commas of the modules, while "mouse grey RAL 7005" for the roof uprights. Furthermore, upon request it is possible to request customized colors and finishes to integrate the shelter perfectly into the surrounding environment. The structure, made of galvanized steel and painted with thermosetting powders, guarantees high resistance to atmospheric agents and a long life over time.
Request more information
To discover all the technical details of the product, you can download the detailed technical sheet.
The PopUp shelter is also available on the "acquistinretepa - MEPA" portal by searching for the code DIMCARG543 "in product codes"
If you would like a personalized quote or a custom finish, contact us today!
Materials
-
Galvanized steel
-
Compact polycarbonate
-
Alveolar polycarbonate
-
Glass
Certifications
EN 1090: Legally Required
A bus shelter isn't just a piece of street furniture, it's a construction project and, as such, must ensure the safety of those who use it.
Since 2011, the bus shelter has been a product that must be certified by the CE Mark therefore its production is governed by the strict norm EN 1090-1 2009 + A1:2011.
In order to work in compliance with the law, it is necessary that the carpentry...
