Shelter Gabry

Gabry shelter

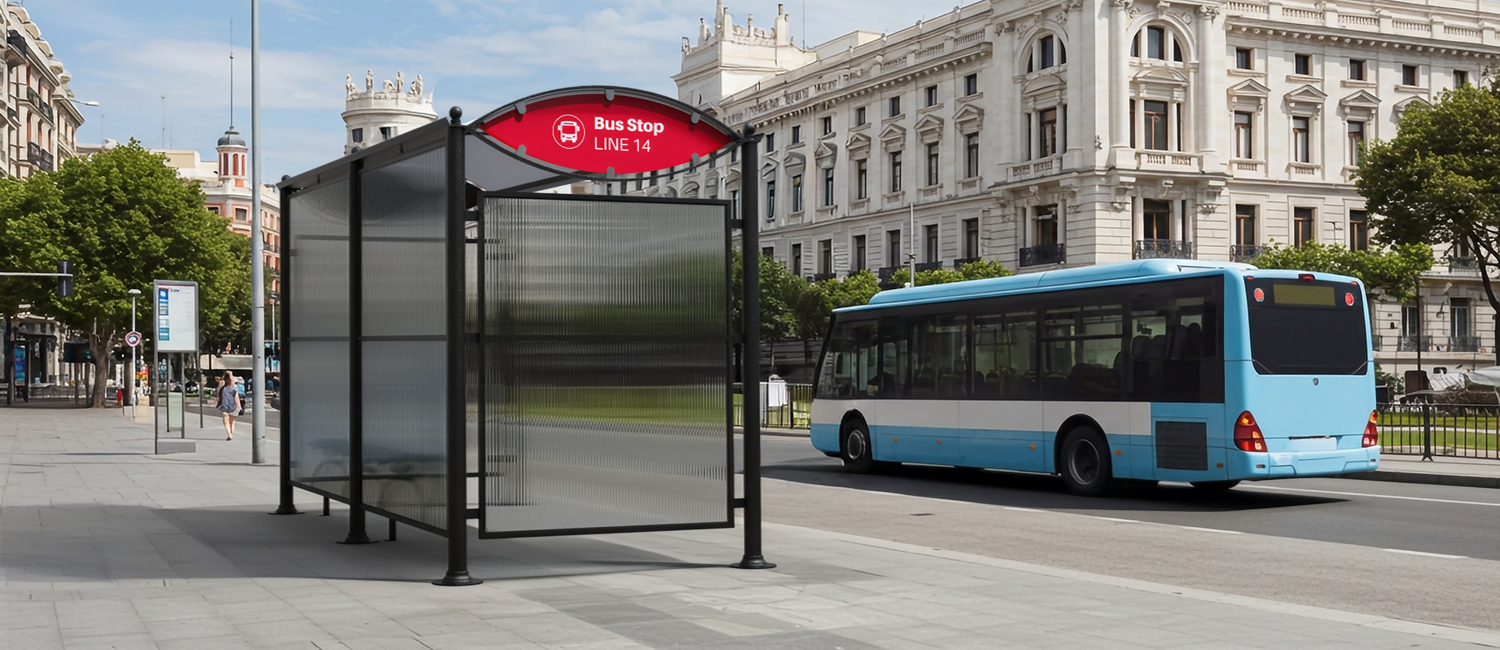

The Gabry shelter offers a practical and comfortable waiting area for commuters.

Creative design and advanced functionality
Composed of 5 vertical uprights in galvanized steel round tube, complete with flange at the base. Each individual upright is surmounted, in the upper part, by a decorative frieze. Back and side walls made of a perimeter frame in galvanized steel angular profile, and infill panels in transparent honeycomb polycarbonate supported by profiles in galvanized steel rectangular tube. Covering characterized by oblong lateral shapes, intended for the affixing of any graphics and/or wording, made of galvanized sheet metal and supported by special clamps fixed on opposing arches made of galvanized steel rectangular tube. Covering frame made of galvanized sheet metal profile and arches in galvanized steel rectangular tube.

Technical features
  •  Infill: Infill in opaque honeycomb polycarbonate complete with glass holder in galvanized sheet metal.
  •  Rainwater drainage: The roof is equipped with a front and rear gutter for collecting and draining rainwater.
  •  Bench: Bench made up of 3 shaped supports in galvanized steel round tube, each equipped with a galvanized sheet metal base plate; seat made with 12 profiles in galvanized steel round tube complete with end caps.
 • Safe Anchoring: Equipped with holes at the base for fixing to the ground, preventing tipping and unwanted movements.


Customization and Resistance for every environment
To adapt to different aesthetic needs, the shelter is available in the basic finish "gunmetal". Furthermore, upon request it is possible to request customized colors and finishes to integrate the shelter perfectly into the surrounding environment. The structure, made of galvanized steel and painted with thermosetting powders, guarantees high resistance to atmospheric agents and a long life over time.

Request more information
To discover all the technical details of the product, you can download the detailed technical sheet.

The Gabry cantilever shelter is also available on the "acquistinretepa - MEPA" portal by searching for the code DIMCAR256 "in product codes"

If you would like a personalized quote or a custom finish, contact us today!
