Shelter Liberty

Liberty shelter

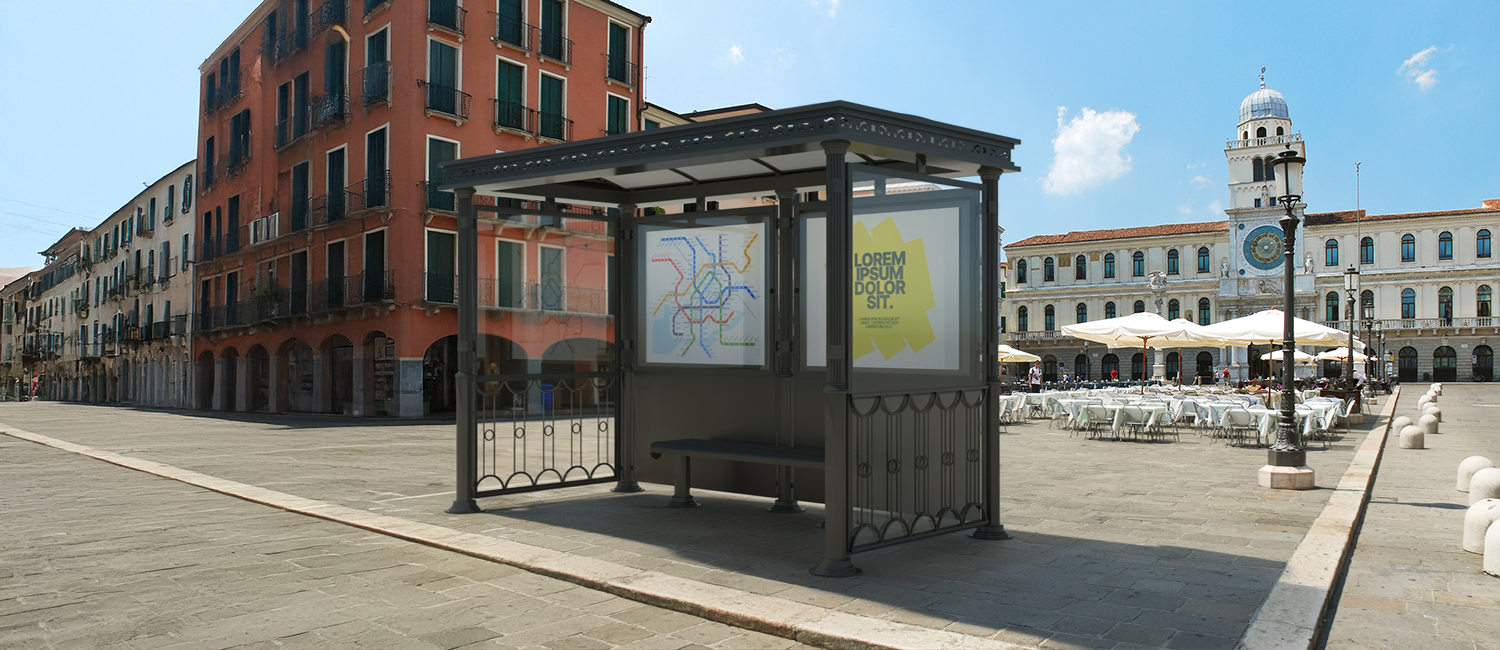

The Liberty shelter is a high quality product that meets the needs of bus waiting.

Creative design and advanced functionality

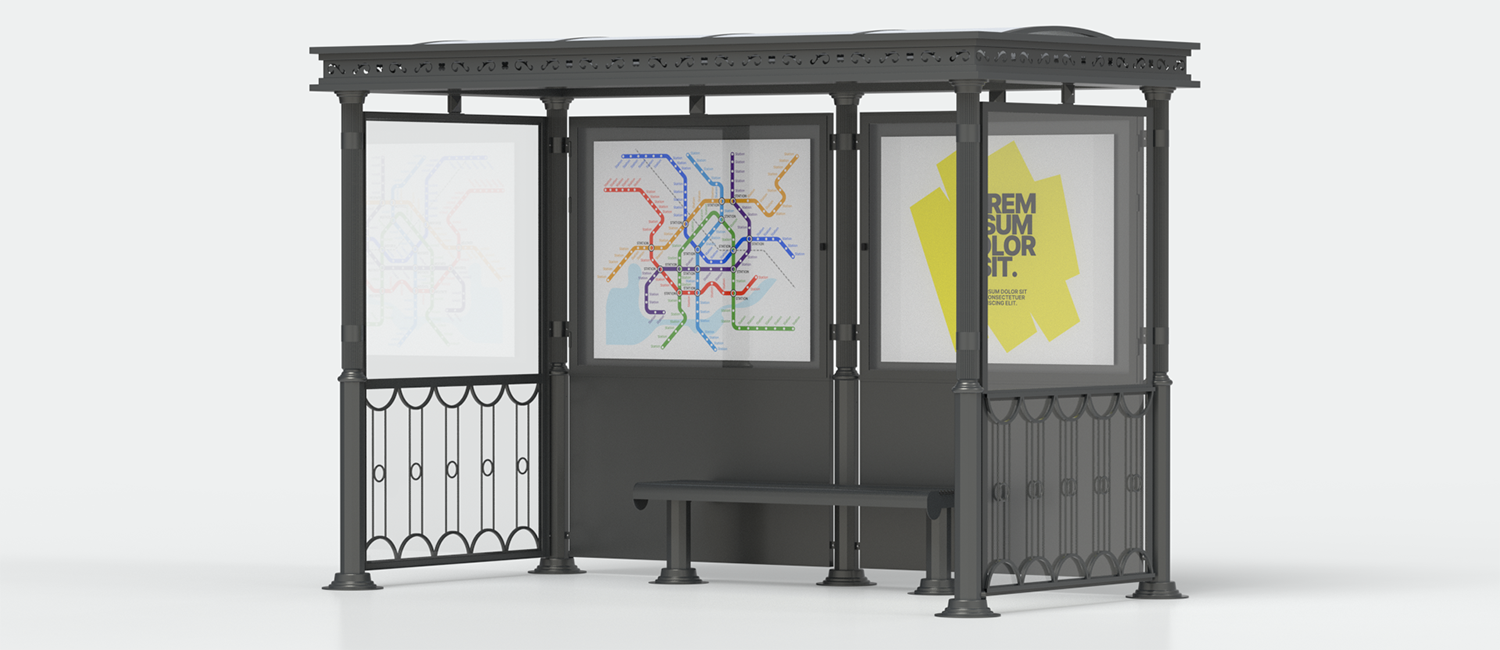

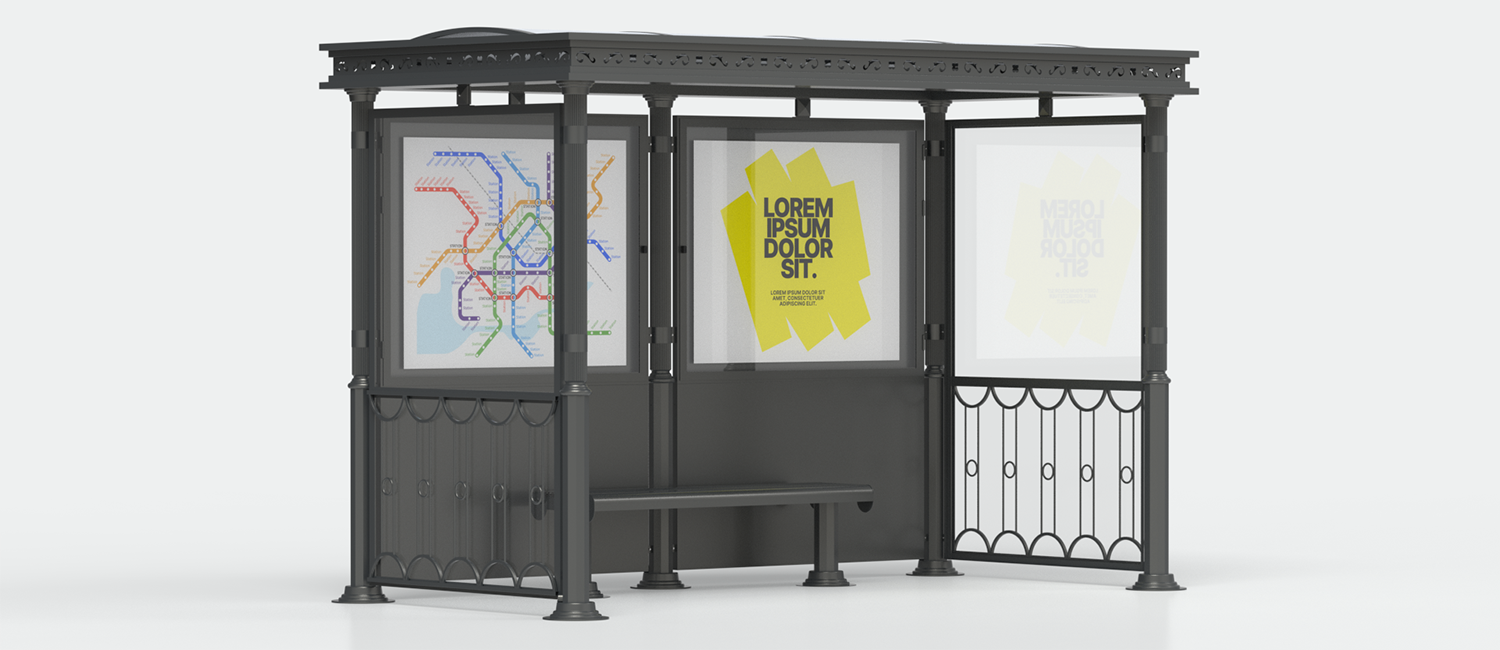

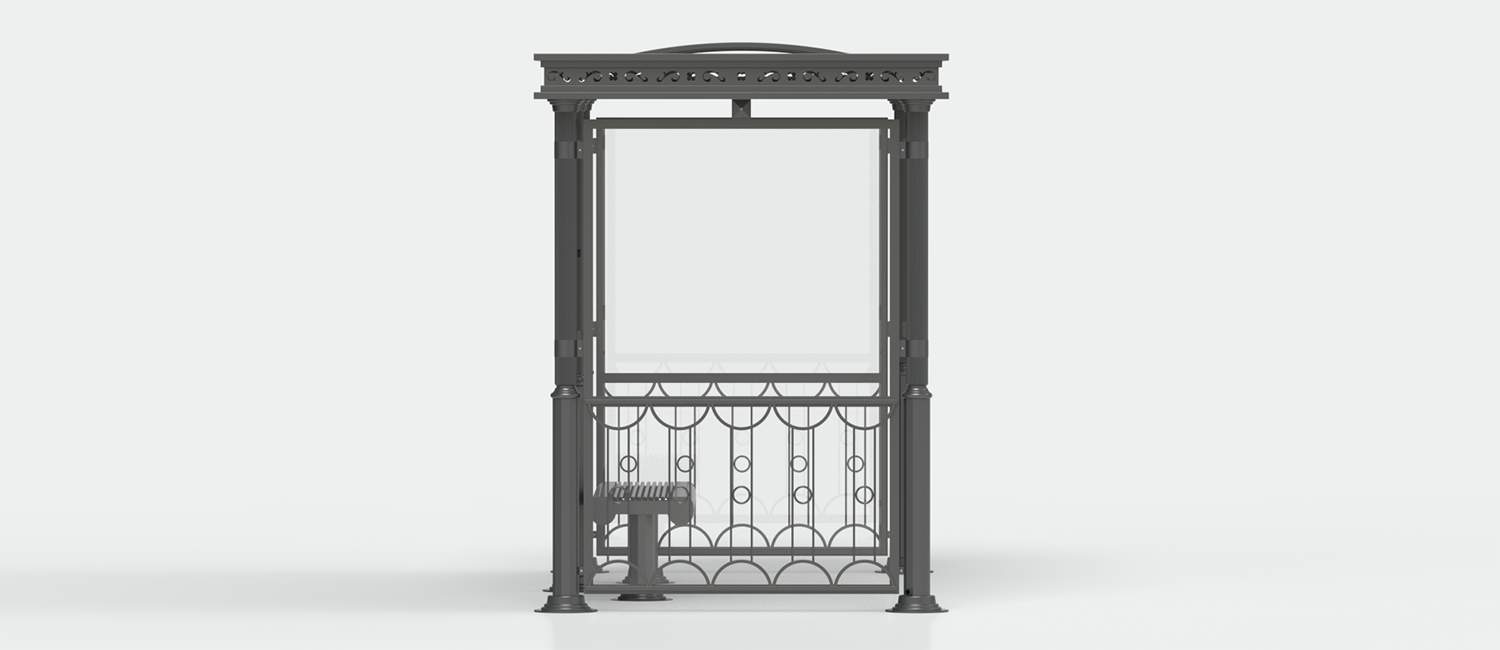

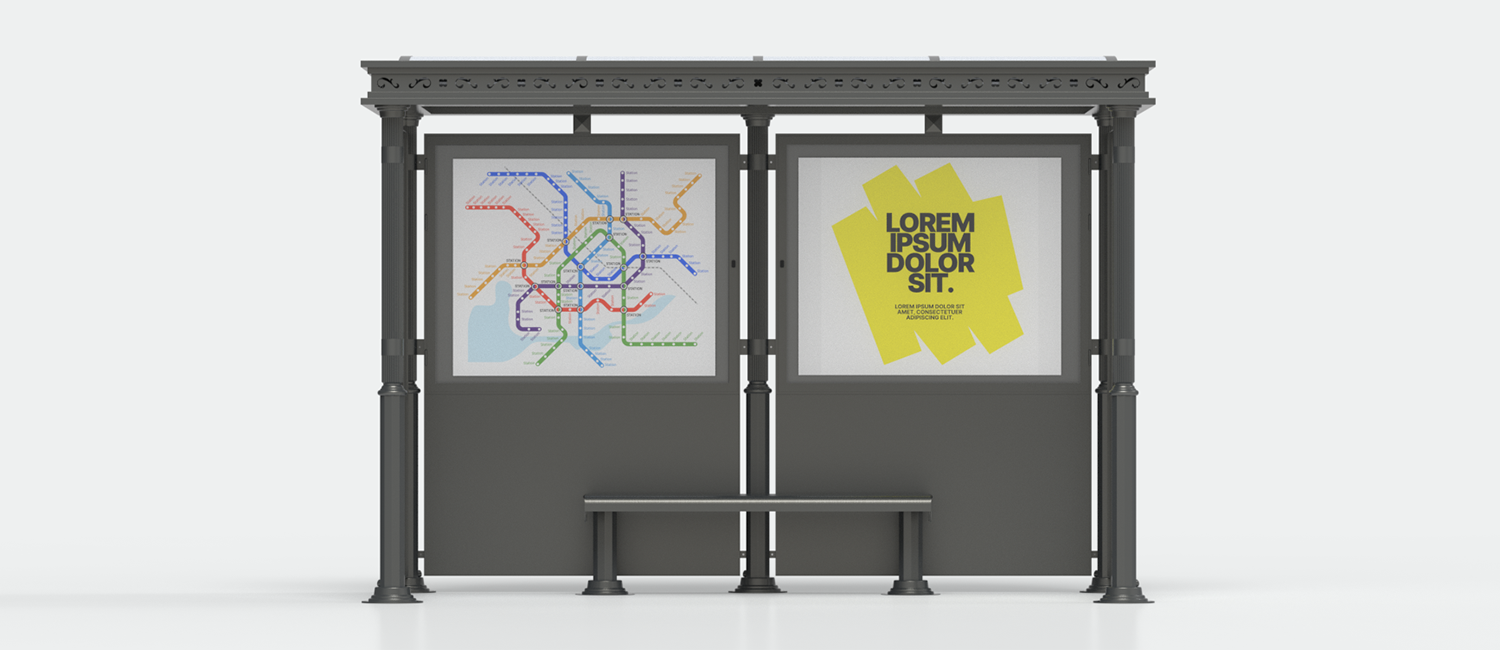

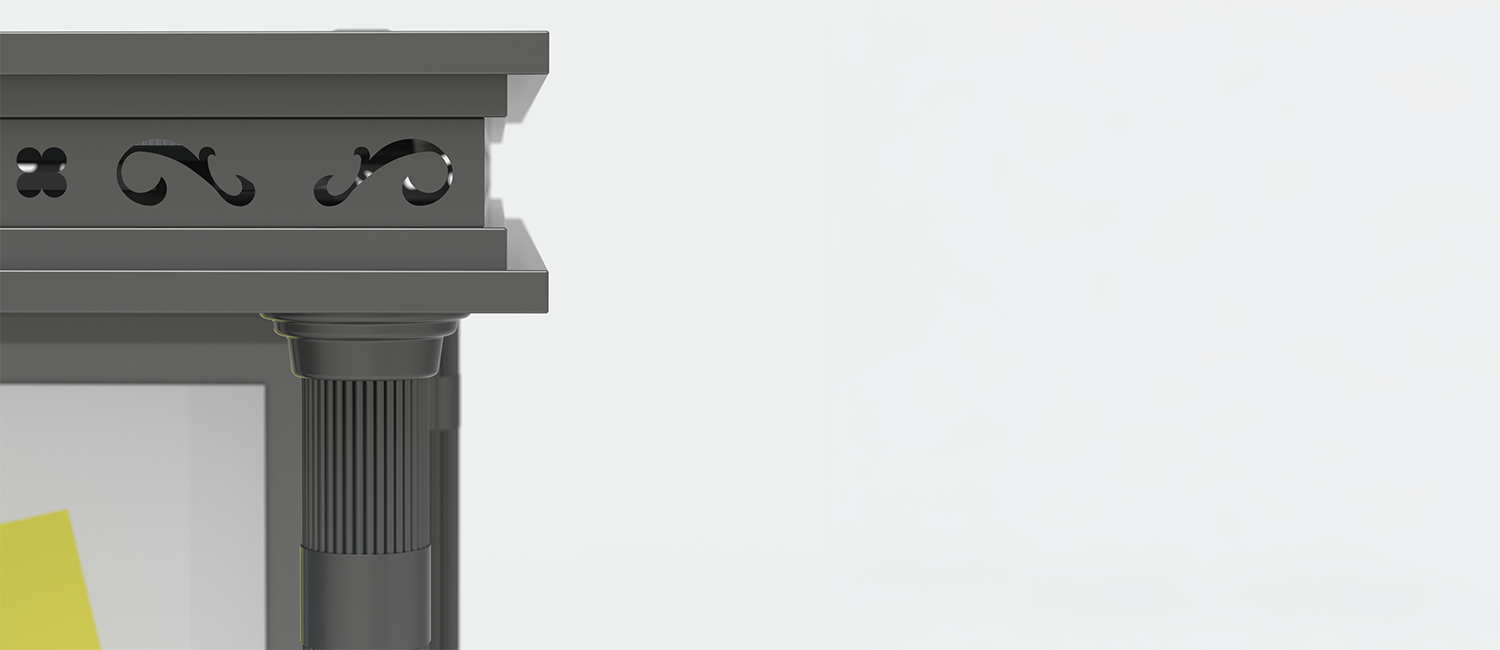

Made up of 5 columns that start from the bottom in a decagonal shape and become in the upper part, a round structure made of galvanized steel tube covered by 37 decorative rods in solid galvanized tube. At the center of the column a decorative element in turned steel separates the lower part from the upper part. Two elegant bands wrap around the decorative rods that end at the top with an ornamental capital. Each single column is complete with a flange at the base. Roof in pure Liberty style, made of galvanized steel in which two cantilevered perimeter frames enclose a band characterized by stylised decorative floral carvings. The roof rests on the capitals of the columns and is secured to the walls by means of 4 geometric decorations. The internal covering has a vaulted movement and is made of opaque honeycomb polycarbonate supported by arches in rectangular galvanized steel tube. Back walls made of galvanized steel. Side walls made of perimeter frame in angular galvanized steel profile; transparent paneling in compact unbreakable polycarbonate, protected from UV rays and particularly suitable for outdoor use. The sealing and fixing of the paneling is ensured by profiles in rectangular galvanized steel tube. In the lower part, railing made with arches in square galvanized steel tube, vertical bars and central rings in solid galvanized round.

Technical features

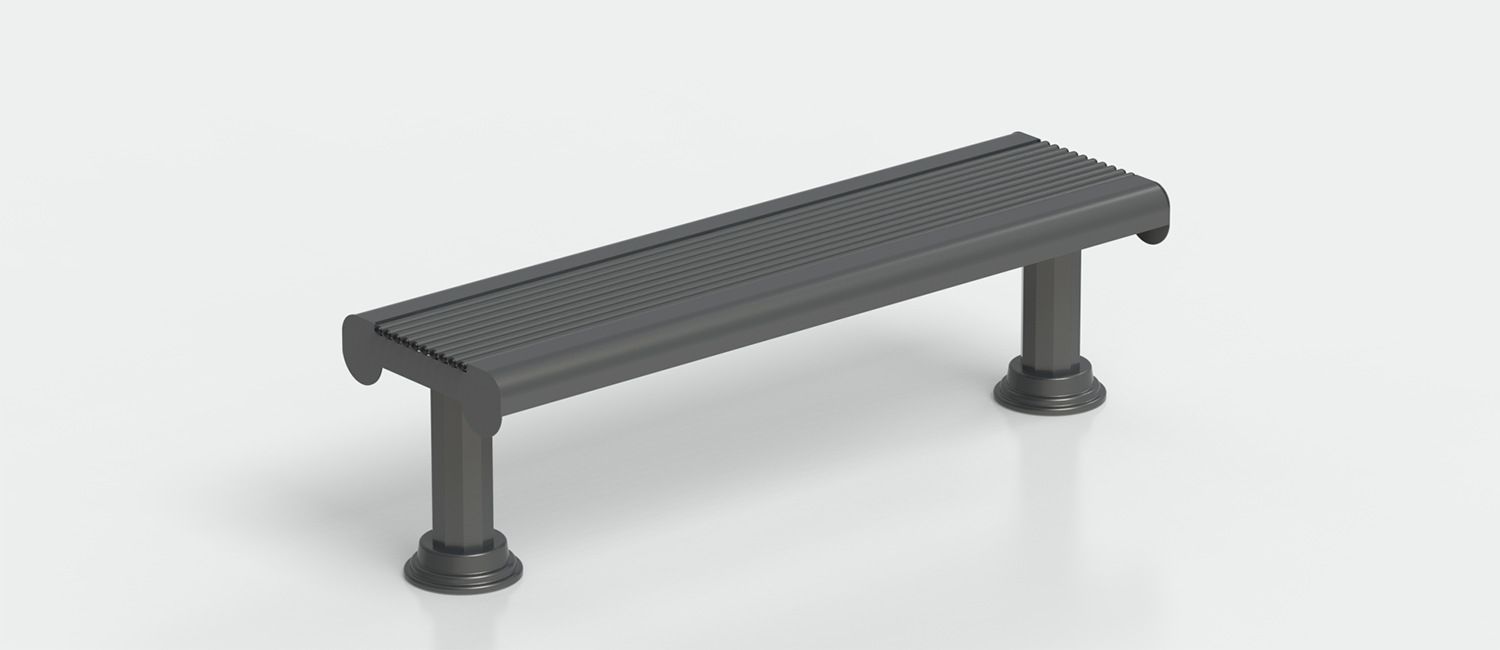

  •  Bench: Bench made of N. 2 decagonal-shaped supports made of galvanized sheet metal; each individual support is equipped with a flange at the base; No. 2 external profiles in galvanized steel with rounded corners and No. 8 internal profiles in galvanized steel round tube complete with PVC end caps with spherical head.
  •  Noticeboard: No. 2 display noticeboards equipped with a book-style opening door with key lock are obtained in the upper half of the back walls. The insertion of notices or other communications is done using magnets. Reading side made of transparent compact polycarbonate, unbreakable, protected from UV rays and particularly suitable for outdoor use.
  • Safe Anchoring: Designed for fixing via brackets and template, preventing tipping and unwanted movements.


Customization and Resistance for every environment
To adapt to different aesthetic needs, the shelter is available in the basic finish "gunmetal". Furthermore, upon request it is possible to request customized colors and finishes to integrate the shelter perfectly into the surrounding environment. The structure, made of galvanized steel and painted with thermosetting powders, guarantees high resistance to atmospheric agents and a long life over time.

Request more information
To discover all the technical details of the product, you can download the detailed technical sheet.

The Liberty cantilever shelter is also available on the "acquistinretepa - MEPA" portal by searching for the code DIMCAR306 "in product codes"

If you would like a personalized quote or a custom finish, contact us today!
