Shelter Romagna with sides walls

Romagna shelter - with side walls

The Romagna cantilever shelter is a modern solution for waiting for the bus, designed to offer comfort and safety to users.

Creative design and advanced functionality
Made up of N. 2 lateral vertical uprights, made with shaped profiles in galvanized steel; each single upright is characterized by a rounded external corner, and is complete at the base with a shaped plate and stiffening supports, made of galvanized sheet metal and obtained by cutting with laser technology. Central upright made of rectangular galvanized steel tube, complete with base plate in galvanized sheet metal. Covering frame made up of N. 3 shaped arches, made of galvanized sheet metal and obtained by laser cutting; the arches are connected and made integral with each other by N. 2 galvanized steel round tube currents complete with plastic terminal caps with spherical heads. Front band of the roof, removable type, consisting of a press-bent profile made of galvanized sheet metal prepared for the possible application of stickers with the name of the stop.

Technical characteristics
  •  Infill: Rear wall made of galvanized steel profiles and infill in transparent compact polycarbonate. Side walls made of galvanized steel profiles, infill in transparent laminated safety glass with polished edge complete with gaskets. The walls are equipped in the front part with a support upright, made of galvanized steel round tube complete with plate at the base.
  •  Rainwater drainage: Finally, the roof is equipped in the rear part with a gutter for the collection and drainage of rainwater.
  •  Noticeboard:Rear wall consisting of a right module (front view) made of galvanized steel box, embedded between the vertical uprights, and equipped with an advertising noticeboard with an opening door. The door is closed by a special lock with key. The roof is characterized by a frame made of galvanized steel rectangular tube to support the upper infill, made of opaque honeycomb polycarbonate. Left module (front view) made of galvanized steel box, embedded between the vertical uprights, and equipped with a noticeboard (upper part) for inserting notices using magnets, with an opening door made of galvanized steel profiles and transparent compact polycarbonate infill. The door is closed by a special lock with key.

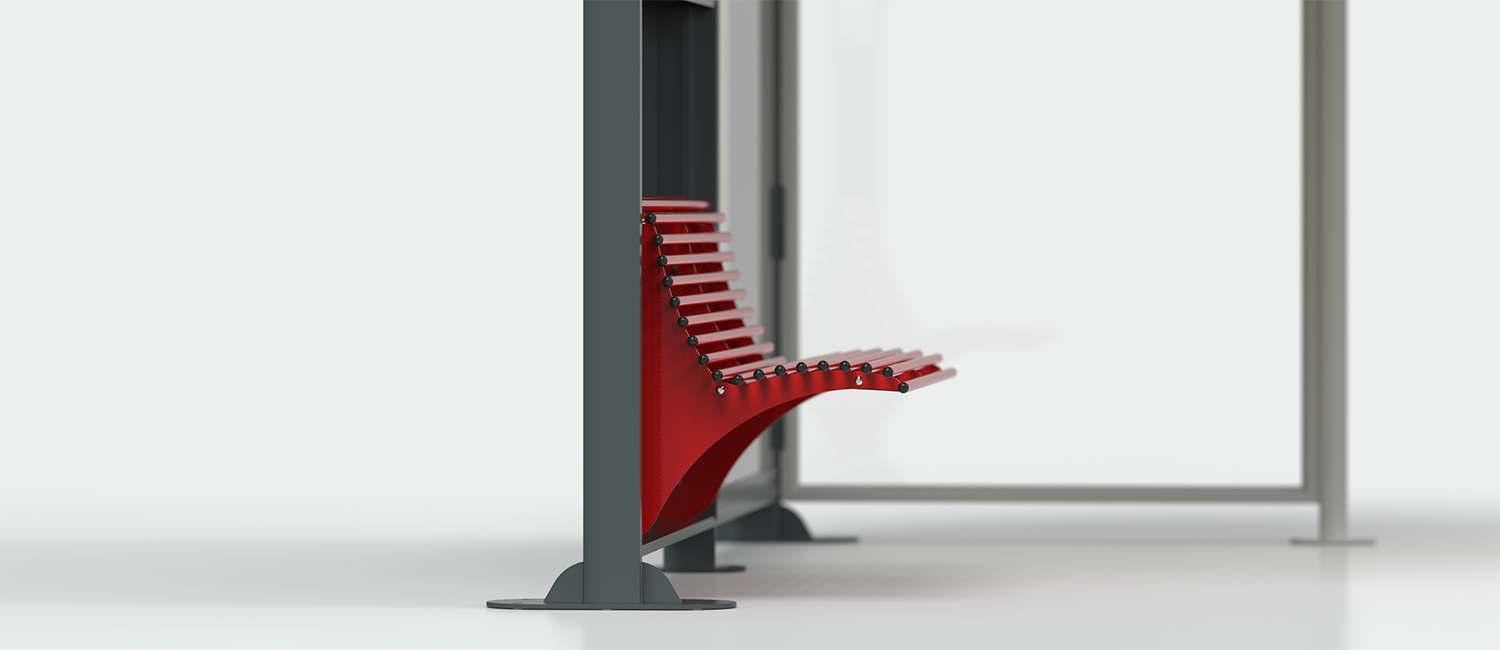

  •  Bench: Bench inserted in the lower part of the left module, composed of N. 2 shaped supports, made of galvanized sheet metal obtained by laser cutting; seat backrests made of galvanized steel round tube profile welded onto special anatomically shaped templates. The profiles are complete with plastic end caps with spherical heads.
  •  Lighting: The timetable noticeboard is equipped with a lighting system consisting of N. 2 LED ceiling lights positioned on the sides with a system for interrupting the power supply when the door is opened, and provision for power supply by means of a cable with outlet at the base for connection to the public network.
  • Safe Anchoring: Designed for fixing via brackets and template, preventing tipping and unwanted movements.


Customization and Resistance for every environment
To adapt to different aesthetic needs, the shelter is available in the basic finish "yellowish orange RAL 2000" for the bench, "traffic blue RAL 5017" for the frame and roof, while "mouse grey RAL 7005" for the rear modules. Furthermore, upon request it is possible to request customized colors and finishes to integrate the shelter perfectly into the surrounding environment. The structure, made of galvanized steel and painted with thermosetting powders, guarantees high resistance to atmospheric agents and a long life over time.

Request more information
To discover all the technical details of the product, you can download the detailed technical sheet.

The Romagna shelter with side walls is also available on the "acquistinretepa - MEPA" portal by searching for the code DIMCAR263-BIS "in product codes"

If you would like a personalized quote or a custom finish, contact us today!

You can find the Romagna shelter in the following versions:
Code 263: Romagna shelter with cantilever.
Code 263-BIS: Romagna shelter with side walls.
