Shelter Space with sides walls

We build more than a stop: we build an emotion.

Codice: 368

Space shelter

This shelter is the ideal solution to ensure comfort and safety while waiting for the bus.

Creative design and advanced functionality
Composed of N. 3 vertical load-bearing structures, made of uprights in round galvanized steel tube (lower and upper part). Each single upright is complete with a circular plate at the base, in galvanized sheet metal and stiffening triangles connecting the uprights and the plates, also made of galvanized sheet metal. N. 1 front vertical upright, made of round galvanized steel tube complete with circular plate at the base in galvanized sheet metal. Covering frame made of N. 3 arches in galvanized steel profiles; the arches are connected and made integral with each other by a frame in square section galvanized steel tube. Covering made of compact smoked polycarbonate, unbreakable, protected from UV rays and particularly suitable for outdoor use.

Technical features
  •  Infill: Back wall made of frames in galvanized steel angular profile, infill in transparent laminated glass with polished edge, inserted in the frame with suitable perimeter seals and supported by galvanized steel glass stops. Door infills in transparent laminated glass with polished edge, inserted in the frame with suitable perimeter seals and supported by galvanized steel glass stops. The affixing is done using magnets.
  •  Rainwater drainage: In the front part, a strip is obtained by means of press-bending, designed to accommodate a PVC sticker; rear gutter for the collection and drainage of rainwater.

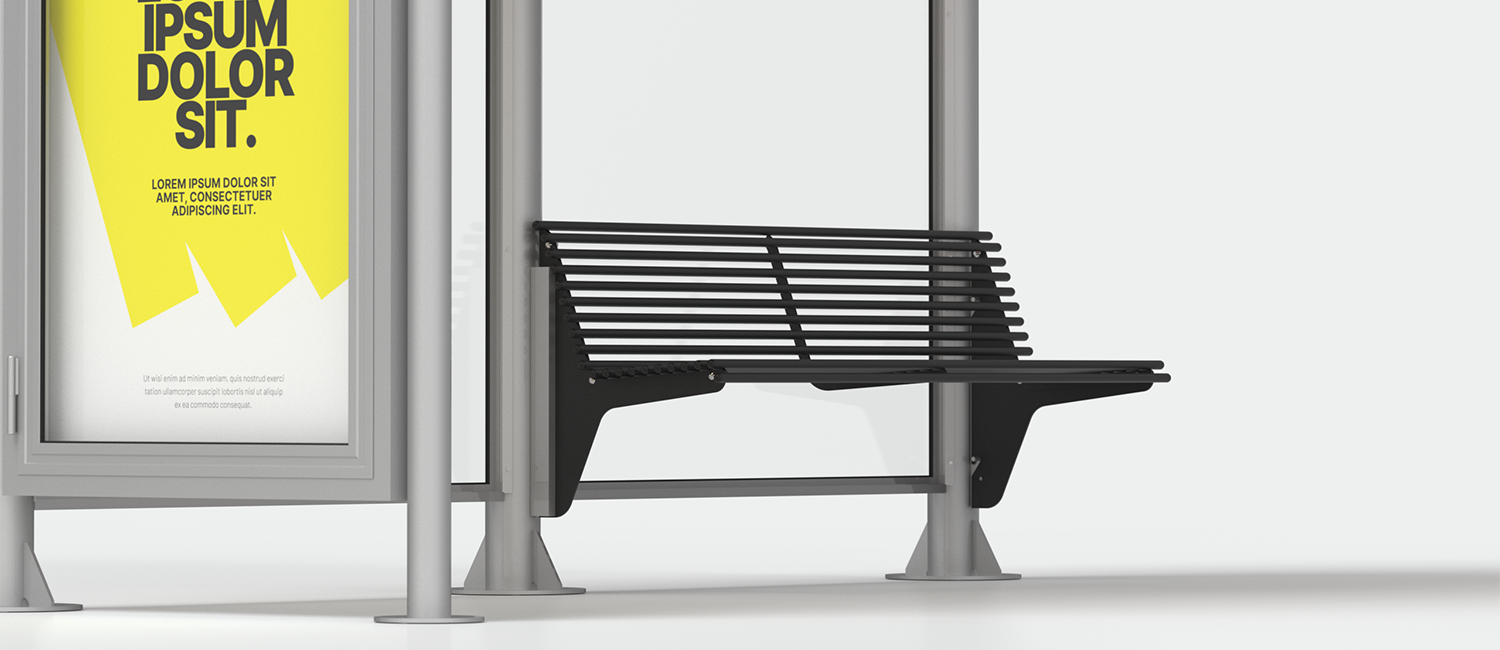

  •  Bench: Bench consisting of 2 shaped supports, made of galvanized sheet metal obtained from high definition plasma cutting; seat/backrest made with 21 profiles in galvanized steel round tube complete with PVC end caps. The profiles are welded onto special steel templates that give them the anatomical shape.

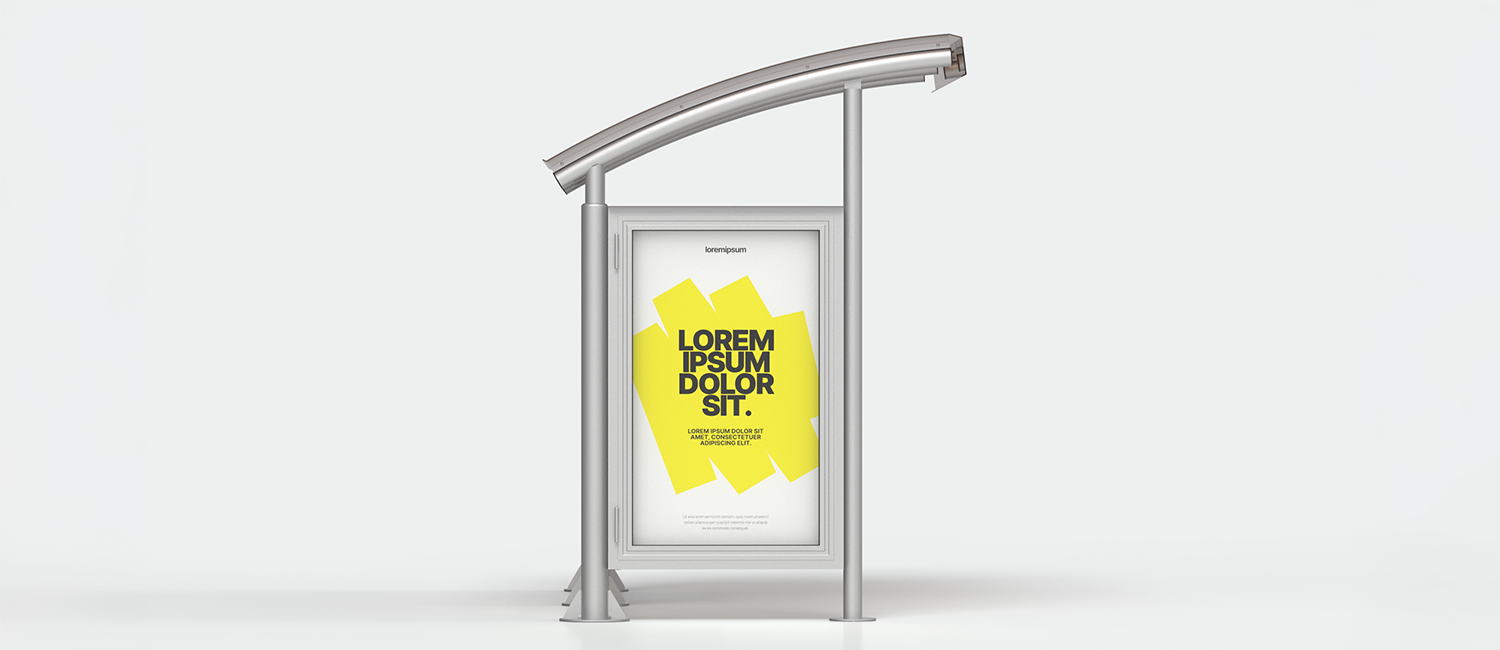

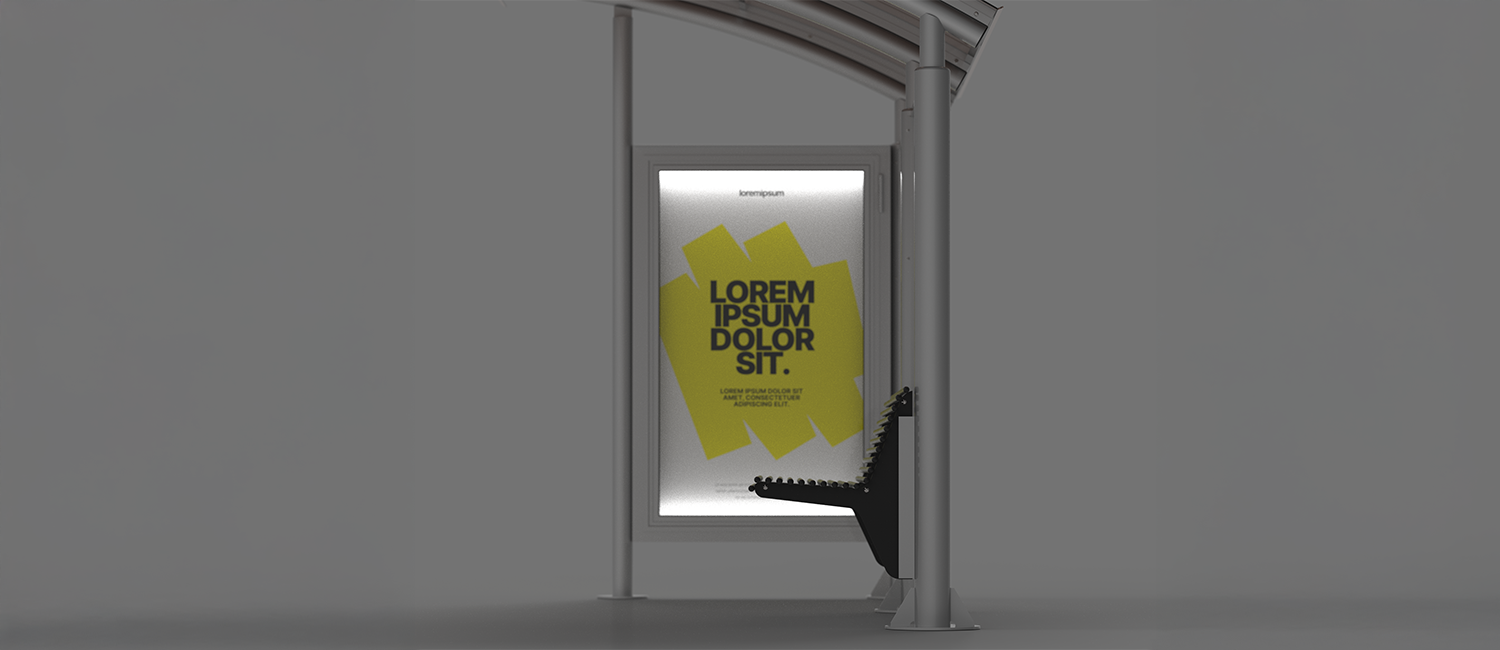

  •  Noticeboard: Left side wall (front view) consisting of a double-sided noticeboard, made of galvanized steel box; central dividing panel in galvanized sheet metal; 2 book-style opening doors made of galvanized steel profiles and key lock.
  •  Lighting: The noticeboard is equipped with an internal lighting system, consisting of 2 LED ceiling lights arranged horizontally (upper and lower part) with white light. Automatic shutdown system (when the door is opened), wiring and cables compliant with the law, and power cable with output at the base for subsequent connection to the public network.
 • Safe Anchoring: Equipped with holes at the base for fixing to the ground, preventing tipping and unwanted movements.


Customization and Resistance for every environment
To adapt to different aesthetic needs, the shelter is available in the basic finish "bright aluminum", while "gunmetal" for the bench. Furthermore, upon request it is possible to request customized colors and finishes to integrate the shelter perfectly into the surrounding environment. The structure, made of galvanized steel and painted with thermosetting powders, guarantees high resistance to atmospheric agents and a long life over time.

Request more information
To discover all the technical details of the product, you can download the detailed technical sheet.

The Space shelter is also available on the "acquistinretepa - MEPA" portal by searching for the code DIMCAR368 "in product codes"

If you would like a personalized quote or a custom finish, contact us today!

You can find the Space shelter in the following versions:

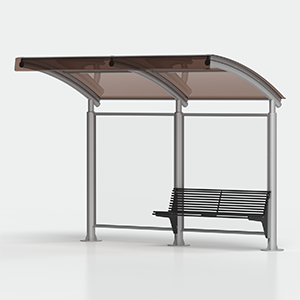

Code 368-SB: Space cantilever shelter.
Code 368: Space cantilever shelter.

immagine-tecnica-Pensilina Space

Components

  • Componente presente in questo prodotto: Illuminazione
    Light Module

Materials

  • Materiale utilizzato in questo prodotto: Acciaio zincato
    Galvanized steel
  • Materiale utilizzato in questo prodotto: Vetro
    Glass
  • Materiale utilizzato in questo prodotto: Policarbonato compatto
    Compact polycarbonate

Certifications

EN 1090: Legally Required

A bus shelter isn't just a piece of street furniture, it's a construction project and, as such, must ensure the safety of those who use it.

Since 2011, the bus shelter has been a product that must be certified by the CE Mark therefore its production is governed by the strict norm EN 1090-1 2009 + A1:2011.

In order to work in compliance with the law, it is necessary that the carpentry...

Scopri di più

Tailored for you

Discover all the available variants and accessories

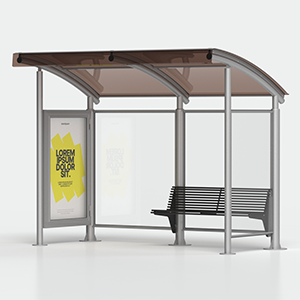

  • 368-MOD-1

     - parete laterale destra aggiuntiva
     - panchina a destra

    &nbsp;- parete laterale destra aggiuntiva<br>&nbsp;- panchina a destra

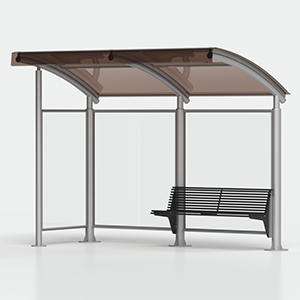

  • 368-MOD-2

     - senza bacheca
     - con parete laterale sinistra
     - con panchina a destra

    &nbsp;- senza bacheca<br>&nbsp;- con parete laterale sinistra<br>&nbsp;- con panchina a destra

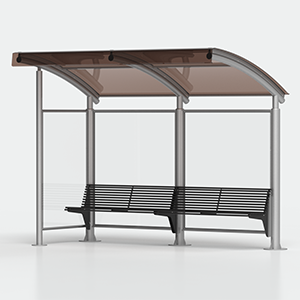

  • 368-MOD-3

     - senza bacheca
     - con parete laterale sinistra
     - con doppia panchina

    &nbsp;- senza bacheca<br>&nbsp;- con parete laterale sinistra<br>&nbsp;- con doppia panchina
  • 368-MOD-4

     - senza bacheca
     - con doppia parete laterale
     - panchina a destra

    &nbsp;- senza bacheca<br>&nbsp;- con doppia parete laterale<br>&nbsp;- panchina a destra

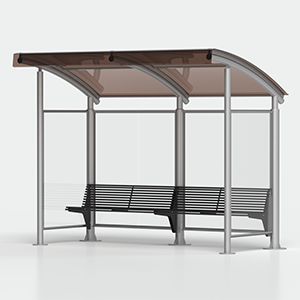

  • 368-MOD-5

     - senza bacheca
     - con doppia parete laterale
     - con panchina doppia

    &nbsp;- senza bacheca<br>&nbsp;- con doppia parete laterale<br>&nbsp;- con panchina doppia

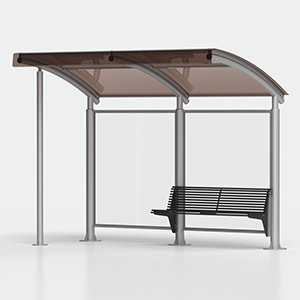

  • 368-MOD-6

     - senza bacheca
     - con montante sinistro
     - panchina a destra

    &nbsp;- senza bacheca<br>&nbsp;- con montante sinistro<br>&nbsp;- panchina a destra

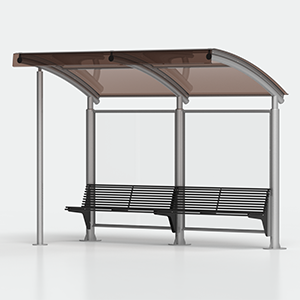

  • 368-MOD-7

     - senza bacheca
     - con montante sinistro
     - con doppia panchina

    &nbsp;- senza bacheca<br>&nbsp;- con montante sinistro<br>&nbsp;- con doppia panchina

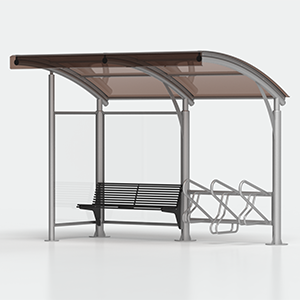

  • 368-MOD-8

     - senza bacheca
     - con parete laterale sinistra
     - panchina a sinistra
     - con rastrelliera a destra da 3 posti bici

    &nbsp;- senza bacheca<br>&nbsp;- con parete laterale sinistra<br>&nbsp;- panchina a sinistra<br>&nbsp;- con rastrelliera a destra da 3 posti bici

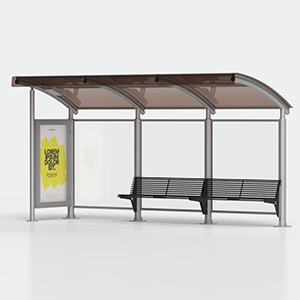

  • 368-MOD-9

     - modulo posteriore aggiuntivo
     - con doppia panchina a destra e centrale

    &nbsp;- modulo posteriore aggiuntivo<br>&nbsp;- con doppia panchina a destra e centrale
