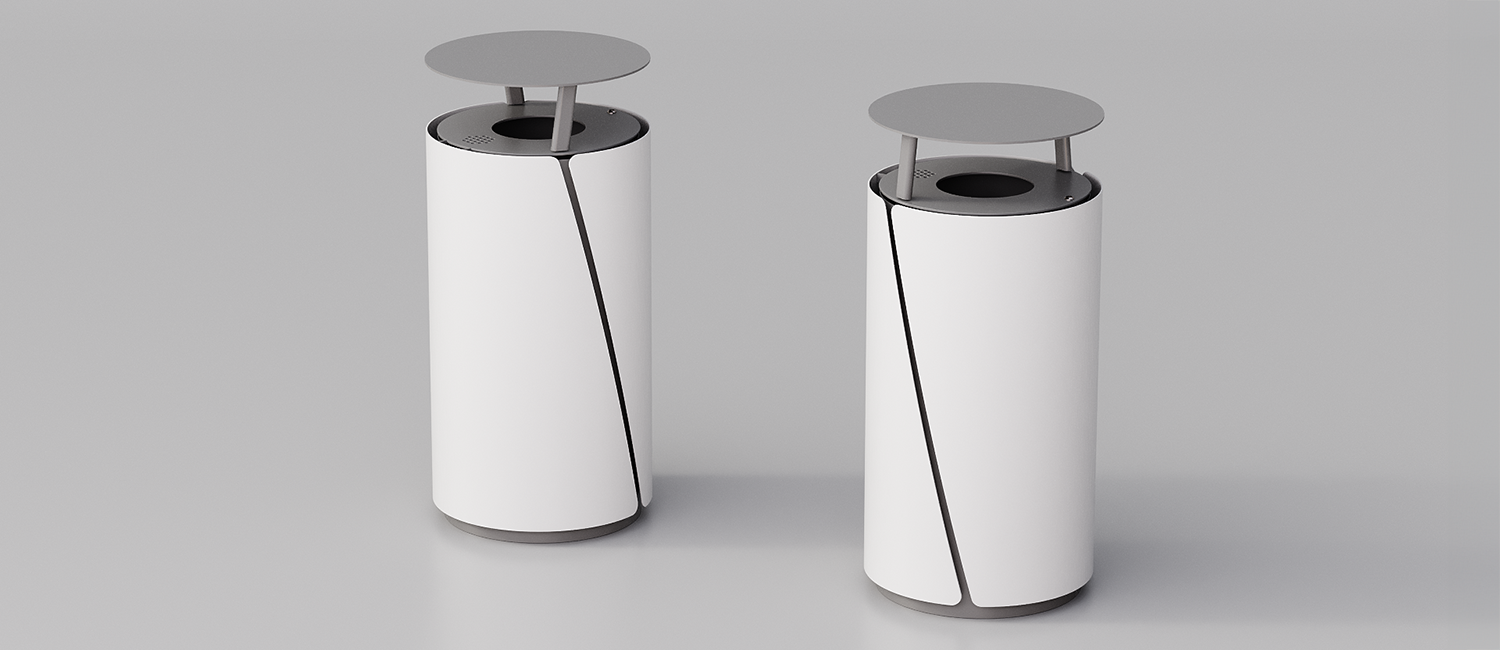

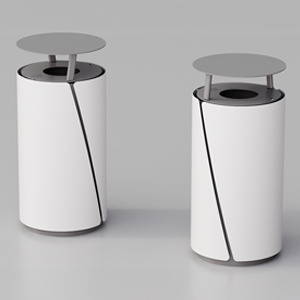

Bob large trash bin with lid and ashtray

Bob waste bin - With lid and ashtray

An elegant solution for managing urban waste. A clean design with delicate lines, easily adaptable to architectural projects, whether contemporary or historical.

Design
With a particular cylindrical shape, consisting of an internal shaft made of galvanized sheet metal and equipped with holes at the base for the drainage of rainwater. Circular upper ring made of galvanized sheet metal obtained by laser cutting, complete with circular hole for the introduction of waste. The upper part of the ring is characterized by two oval section tubes supporting the galvanized sheet metal lid. An ashtray for extinguishing cigarettes is incorporated into the lid; complete with micro-perforated plate in polished AISI 304 stainless steel sheet metal; emptying takes place using a special lever, located in the lower part, which allows the contents to be removed directly into the bag placed underneath. An automatic return spring ensures that the ashtray always remains closed. External panels with a particular shape, made of galvanized sheet metal, and characterized by an oblique cut that extends along the entire basket.

Technical Features
  • Capacity: This basket has a maximum capacity of 120 litres.
  • Sturdy Structure: Made of resistant metal, to ensure stability and durability over time, even under conditions of intense use.
  • Safe Anchoring: Designed for fixing to the ground using tie rods and expansion bolts, preventing tipping and unwanted movements.
  • Quick and Easy Assembly: The basket is supplied in an assembly kit with stainless steel screws and clear and detailed instructions, for quick and hassle-free installation.

Customization and Resistance for every environment
To adapt to different aesthetic needs, the basket is available in the basic finish "mouse grey RAL 7005" for the internal shaft, lid and ring, "pure white RAL 9010" for the panels. Furthermore, upon request it is possible to request customized colors and finishes to integrate the basket perfectly into the surrounding environment. The structure, made of galvanized steel and painted with thermosetting powders, guarantees high resistance to atmospheric agents and a long life over time.

Request more information
To discover all the technical details of the product, you can download the detailed technical sheet.

The Bob basket with lid and ashtray is also available on the "acquistinretepa - MEPA" portal by searching for the code DIMCARG515-BIS "in product codes"


If you would like a personalized quote or a custom finish, contact us today!

You can find the Bob waste bin in the following configurations:
Code G514: Bob waste bin.
Code G514-BIS: Bob waste bin with lid.
Code G515-BIS: Bob waste bin with lid and ashtray.
Code G515: Bob waste bin with ashtray.
