3-module Pinch bench with two seats and planter

Designed by Dimcar Design Department

<Three-module Pinch bench - with seat and flower box

The PINCH seating series was developed on the concept of inclusiveness, seats whose curved shape without interruption of shape generates hollows, invitations that allow the disabled person to find space next to the able-bodied person in complete freedom and autonomy. The bench, therefore, can be used 360 degrees by anyone, like a small island. The name PINCH tells the idea of ??pinching in the center the classic parallelepiped typical of the stereotype of a bench, generating those empty and full spaces that define a geometry as simple as it is iconic. The range of combinations also includes integrated modules with a flower box and the possibility of incorporating USB sockets and wireless chargers for charging mobile devices, because inclusion also means connection.

Design

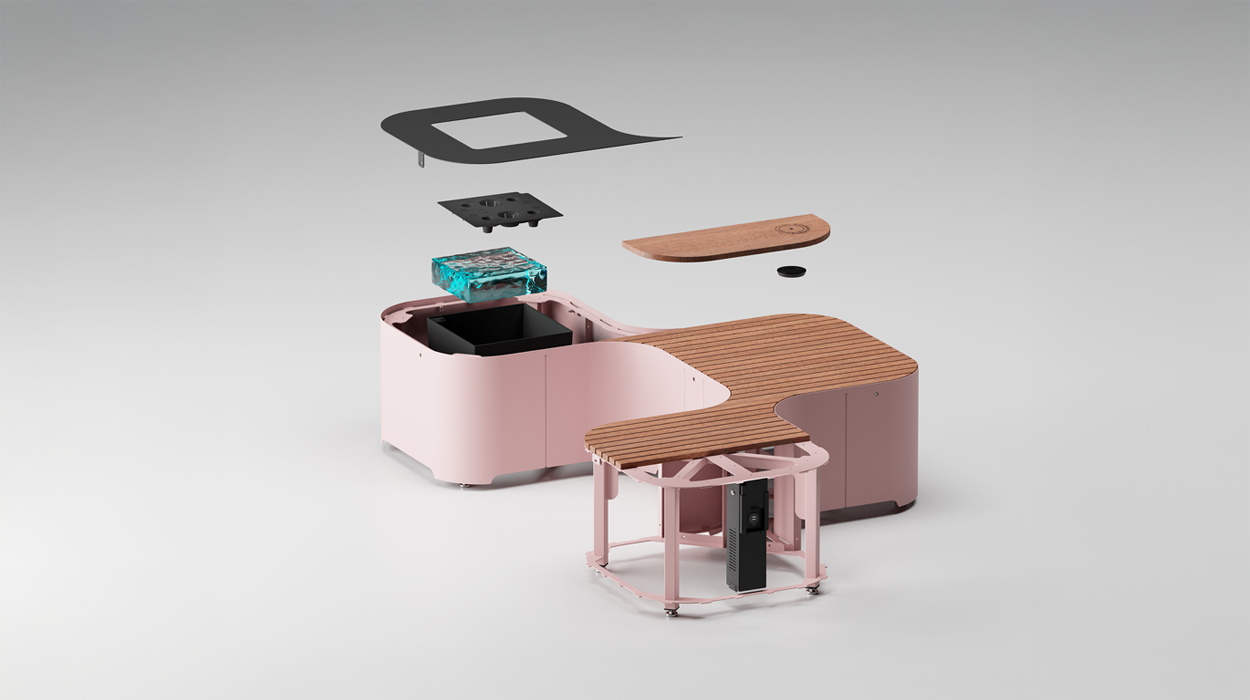

Composed of a shaped perimeter body, obtained by laser cutting and made of galvanized sheet metal, and an internal stiffening frame made of galvanized sheet metal profiles and equipped with adjustable feet at the base. Upper covering made of shaped okumè wood profiles, installed on special frames secured to the perimeter structure. The module is equipped with a USB socket with a special closing door on the side, all the electrical components are enclosed in a special compartment inside the structure. Flowerpot module, equipped with a container made of sheet metal.

Technical characteristics
  • USB socket: Module equipped with a USB socket to charge mobile devices.
  • Flowerpot: Seat composed of a flowerpot module in galvanized sheet metal.
  • Robust Structure: Made of wood and resistant steel, with thick galvanized steel sheet supports, to ensure stability and durability over time, even under heavy use.
  • Secure Anchoring: Each support is equipped with galvanized steel plates with holes for stable anchoring to the ground using screws and expansion plugs, preventing unwanted tipping and movements.
  • Ergonomic Seat: The seat, made with wooden slats, offers optimal comfort.
  • Easy and Quick Assembly: The bench is supplied in an assembly kit with stainless steel screws and clear and detailed instructions, for quick and trouble-free installation.

Customization and Resistance for every environment
To adapt to different aesthetic needs, the bench is available in the basic finish "whitish green RAL 6019" for the steel parts and "intense black RAL 9005" for the planter tray. Furthermore, upon request it is possible to request customized colors and finishes to integrate the bench perfectly into the surrounding environment. The structure, made of galvanized steel and painted with thermosetting powders, guarantees high resistance to atmospheric agents and a long life over time.

Request more information
To discover all the technical details of the product, you can download the detailed technical sheet.

The three-module Pinch bench with seat and flowerpot is also available on the "acquistinretepa - MEPA" portal by searching for the code DIMCAR608-3M-F "in product codes"


The range of combinations also includes integrated modules with a flowerpot and the possibility of incorporating USB sockets and wireless chargers for charging mobile devices, because inclusion also means connection.

You can find PINCH in the following configurations:

You can find PINCH in the following configurations:
Code 608-2M: Pinch bench with 2 modules for seats only.
Code 608-2M-F : Pinch bench with 2 modules with seat and flower box.
Code 608-3M: Pinch bench with 3 modules for seats only.
Code 608-3M-F: Pinch bench with 3 modules with seat and flower box.
Code 608-3ML: Pinch bench with 3 in-line modules for seats only.
Code 608-3ML-F: Pinch bench with 3 in-line modules with two seats and flower box.
