Gotico Notice Board

Gothic Billboard

A reliable and durable solution for urban billboards, made of metal to ensure durability over time. Easily adaptable to any urban context.

Design

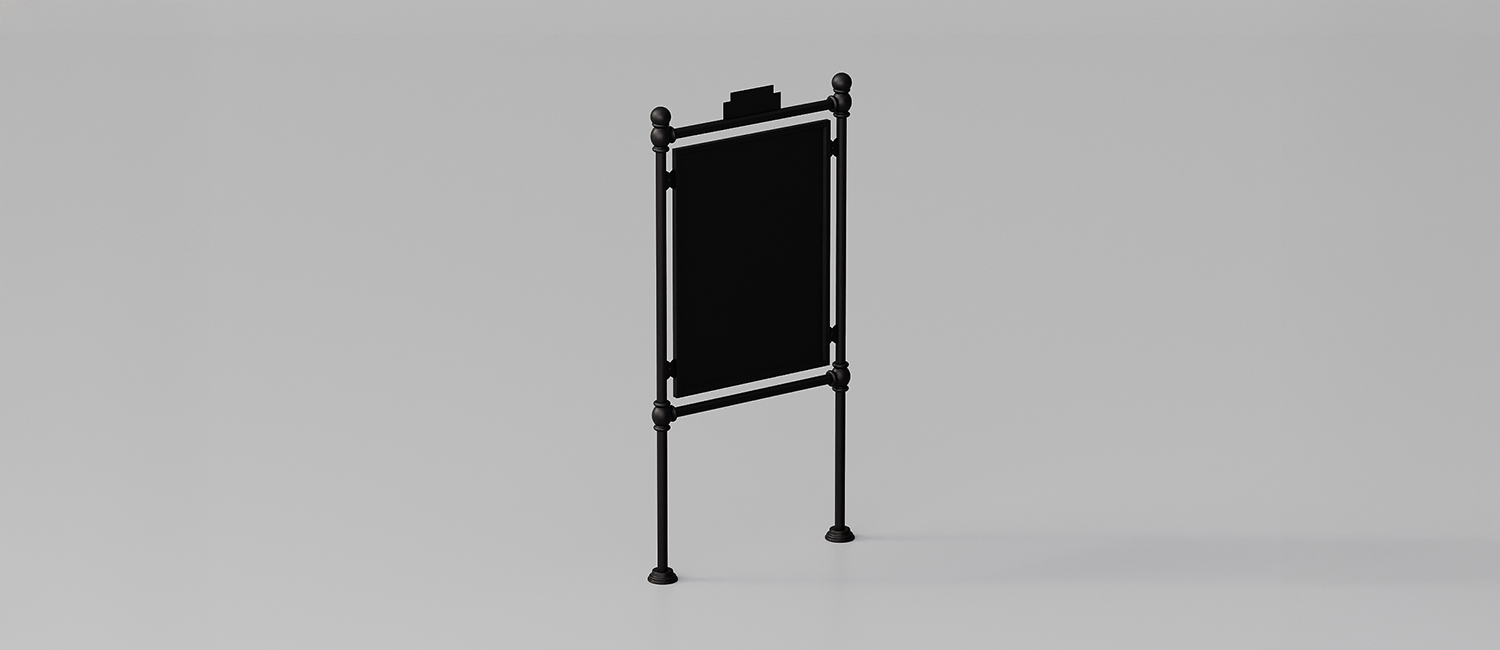

Double-sided Gothic Billboard composed of a perimeter frame made of galvanized steel box; galvanized sheet metal billboard panel applied inside the boxed profile; No. 4 galvanized sheet metal connection plates welded on the long sides of the perimeter frame. No. 2 support uprights in galvanized steel round tube adorned at the top with decorative cast iron spheres; each individual upright is equipped with No. 2 connection plates; No. 2 horizontal crosspieces in galvanized steel round tube. The upper crosspiece is equipped with a plate (removable) to affix the name of the Municipality, if applicable. No. 2 terminal elements in cast iron of ovoid shape with No. 2 holes (upper corners); No. 2 intermediate elements in cast iron of ovoid shape with No. 3 holes (lower corners). No. 2 decorative flanges at the base to cover the holes made for burial. Technical Features
  • Robust Structure: Made of resistant metal, to guarantee stability and durability over time, even in conditions of intense use.
  • Safe Anchoring: Prepared for fixing by cementing, preventing tipping and unwanted movements.
  • Easy and Quick Assembly: The scoreboard is supplied already assembled with screws and instructions, for quick and problem-free installation.

Customization and Resistance for every environment

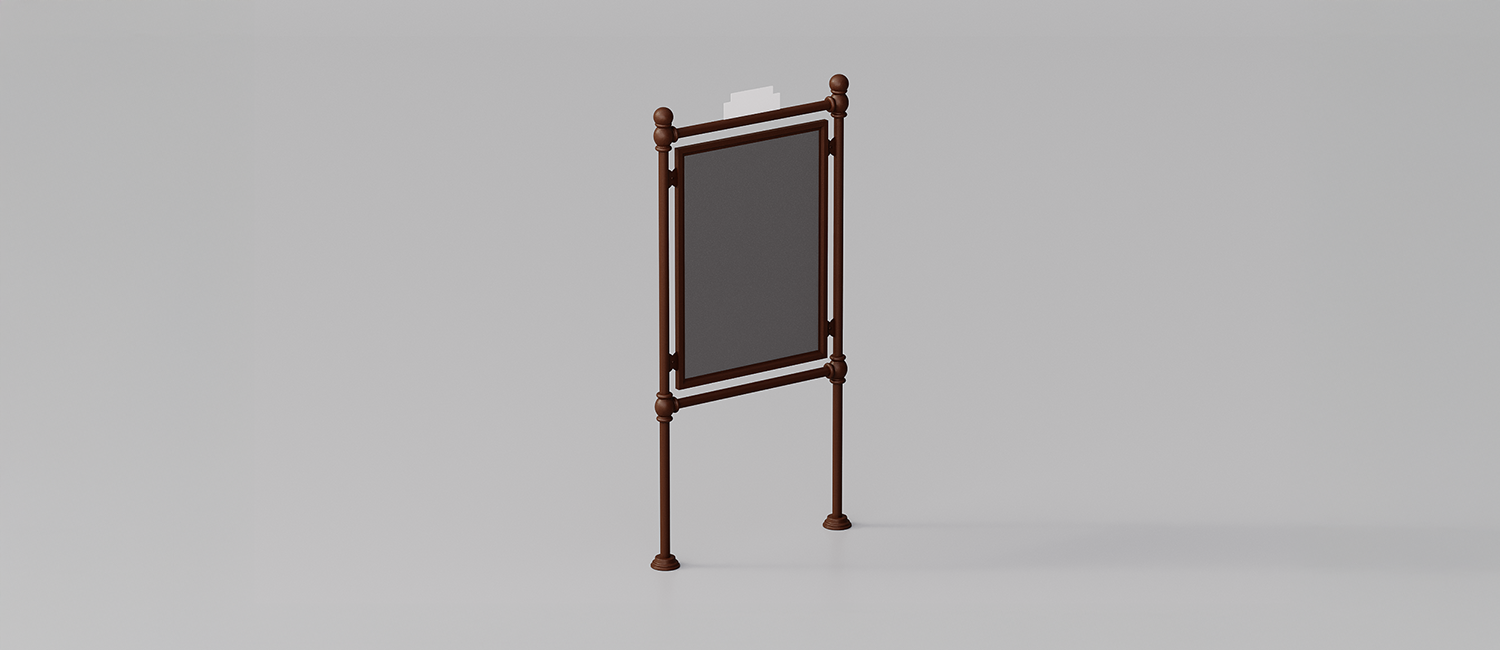

To adapt to different aesthetic needs, the scoreboard is available in the basic "gunmetal" finish. Furthermore, upon request, it is possible to request customized colors and finishes to integrate the scoreboard perfectly into the surrounding environment. The structure, made of galvanized steel and painted with thermosetting powders, guarantees high resistance to atmospheric agents and a long life over time.

Request more information
To discover all the technical details of the product, you can download the detailed technical sheet.

The Gothic scoreboard is also available on the "acquistinretepa - MEPA" portal by searching for the code DIMCAR196 "in product codes".


If you would like a personalized quote or a custom finish, contact us today!
